8125/10 100
Active3M (TC)

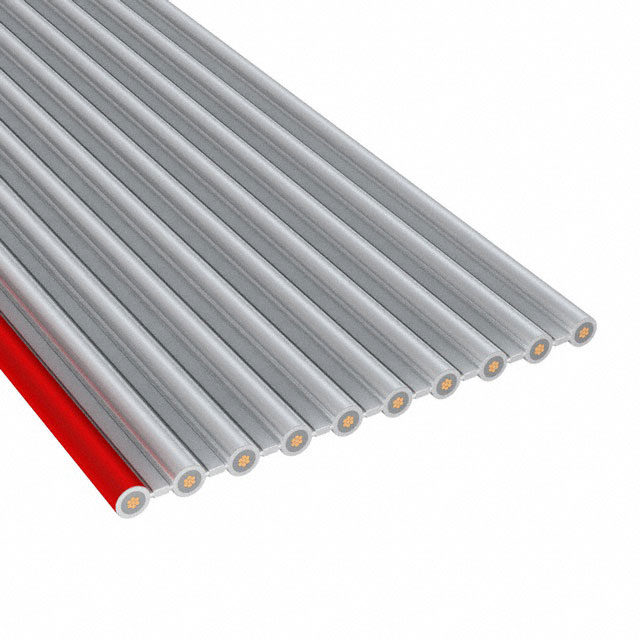

CBL RIBN 10COND 0.1 GRAY 100'
Deep-Dive with AI
Search across all available documentation for this part.
8125/10 100
Active3M (TC)
CBL RIBN 10COND 0.1 GRAY 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8125/10 100 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Zippable |
| First Conductor Mark | Red |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 1 ft, 25 ft |
| Length | 304.8 mm, 7.62 m |
| Length [x] | 3.05 m, 30.48 m |
| Length [x] | 10 ft, 100 ft |
| Number of Conductors | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Ratings | UL E42769 |
| Ribbon Thickness | 1.37 mm |
| Ribbon Thickness | 0.054 in |
| Ribbon Width | 24.59 mm |
| Ribbon Width [y] | 0.968 in |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
8125 Series
| Part | Ratings | Ribbon Width | Ribbon Width | Shielding | First Conductor Mark | Wire Gauge | Pitch [x] | Pitch [x] | Voltage | Features | Insulation Resistance | Length | Length | Conductor Material | Length [x] | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Ribbon Thickness | Ribbon Thickness | Jacket Color | Cable Type | Jacket (Insulation) Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand | Ribbon Width [y] | Ribbon Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | UL E42769 | 0.368 in | 9.35 mm | Unshielded | Red | 24 AWG | 2.54 mm | 0.1 in | 300 V | Zippable | 10 GOhm | 1 ft | 304.8 mm | Copper Tinned | 3.05 m 30.48 m | 10 ft 100 ft | -20 C | 105 ░C | 1.37 mm | 0.054 in | Gray | Flat Cable | Poly-Vinyl Chloride (PVC) | 4 | 7 | 32 AWG | ||
3M (TC) | UL E42769 | Unshielded | Red | 24 AWG | 2.54 mm | 0.1 in | 300 V | Zippable | 10 GOhm | Copper Tinned | 30.48 m | 100 ft | -20 C | 105 ░C | 1.37 mm | 0.054 in | Gray | Flat Cable | Poly-Vinyl Chloride (PVC) | 16 | 7 | 32 AWG | ||||||
3M (TC) | UL E42769 | 0.568 in | 14.43 mm | Unshielded | Red | 24 AWG | 2.54 mm | 0.1 in | 300 V | Zippable | 10 GOhm | 50 ft | 15.24 m | Copper Tinned | 3.05 m 30.48 m | 10 ft 100 ft | -20 C | 105 ░C | 1.37 mm | 0.054 in | Gray | Flat Cable | Poly-Vinyl Chloride (PVC) | 6 | 7 | 32 AWG | ||
3M (TC) | UL E42769 | 24.59 mm | Unshielded | Red | 24 AWG | 2.54 mm | 0.1 in | 300 V | Zippable | 10 GOhm | 1 ft 25 ft | 7.62 m 304.8 mm | Copper Tinned | 3.05 m 30.48 m | 10 ft 100 ft | -20 C | 105 ░C | 1.37 mm | 0.054 in | Gray | Flat Cable | Poly-Vinyl Chloride (PVC) | 10 | 7 | 32 AWG | 0.968 in | ||
3M (TC) | UL E42769 | 0.768 " | Unshielded | Red | 24 AWG | 2.54 mm | 0.1 in | 300 V | Zippable | 10 GOhm | 1 ft 25 ft | 7.62 m 304.8 mm | Copper Tinned | 3.05 m 30.48 m | 10 ft 100 ft | -20 C | 105 ░C | 1.37 mm | 0.054 in | Gray | Flat Cable | Poly-Vinyl Chloride (PVC) | 8 | 7 | 32 AWG | 19.51 mm | ||
3M (TC) | UL E42769 | Unshielded | Red | 24 AWG | 2.54 mm | 0.1 in | 300 V | Zippable | 10 GOhm | Copper Tinned | 30.48 m | 100 ft | -20 C | 105 ░C | 1.37 mm | 0.054 in | Gray | Flat Cable | Poly-Vinyl Chloride (PVC) | 26 | 7 | 32 AWG | ||||||
3M (TC) | UL E42769 | 1.968 " | 49.99 mm | Unshielded | Red | 24 AWG | 2.54 mm | 0.1 in | 300 V | Zippable | 10 GOhm | Copper Tinned | 30.48 m | 100 ft | -20 C | 105 ░C | 1.37 mm | 0.054 in | Gray | Flat Cable | Poly-Vinyl Chloride (PVC) | 20 | 7 | 32 AWG | ||||
3M (TC) | UL E42769 | Unshielded | Red | 24 AWG | 2.54 mm | 0.1 in | 300 V | Zippable | 10 GOhm | Copper Tinned | 30.48 m | 100 ft | -20 C | 105 ░C | 1.37 mm | 0.054 in | Gray | Flat Cable | Poly-Vinyl Chloride (PVC) | 5 | 7 | 32 AWG | ||||||
3M (TC) | UL E42769 | 1.168 in | 29.67 mm | Unshielded | Red | 24 AWG | 2.54 mm | 0.1 in | 300 V | Zippable | 10 GOhm | Copper Tinned | 30.48 m | 100 ft | -20 C | 105 ░C | 1.37 mm | 0.054 in | Gray | Flat Cable | Poly-Vinyl Chloride (PVC) | 12 | 7 | 32 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 80.95 | |
| 1 | $ 5.65 | |||
| 1 | $ 37.51 | |||
| 5 | $ 66.53 | |||
| 5 | $ 30.95 | |||
| 5 | $ 4.70 | |||
| 10 | $ 28.46 | |||
| 10 | $ 60.96 | |||
| 10 | $ 4.33 | |||
| 25 | $ 54.40 | |||
| 25 | $ 3.90 | |||
| 25 | $ 25.44 | |||
| 50 | $ 23.21 | |||
| 50 | $ 3.58 | |||
| 50 | $ 49.81 | |||
| 100 | $ 21.38 | |||
| 100 | $ 45.55 | |||
| 100 | $ 3.31 | |||
| Spool | 1 | $ 228.46 | ||
| 2 | $ 250.34 | |||
| 3 | $ 236.31 | |||
| 5 | $ 181.67 | |||
| 7 | $ 209.55 | |||
| 10 | $ 165.15 | |||
| 25 | $ 161.54 | |||
| 50 | $ 161.54 | |||
Description
General part information
8125 Series
Flat Ribbon Cable Gray 10 Conductors 0.100" (2.54mm) Flat Cable 100.0' (30.48m)
