634-015-274-030

Active

EDAC Inc.

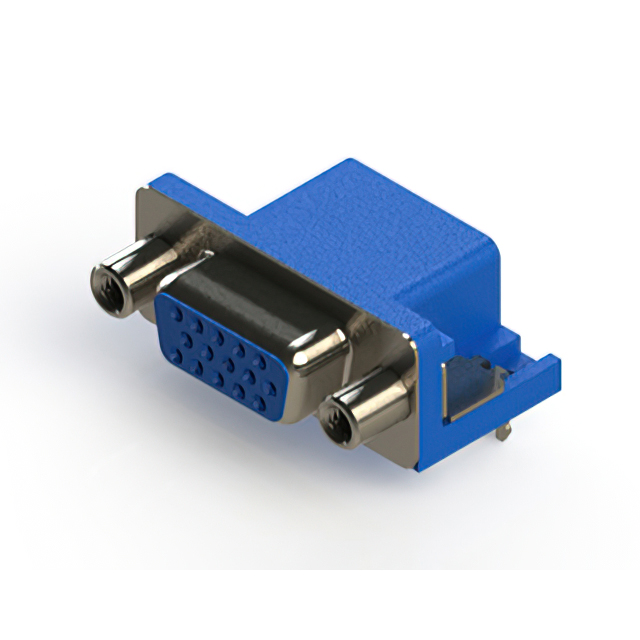

634 SERIES RIGHT ANGLE D-SUB REC

634-015-274-030

Active

EDAC Inc.

634 SERIES RIGHT ANGLE D-SUB REC

Description Specifications Series Pricing CAD Documents

Description

General part information

634-015 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	634-015-274-030

Backset Spacing	0.35 in
Color	Blue
Connector Layout	High Density, DE, E
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock, Mounting Brackets
Finish	Nickel Plated
Flange Feature	Mating Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	15
Number of Rows	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	1
Termination	Solder

634-015 Series

...

Part	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Features	Contact Type	Connector Style	Current Rating (Per Contact)	Number of Positions	Shell Size	Connector Layout	Flange Feature	Shell Material	Finish	Termination	Backset Spacing	Connector Type	Material Flammability Rating	Contact Finish	Color	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material
EDAC Inc. 634-015-274-512	3	Board Edge Right Angle Through Hole	0	Flash	Flash	Mounting Brackets Shielded	Signal	D-Sub High Density	3 A	15	1	DE E High Density	Housing Shell (4-40)	Steel	Nickel Plated	Solder	0.35 in	Female Sockets Receptacle	UL94 V-0	Gold	Blue	Copper Alloy	125 °C	-55 °C	Polyester Thermoplastic
EDAC Inc. 634-015-263-542	3	Board Edge Right Angle Through Hole	0	Flash	Flash	Board Lock Mounting Brackets Shielded	Signal	D-Sub High Density	3 A	15	1	DE E High Density	Housing Shell (4-40)	Steel	Nickel Plated	Solder	0.35 in	Female Sockets Receptacle	UL94 V-0	Gold		Copper Alloy	125 °C	-55 °C	Polyester Thermoplastic
EDAC Inc. 634-015-363-040	3	Board Edge Right Angle Through Hole	15 µin			Board Lock Mounting Brackets Shielded	Signal	D-Sub High Density	3 A	15	1	DE E High Density	Mating Side (4-40)	Steel	Nickel Plated	Solder	0.35 in	Female Sockets Receptacle	UL94 V-0	Gold		Copper Alloy	85 °C	-55 °C	Polyester Thermoplastic
EDAC Inc. 634-015-263-555	3	Board Edge Right Angle Through Hole	0	Flash	Flash	Board Lock Mounting Brackets Shielded	Signal	D-Sub High Density	3 A	15	1	DE E High Density	Housing Shell (M3)	Steel	Nickel Plated	Solder	0.35 in	Female Sockets Receptacle	UL94 V-0	Gold		Copper Alloy	125 °C	-55 °C	Polyester Thermoplastic
EDAC Inc. 634-015-274-030	3	Board Edge Right Angle Through Hole	0	Flash	Flash	Board Lock Mounting Brackets Shielded	Signal	D-Sub High Density	3 A	15	1	DE E High Density	Mating Side (4-40)	Steel	Nickel Plated	Solder	0.35 in	Female Sockets Receptacle	UL94 V-0	Gold	Blue	Copper Alloy	85 °C	-55 °C	Polyester Thermoplastic
EDAC Inc. 634-015-363-540	3	Board Edge Right Angle Through Hole	15 µin			Board Lock Mounting Brackets Shielded	Signal	D-Sub High Density	3 A	15	1	DE E High Density	Mating Side (4-40)	Steel	Nickel Plated	Solder	0.35 in	Female Sockets Receptacle	UL94 V-0	Gold		Copper Alloy	125 °C	-55 °C	Polyester Thermoplastic
EDAC Inc. 634-015-363-033	3	Board Edge Right Angle Through Hole	15 µin			Board Lock Mounting Brackets Shielded	Signal	D-Sub High Density	3 A	15	1	DE E High Density	Female Screwlock (4-40) Mating Side	Steel	Nickel Plated	Solder	0.35 in	Female Sockets Receptacle	UL94 V-0	Gold		Copper Alloy	85 °C	-55 °C	Polyester Thermoplastic
EDAC Inc. 634-015-274-051	3	Board Edge Right Angle Through Hole	0	Flash	Flash	Mounting Brackets Shielded	Signal	D-Sub High Density	3 A	15	1	DE E High Density	Housing Shell (Unthreaded)	Steel	Nickel Plated	Solder	0.35 in	Female Sockets Receptacle	UL94 V-0	Gold	Blue	Copper Alloy	85 °C	-55 °C	Polyester Thermoplastic
EDAC Inc. 634-015-663-012	3	Board Edge Right Angle Through Hole	30 µin			Mounting Brackets Shielded	Signal	D-Sub High Density	3 A	15	1	DE E High Density	Housing Shell (4-40)	Steel	Nickel Plated	Solder	0.35 in	Female Sockets Receptacle	UL94 V-0	Gold		Copper Alloy	85 °C	-55 °C	Polyester Thermoplastic
EDAC Inc. 634-015-263-545	3	Board Edge Right Angle Through Hole	0	Flash	Flash	Board Lock Mounting Brackets Shielded	Signal	D-Sub High Density	3 A	15	1	DE E High Density	Housing Shell (M3)	Steel	Nickel Plated	Solder	0.35 in	Female Sockets Receptacle	UL94 V-0	Gold		Copper Alloy	125 °C	-55 °C	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

634-015-274-030 | Datasheet
