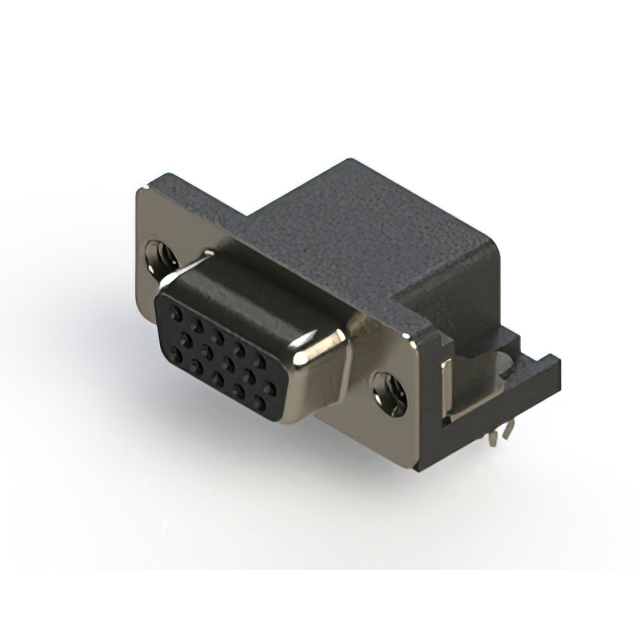

634-015-263-542
ActiveEDAC Inc.
634 SERIES RIGHT ANGLE D-SUB REC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
634-015-263-542
ActiveEDAC Inc.
634 SERIES RIGHT ANGLE D-SUB REC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 634-015-263-542 |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Mounting Brackets, Shielded, Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
634-015 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Type | Termination | Material Flammability Rating | Features | Shell Material, Finish | Contact Material | Dielectric Material | Contact Finish Thickness | Flange Feature | Number of Positions | Number of Rows | Connector Style | Backset Spacing | Backset Spacing | Connector Type | Color | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | Housing/Shell (4-40) | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Blue | Gold | DE E | 1 | High Density | 3 A | ||
EDAC Inc. | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | Housing/Shell (4-40) | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Gold | DE E | 1 | High Density | 3 A | |||
EDAC Inc. | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | 4-40 | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Gold | DE E | 1 | High Density | 3 A | 15 µin | 0.38 µm | ||
EDAC Inc. | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | Housing/Shell (M3) | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Gold | DE E | 1 | High Density | 3 A | |||
EDAC Inc. | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | 4-40 | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Blue | Gold | DE E | 1 | High Density | 3 A | ||
EDAC Inc. | -55 °C | 125 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | 4-40 | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Gold | DE E | 1 | High Density | 3 A | 15 µin | 0.38 µm | ||
EDAC Inc. | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Female Screwlock (4-40) Mating Side | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Gold | DE E | 1 | High Density | 3 A | 15 µin | 0.38 µm | ||
EDAC Inc. | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | Housing/Shell (Unthreaded) | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Blue | Gold | DE E | 1 | High Density | 3 A | ||
EDAC Inc. | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | Housing/Shell (4-40) | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Gold | DE E | 1 | High Density | 3 A | |||
EDAC Inc. | -55 °C | 85 °C | Board Edge Right Angle Through Hole | Signal | Solder | UL94 V-0 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | Copper Alloy | Polyester Thermoplastic | Flash | Housing/Shell (M3) | 15 | 3 | D-Sub High Density | 8.89 mm | 0.35 in | Receptacle Female Sockets | Blue | Gold | DE E | 1 | High Density | 3 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 2.54 | |
Description
General part information
634-015 Series
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
