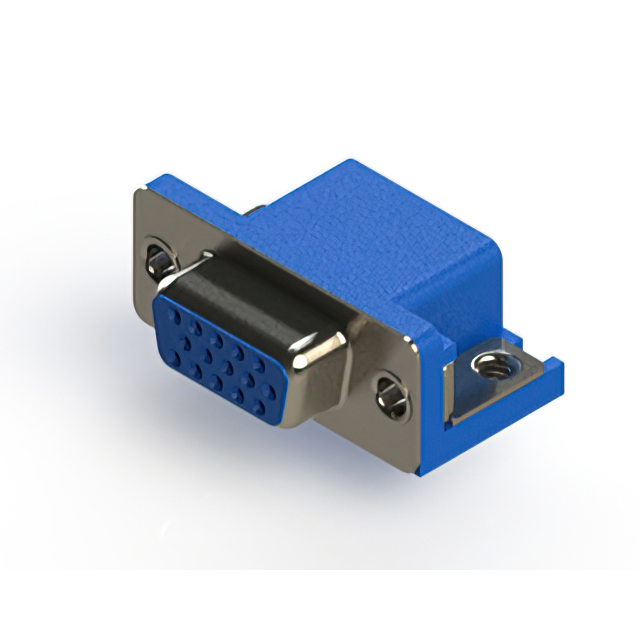

634-015-274-051

Active

EDAC Inc.

634 SERIES RIGHT ANGLE D-SUB REC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

634-015-274-051

Active

EDAC Inc.

634 SERIES RIGHT ANGLE D-SUB REC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	634-015-274-051

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Blue
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Mounting Brackets
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

634-015 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Termination	Material Flammability Rating	Features	Shell Material, Finish	Contact Material	Dielectric Material	Contact Finish Thickness	Flange Feature	Number of Positions	Number of Rows	Connector Style	Backset Spacing	Backset Spacing	Connector Type	Color	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 634-015-274-512	-55 °C	125 °C	Board Edge Right Angle Through Hole	Signal	Solder	UL94 V-0	Mounting Brackets Shielded	Nickel Plated Steel	Copper Alloy	Polyester Thermoplastic	Flash	Housing/Shell (4-40)	15	3	D-Sub High Density	8.89 mm	0.35 in	Receptacle Female Sockets	Blue	Gold	DE E	1	High Density	3 A
EDAC Inc. 634-015-263-542	-55 °C	125 °C	Board Edge Right Angle Through Hole	Signal	Solder	UL94 V-0	Board Lock Mounting Brackets Shielded	Nickel Plated Steel	Copper Alloy	Polyester Thermoplastic	Flash	Housing/Shell (4-40)	15	3	D-Sub High Density	8.89 mm	0.35 in	Receptacle Female Sockets		Gold	DE E	1	High Density	3 A
EDAC Inc. 634-015-363-040	-55 °C	85 °C	Board Edge Right Angle Through Hole	Signal	Solder	UL94 V-0	Board Lock Mounting Brackets Shielded	Nickel Plated Steel	Copper Alloy	Polyester Thermoplastic		4-40	15	3	D-Sub High Density	8.89 mm	0.35 in	Receptacle Female Sockets		Gold	DE E	1	High Density	3 A	15 µin	0.38 µm
EDAC Inc. 634-015-263-555	-55 °C	125 °C	Board Edge Right Angle Through Hole	Signal	Solder	UL94 V-0	Board Lock Mounting Brackets Shielded	Nickel Plated Steel	Copper Alloy	Polyester Thermoplastic	Flash	Housing/Shell (M3)	15	3	D-Sub High Density	8.89 mm	0.35 in	Receptacle Female Sockets		Gold	DE E	1	High Density	3 A
EDAC Inc. 634-015-274-030	-55 °C	85 °C	Board Edge Right Angle Through Hole	Signal	Solder	UL94 V-0	Board Lock Mounting Brackets Shielded	Nickel Plated Steel	Copper Alloy	Polyester Thermoplastic	Flash	4-40	15	3	D-Sub High Density	8.89 mm	0.35 in	Receptacle Female Sockets	Blue	Gold	DE E	1	High Density	3 A
EDAC Inc. 634-015-363-540	-55 °C	125 °C	Board Edge Right Angle Through Hole	Signal	Solder	UL94 V-0	Board Lock Mounting Brackets Shielded	Nickel Plated Steel	Copper Alloy	Polyester Thermoplastic		4-40	15	3	D-Sub High Density	8.89 mm	0.35 in	Receptacle Female Sockets		Gold	DE E	1	High Density	3 A	15 µin	0.38 µm
EDAC Inc. 634-015-363-033	-55 °C	85 °C	Board Edge Right Angle Through Hole	Signal	Solder	UL94 V-0	Board Lock Mounting Brackets Shielded	Nickel Plated Steel	Copper Alloy	Polyester Thermoplastic		Female Screwlock (4-40) Mating Side	15	3	D-Sub High Density	8.89 mm	0.35 in	Receptacle Female Sockets		Gold	DE E	1	High Density	3 A	15 µin	0.38 µm
EDAC Inc. 634-015-274-051	-55 °C	85 °C	Board Edge Right Angle Through Hole	Signal	Solder	UL94 V-0	Mounting Brackets Shielded	Nickel Plated Steel	Copper Alloy	Polyester Thermoplastic	Flash	Housing/Shell (Unthreaded)	15	3	D-Sub High Density	8.89 mm	0.35 in	Receptacle Female Sockets	Blue	Gold	DE E	1	High Density	3 A
EDAC Inc. 634-015-263-042	-55 °C	85 °C	Board Edge Right Angle Through Hole	Signal	Solder	UL94 V-0	Board Lock Mounting Brackets Shielded	Nickel Plated Steel	Copper Alloy	Polyester Thermoplastic	Flash	Housing/Shell (4-40)	15	3	D-Sub High Density	8.89 mm	0.35 in	Receptacle Female Sockets		Gold	DE E	1	High Density	3 A
EDAC Inc. 634-015-274-035	-55 °C	85 °C	Board Edge Right Angle Through Hole	Signal	Solder	UL94 V-0	Board Lock Mounting Brackets Shielded	Nickel Plated Steel	Copper Alloy	Polyester Thermoplastic	Flash	Housing/Shell (M3)	15	3	D-Sub High Density	8.89 mm	0.35 in	Receptacle Female Sockets	Blue	Gold	DE E	1	High Density	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 2.29

Description

General part information

634-015 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
