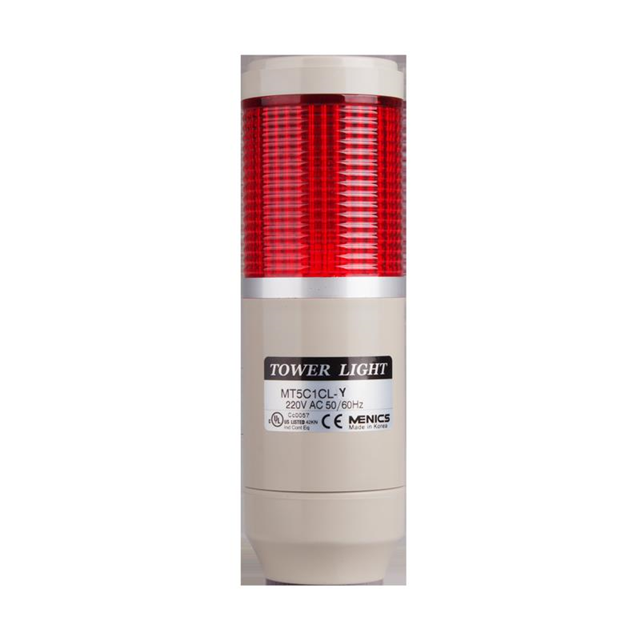

MT5C1CL
ActiveMenics
COMPLETE UNIT RED INCAND FLASH
Deep-Dive with AI
Search across all available documentation for this part.
MT5C1CL
ActiveMenics
COMPLETE UNIT RED INCAND FLASH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MT5C1CL | - Series |
|---|---|---|
| Features | - | Pushbutton Control, Selector Control |
| Function - Lighting | Steady, Flashing | Steady, Flashing |
| Ingress Protection | IP54 - Dust Protected, Water Resistant | IP65 - Dust Tight, Water Resistant, IP54 - Dust Protected, Water Resistant |
| Lamp Type | Incandescent | Incandescent |
| Light Color | Red | Green, Red, Yellow, Blue, Clear |
| Number of Stacks | 1 | 1 - 5 |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -15 °C | -15 °C |
| Termination Style | Wire Leads | Cable with Connector, Wire Leads, Connector |
| Type | Complete Unit | Complete Unit, Optical Element |
| Voltage - Supply | 220 VAC | 12 - 220 VAC/DC |
| Voltage - Supply | - | 240 VAC |
| Voltage - Supply | - | 90 VAC |
- Series
COMPLETE UNIT GRN LED STEADY
| Part | Light Color | Operating Temperature [Min] | Operating Temperature [Max] | Function - Lighting | Type | Number of Stacks | Voltage - Supply | Features | Termination Style | Ingress Protection | Voltage - Supply [Max] | Voltage - Supply [Min] | Lamp Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Menics ATEP-G | Green | -15 °C | 40 °C | Steady | Complete Unit | 1 | 110 VAC/DC | Pushbutton Control | Cable with Connector | ||||
Menics PTM-A-102-RYG-B | Green, Red, Yellow | -15 °C | 40 °C | Steady | Complete Unit | 1 | 24 VAC | Wire Leads | IP65 - Dust Tight, Water Resistant | ||||
Menics PTM-02-RBG | Blue, Green, Red | -15 °C | 40 °C | Flashing, Steady | Optical Element | 1 | Connector | IP65 - Dust Tight, Water Resistant | |||||
Menics ATEP-R | Red | -15 °C | 40 °C | Flashing | Complete Unit | 1 | 110 VAC/DC | Pushbutton Control | Cable with Connector | ||||
Menics PTM-A-1FF-RYG-B | Green, Red, Yellow | -15 °C | 40 °C | Steady | Complete Unit | 1 | Wire Leads | IP65 - Dust Tight, Water Resistant | 240 VAC | 90 VAC | |||
Menics MT4B5AL | Blue, Clear, Green, Red, Yellow | -15 °C | 40 °C | Steady | Complete Unit | 5 | 24 VAC | Wire Leads | IP54 - Dust Protected, Water Resistant | Incandescent | |||
Menics MT4B2AL | Green, Red | -15 °C | 40 °C | Steady | Complete Unit | 2 | 24 VAC | Wire Leads | IP54 - Dust Protected, Water Resistant | Incandescent | |||
Menics ATES-G | Green | -15 °C | 40 °C | Steady | Complete Unit | 1 | 110 VAC/DC | Selector Control | Cable with Connector | ||||
Menics PTM-02-RYG | Green, Red, Yellow | -15 °C | 40 °C | Flashing, Steady | Optical Element | 1 | Connector | IP65 - Dust Tight, Water Resistant | |||||
Menics MT5C1CL | Red | -15 °C | 40 °C | Flashing, Steady | Complete Unit | 1 | 220 VAC | Wire Leads | IP54 - Dust Protected, Water Resistant | Incandescent |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 50.60 | |
Description
General part information
- Series
Stack Light Complete Unit Red Incandescent Wire Leads
