Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

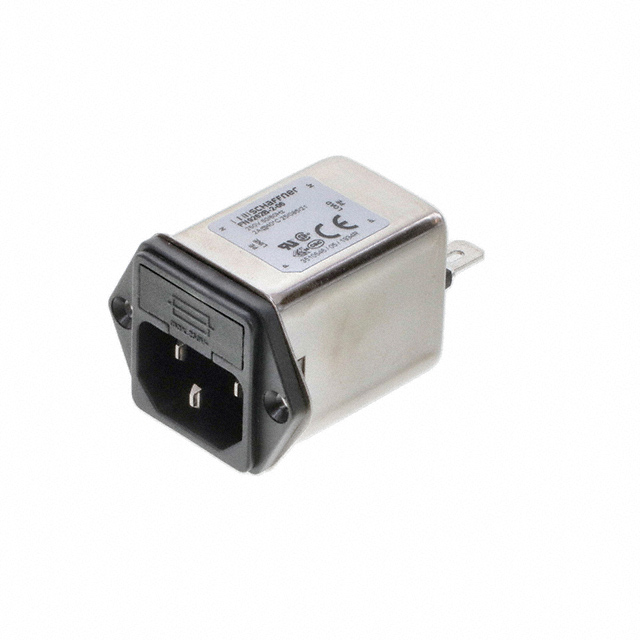

Specification	FN9262B-2-06

Accomodates a Fuse	True
Approval Agency	UL, ENEC, CQC, CSA, CE
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Filter	2 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29 mm
Panel Cutout Dimensions [y]	33 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

Schaffner FN9262 Series

AC Power Entry Modules 4A 7mH 250VAC SnapIn SafetyVersion

Part	Approval Agency	Fuse Holder, Drawer	Current Rating - Filter	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Material Flammability Rating	Mounting Type	Ingress Protection	Filter Type	Connector Style	Connector Type	Termination	Termination	Termination	Features	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]
TE Connectivity Raychem Cable Protection FN9262-1-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	1 A	33 mm	29 mm	UL94 V-0	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection FN9262SA-4-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	4 A	33 mm	29.5 mm	UL94 V-0	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Safety Version	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9262SA-1-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	1 A	33 mm	29.5 mm	UL94 V-0	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Safety Version	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9262A-4-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	4 A	33 mm	29 mm	UL94 V-0	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Safety Version
TE Connectivity Raychem Cable Protection FN9262A-2-07	CQC CSA ENEC UL	Fuse Holder Twin Fused	2 A	33 mm	29 mm	UL94 V-0	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module			Wire Leads	Safety Version
TE Connectivity Raychem Cable Protection FN9262B-2-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	2 A	33 mm	29 mm	UL94 V-0	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection FN9262SB-10-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	10 A	33 mm	29.5 mm	UL94 V-0	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect		1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9262B-10-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	10 A	33 mm	29 mm	UL94 V-0	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection FN9262A-10-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	10 A	33 mm	29 mm	UL94 V-0	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Safety Version
TE Connectivity Raychem Cable Protection FN9262S-2-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	2 A	33 mm	29.5 mm	UL94 V-0	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect		1.5 mm	0.6 mm	0.024 in	0.059 in
