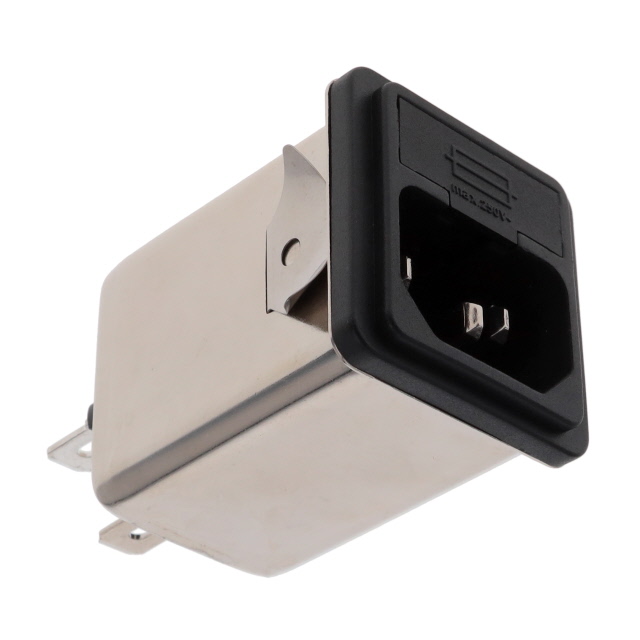

FN9262SA-1-06

Active

TE Connectivity Raychem Cable Protection

AC POWER ENTRY MODULES 1A 40MH 250VAC SNAPIN SAFETYVERSION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

FN9262SA-1-06

Active

TE Connectivity Raychem Cable Protection

AC POWER ENTRY MODULES 1A 40MH 250VAC SNAPIN SAFETYVERSION

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN9262SA-1-06

Accomodates a Fuse	True
Approval Agency	UL, ENEC, CQC, CSA, CE
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Filter	1 A
Features	Safety Version
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.5 mm
Panel Cutout Dimensions [y]	33 mm
Panel Thickness [Max]	1.5 mm
Panel Thickness [Max]	0.059 in
Panel Thickness [Min]	0.6 mm
Panel Thickness [Min]	0.024 in
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

Schaffner FN9262 Series

AC Power Entry Modules 4A 7mH 250VAC SnapIn SafetyVersion

Part	Approval Agency	Fuse Holder, Drawer	Current Rating - Filter	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Material Flammability Rating	Mounting Type	Ingress Protection	Filter Type	Connector Style	Connector Type	Termination	Termination	Termination	Features	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]
TE Connectivity Raychem Cable Protection FN9262-1-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	1 A	33 mm	29 mm	UL94 V-0	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection FN9262SA-4-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	4 A	33 mm	29.5 mm	UL94 V-0	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Safety Version	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9262SA-1-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	1 A	33 mm	29.5 mm	UL94 V-0	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Safety Version	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9262A-4-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	4 A	33 mm	29 mm	UL94 V-0	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Safety Version
TE Connectivity Raychem Cable Protection FN9262A-2-07	CQC CSA ENEC UL	Fuse Holder Twin Fused	2 A	33 mm	29 mm	UL94 V-0	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module			Wire Leads	Safety Version
TE Connectivity Raychem Cable Protection FN9262B-2-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	2 A	33 mm	29 mm	UL94 V-0	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection FN9262SB-10-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	10 A	33 mm	29.5 mm	UL94 V-0	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect		1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9262B-10-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	10 A	33 mm	29 mm	UL94 V-0	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection FN9262A-10-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	10 A	33 mm	29 mm	UL94 V-0	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	Safety Version
TE Connectivity Raychem Cable Protection FN9262S-2-06	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	2 A	33 mm	29.5 mm	UL94 V-0	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	IEC 320-C14	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect		1.5 mm	0.6 mm	0.024 in	0.059 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 17.08
		10	$ 13.17
		25	$ 12.05
Sager	N/A	1	$ 13.97
		26	$ 13.21
		52	$ 12.85
		104	$ 12.52
		535	$ 11.69

Description

General part information

Schaffner FN9262 Series

AC Power Entry Modules 4A 7mH 250VAC SnapIn SafetyVersion
