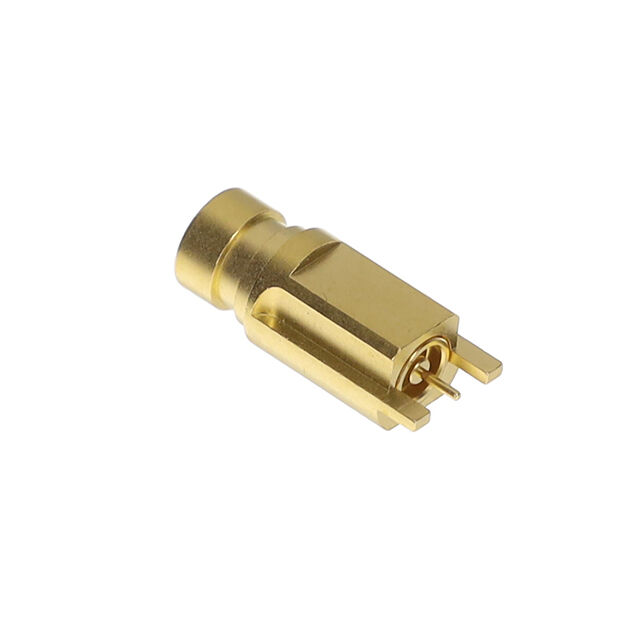

R201L00010
ActiveRadiall USA, Inc.
SMPM-LOCK / RECEPTACLE FOR PCB L
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R201L00010
ActiveRadiall USA, Inc.
SMPM-LOCK / RECEPTACLE FOR PCB L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R201L00010 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Solder |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 65 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Cutout, Board Edge, Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 68.42 | |
| 10 | $ 58.15 | |||
| 25 | $ 54.51 | |||
| 50 | $ 51.92 | |||
| 100 | $ 49.44 | |||
| Digi-Reel® | 1 | $ 68.42 | ||
| 10 | $ 55.77 | |||
| 25 | $ 51.42 | |||
| 50 | $ 48.36 | |||
| 100 | $ 48.06 | |||
| Tape & Reel (TR) | 500 | $ 28.45 | ||
Description
General part information
R201L Series
SMPM Connector Receptacle, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount Solder
