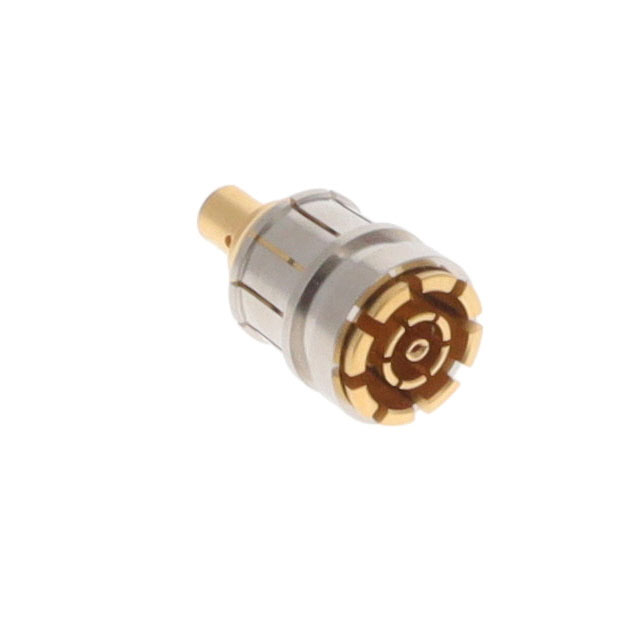

R201L80000

Active

Radiall USA, Inc.

SMPM-LOCK / STRAIGHT PLUG SOLDER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMPM-LOCK / STRAIGHT PLUG SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	R201L80000

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	Semi Rigid
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	65 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	125 VDC

Part	Number of Ports	Body Material	Center Contact Material	Body Finish	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Type	Contact Termination	Impedance	Connector Style	Shield Termination	Connector Type	Cable Group	Cable Group	Dielectric Material	Housing Color	Frequency - Max [Max]	Mating Cycles	Fastening Type
Radiall USA, Inc. R201L80000	1	Beryllium Copper	Beryllium Copper	Gold	Gold	-65 ░C	165 °C	125 VDC	Free Hanging (In-Line)	Solder	50 Ohms	SMPM	Solder	Female Socket Plug	Semi Rigid	0.047 in	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	Gold	65 GHz	500	Snap-On
Radiall USA, Inc. R201L80310	1								Free Hanging (In-Line) Right Angle	Solder		SMPM	Solder	Female Socket Plug	Semi Rigid	0.047 in		Gold			Snap-On
Radiall USA, Inc. R201L00010	1	Beryllium Copper	Beryllium Copper	Gold	Gold	-65 ░C	165 °C	125 VDC	Board Edge Cutout Surface Mount	Solder	50 Ohms	SMPM	Solder	Male Pin Receptacle			Polyetheretherketone (PEEK)	Gold	65 GHz	500	Snap-On
Radiall USA, Inc. R201L00010W	1	Beryllium Copper	Beryllium Copper	Gold	Gold	-65 ░C	165 °C	125 VDC	Board Edge Cutout Surface Mount	Solder	50 Ohms	SMPM	Solder	Male Pin Receptacle			Polyetheretherketone (PEEK)	Gold	65 GHz	500	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMPM Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
