R201L80310

Active

Radiall USA, Inc.

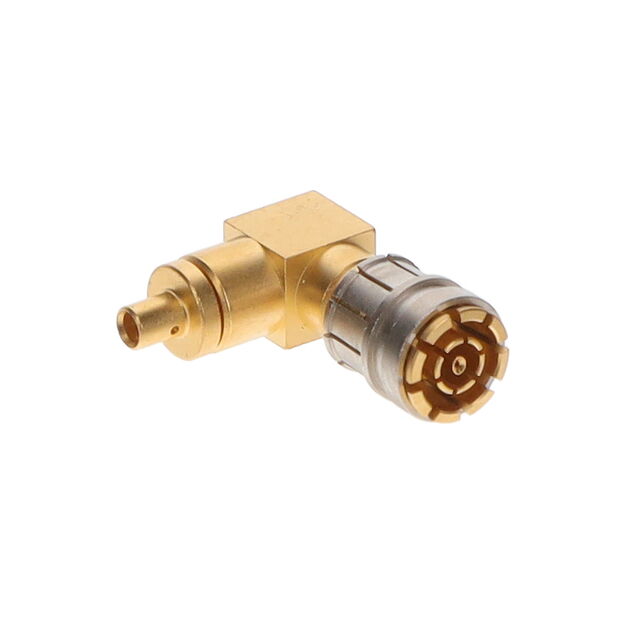

SMPM-LOCK / RIGHT ANGLE PLUG SOL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMPM-LOCK / RIGHT ANGLE PLUG SOL

Technical Specifications

Parameters and characteristics for this part

Specification	R201L80310

Cable Group	Semi Rigid
Cable Group	0.047 in
Connector Style	SMPM
Connector Type	Plug, Female Socket
Contact Termination	Solder
Fastening Type	Snap-On
Housing Color	Gold
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Shield Termination	Solder

Part	Number of Ports	Body Material	Center Contact Material	Body Finish	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Type	Contact Termination	Impedance	Connector Style	Shield Termination	Connector Type	Cable Group	Cable Group	Dielectric Material	Housing Color	Frequency - Max [Max]	Mating Cycles	Fastening Type
Radiall USA, Inc. R201L80000	1	Beryllium Copper	Beryllium Copper	Gold	Gold	-65 ░C	165 °C	125 VDC	Free Hanging (In-Line)	Solder	50 Ohms	SMPM	Solder	Female Socket Plug	Semi Rigid	0.047 in	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	Gold	65 GHz	500	Snap-On
Radiall USA, Inc. R201L80310	1								Free Hanging (In-Line) Right Angle	Solder		SMPM	Solder	Female Socket Plug	Semi Rigid	0.047 in		Gold			Snap-On
Radiall USA, Inc. R201L00010	1	Beryllium Copper	Beryllium Copper	Gold	Gold	-65 ░C	165 °C	125 VDC	Board Edge Cutout Surface Mount	Solder	50 Ohms	SMPM	Solder	Male Pin Receptacle			Polyetheretherketone (PEEK)	Gold	65 GHz	500	Snap-On
Radiall USA, Inc. R201L00010W	1	Beryllium Copper	Beryllium Copper	Gold	Gold	-65 ░C	165 °C	125 VDC	Board Edge Cutout Surface Mount	Solder	50 Ohms	SMPM	Solder	Male Pin Receptacle			Polyetheretherketone (PEEK)	Gold	65 GHz	500	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMPM Connector Plug, Female Socket Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources

No documents available
