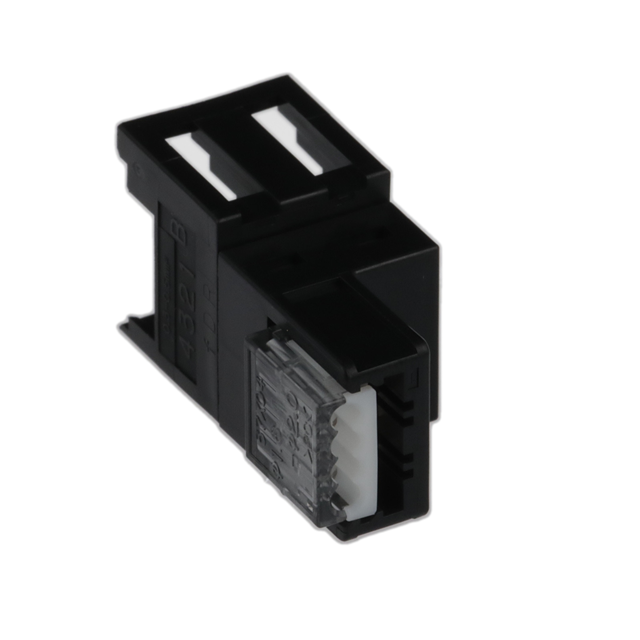

37C04-2206-000 FL
Active3M (TC)
MINI-CLAMP COMMON SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
37C04-2206-000 FL
Active3M (TC)
MINI-CLAMP COMMON SOCKET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 37C04-2206-000 FL |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Socket |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 6.5 mm |
| Row Spacing | 0.256 in |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 20 AWG |
| Wire Type | Discrete |
37C04 Series
| Part | Connector Type | Mounting Type | Cable Termination | Row Spacing | Row Spacing | Wire Type | Wire Gauge [Min] | Wire Gauge [Max] | Fastening Type | Number of Positions | Contact Type | Number of Rows | Features | Color | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Socket | Free Hanging (In-Line) | IDC | 6.5 mm | 0.256 in | Discrete | 24 AWG | 26 AWG | Latch Holder | 8 | Female Socket | 2 | Closed End | Black | 0.079 in | 2 mm |
3M (TC) | Socket | Free Hanging (In-Line) | IDC | 6.5 mm | 0.256 in | Discrete | 24 AWG | 26 AWG | Latch Holder | 8 | Female Socket | 2 | Closed End | Black | 0.079 in | 2 mm |
3M (TC) | Socket | Panel Mount Snap-In | IDC | 6.5 mm | 0.256 in | Discrete | 20 AWG | 22 AWG | Latch Holder | 8 | Female Socket | 2 | Closed End | Black | 0.079 in | 2 mm |
3M (TC) | Socket | Panel Mount Snap-In | IDC | 6.5 mm | 0.256 in | Discrete | 20 AWG | 22 AWG | Latch Holder | 8 | Female Socket | 2 | Closed End | Black | 0.079 in | 2 mm |
3M (TC) | Socket | Free Hanging (In-Line) | IDC | 6.5 mm | 0.256 in | Discrete | 24 AWG | 26 AWG | Latch Holder | 8 | Female Socket | 2 | Closed End | Black | 0.079 in | 2 mm |
3M (TC) | Socket | Free Hanging (In-Line) | IDC | 6.5 mm | 0.256 in | Discrete | 20 AWG | 22 AWG | Latch Holder | 8 | Female Socket | 2 | Closed End | Black | 0.079 in | 2 mm |
3M (TC) | Socket | Panel Mount Snap-In | IDC | 6.5 mm | 0.256 in | Discrete | 20 AWG | 22 AWG | Latch Holder | 8 | Female Socket | 2 | Closed End | Black | 0.079 in | 2 mm |
3M (TC) | Socket | Free Hanging (In-Line) | IDC | 6.5 mm | 0.256 in | Discrete | 20 AWG | 22 AWG | Latch Holder | 8 | Female Socket | 2 | Closed End | Black | 0.079 in | 2 mm |
3M (TC) | Socket | Free Hanging (In-Line) | IDC | 6.5 mm | 0.256 in | Discrete | 20 AWG | 22 AWG | Latch Holder | 8 | Female Socket | 2 | Closed End | Black | 0.079 in | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.43 | |
| 10 | $ 6.46 | |||
| 25 | $ 5.84 | |||
| 40 | $ 5.54 | |||
| 80 | $ 5.14 | |||
| 230 | $ 4.61 | |||
| 440 | $ 4.31 | |||
| 945 | $ 4.00 | |||
| 2400 | $ 3.69 | |||
Description
General part information
37C04 Series
8 Position Rectangular Socket Connector IDC 20-22 AWG
