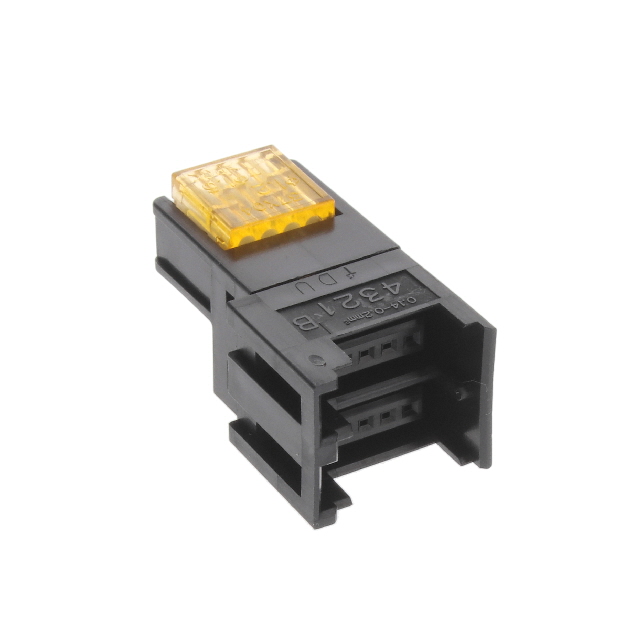

37C04-3163-000 FL

Active

3M (TC)

MINI-CLAMP COMMON SOCKET

Search across all available documentation for this part.

Active

3M (TC)

MINI-CLAMP COMMON SOCKET

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Mounting Type	Cable Termination	Row Spacing	Row Spacing	Wire Type	Wire Gauge [Min]	Wire Gauge [Max]	Fastening Type	Number of Positions	Contact Type	Number of Rows	Features	Color	Pitch [x]	Pitch [x]
3M (TC) 37C04-3163-000 FL	Socket	Free Hanging (In-Line)	IDC	6.5 mm	0.256 in	Discrete	24 AWG	26 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-3101-000 FL	Socket	Free Hanging (In-Line)	IDC	6.5 mm	0.256 in	Discrete	24 AWG	26 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-2124-0P0 FL	Socket	Panel Mount Snap-In	IDC	6.5 mm	0.256 in	Discrete	20 AWG	22 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-2206-0P0 FL	Socket	Panel Mount Snap-In	IDC	6.5 mm	0.256 in	Discrete	20 AWG	22 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-3122-000 FL	Socket	Free Hanging (In-Line)	IDC	6.5 mm	0.256 in	Discrete	24 AWG	26 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-2206-000 FL	Socket	Free Hanging (In-Line)	IDC	6.5 mm	0.256 in	Discrete	20 AWG	22 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-2165-0P0 FL	Socket	Panel Mount Snap-In	IDC	6.5 mm	0.256 in	Discrete	20 AWG	22 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-2165-000 FL	Socket	Free Hanging (In-Line)	IDC	6.5 mm	0.256 in	Discrete	20 AWG	22 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-2124-000 FL	Socket	Free Hanging (In-Line)	IDC	6.5 mm	0.256 in	Discrete	20 AWG	22 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Rectangular Socket Connector IDC 24-26 AWG
