37C04-2124-000 FL

Active

3M (TC)

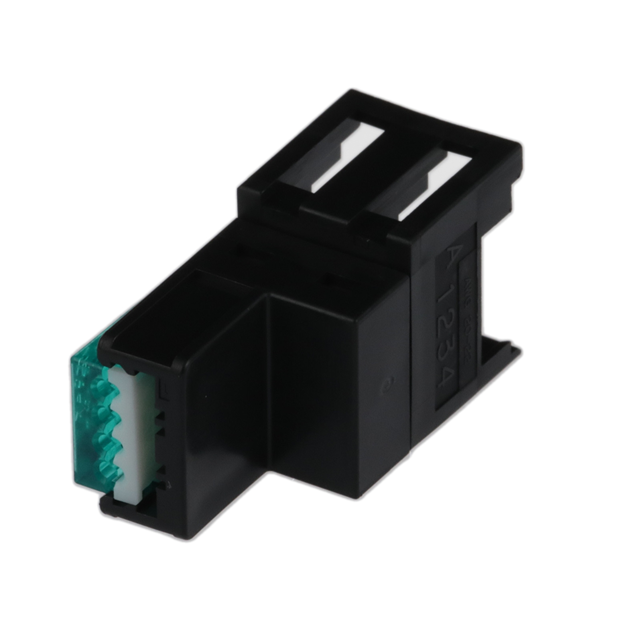

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2 MM, 2 ROW, 8 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

37C04-2124-000 FL

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2 MM, 2 ROW, 8 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	37C04-2124-000 FL

Cable Termination	IDC
Color	Black
Connector Type	Socket
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Closed End
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	6.5 mm
Row Spacing	0.256 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	20 AWG
Wire Type	Discrete

37C04 Series

Part	Connector Type	Mounting Type	Cable Termination	Row Spacing	Row Spacing	Wire Type	Wire Gauge [Min]	Wire Gauge [Max]	Fastening Type	Number of Positions	Contact Type	Number of Rows	Features	Color	Pitch [x]	Pitch [x]
3M (TC) 37C04-3163-000 FL	Socket	Free Hanging (In-Line)	IDC	6.5 mm	0.256 in	Discrete	24 AWG	26 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-3101-000 FL	Socket	Free Hanging (In-Line)	IDC	6.5 mm	0.256 in	Discrete	24 AWG	26 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-2124-0P0 FL	Socket	Panel Mount Snap-In	IDC	6.5 mm	0.256 in	Discrete	20 AWG	22 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-2206-0P0 FL	Socket	Panel Mount Snap-In	IDC	6.5 mm	0.256 in	Discrete	20 AWG	22 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-3122-000 FL	Socket	Free Hanging (In-Line)	IDC	6.5 mm	0.256 in	Discrete	24 AWG	26 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-2206-000 FL	Socket	Free Hanging (In-Line)	IDC	6.5 mm	0.256 in	Discrete	20 AWG	22 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-2165-0P0 FL	Socket	Panel Mount Snap-In	IDC	6.5 mm	0.256 in	Discrete	20 AWG	22 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-2165-000 FL	Socket	Free Hanging (In-Line)	IDC	6.5 mm	0.256 in	Discrete	20 AWG	22 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm
3M (TC) 37C04-2124-000 FL	Socket	Free Hanging (In-Line)	IDC	6.5 mm	0.256 in	Discrete	20 AWG	22 AWG	Latch Holder	8	Female Socket	2	Closed End	Black	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.22
		10	$ 3.83
		25	$ 3.63
		40	$ 3.54
		100	$ 3.37
		300	$ 2.97
Newark	Each	100	$ 5.79
		250	$ 5.11
		500	$ 4.96
		1000	$ 4.21

Description

General part information

37C04 Series

3M™ mini-clamp common socket, 37C series accepts up to two 3M Mini-Clamp Plugs enabling space and wire savings. Power and signal splitting on the sensor wire are supported as well. All 3M Mini-Clamp Connectors utilize Insulation Displacement Technology (IDC) to allow for a simple, labour-saving, field-terminable installation process using a standard pair of pliers. The semi-transparent cover allows for quick installation inspection. 3M™ mini-clamp common socket, 37C series accepts can be used in any application where a 2:1 cable connection is needed for wires of 3-4 conductor and 26-20AWG. The connector provides a time-saving, reliable and field-installable wiring solution.
