NHD-2.8-25664UMY3

Active

Newhaven Display Intl

OLED GRAPH MULTIFONT YEL 2.8

Search across all available documentation for this part.

Active

Newhaven Display Intl

OLED GRAPH MULTIFONT YEL 2.8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 33.59

General part information

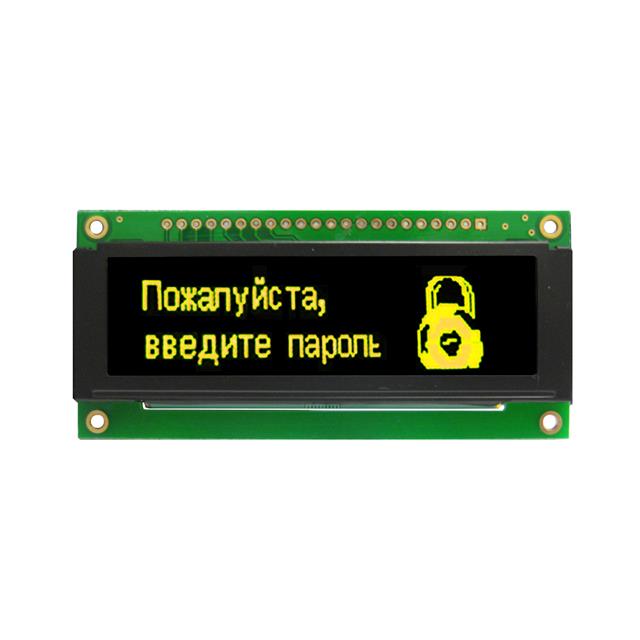

Graphic LCD Display Module Yellow OLED - Passive Matrix Parallel, 8-Bit, SPI 2.8" (71.12mm) 256 x 64

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	NHD-2.8-25664UMY3	NHD-2.8 Series

Background Color	Black	Black
Backlight	Without Backlight	LED - White, Without Backlight
Controller Type	SSD1322	ST7789VI, SSD1322
Diagonal Screen Size	2.8 in	2.8 in
Diagonal Screen Size	71.12 mm	71.12 mm
Display Mode	-	Transmissive
Display Type	OLED - Passive Matrix	TFT - Color, IPS (In-Plane Switching), OLED - Passive Matrix
Dot Pitch	-	0.27 mm
Dot Pitch	-	0.27 mm
Dot Pixels	-	QVGA
Dot Pixels [x]	256	240 - 320 pixels
Dot Pixels [y]	64	64 - 320
Dot Size	-	0.25 mm
Dot Size	-	0.25 mm
Graphics Color	Yellow	Green, Red, Blue, Yellow
Interface	8-Bit, SPI, Parallel	8-Bit, Parallel, 16-Bit, SPI, Parallel/Serial
Touchscreen	-	Capacitive, Resistive
Viewing Area [y]	72 mm	72 mm
Viewing Area [z]	20 mm	20 mm

2.8" IPS TFT

Part	Graphics Color	Backlight	Display Type	Controller Type	Display Mode	Interface	Dot Pixels [y]	Dot Pixels [x]	Diagonal Screen Size	Diagonal Screen Size	Background Color	Dot Size [y]	Dot Size [x]	Viewing Area [z]	Viewing Area [y]	Dot Pitch [x]	Dot Pitch [y]	Dot Pixels	Touchscreen
Newhaven Display Intl NHD-2.8-240320AF-CSXP-F	Blue, Green, Red	LED - White	TFT - Color, IPS (In-Plane Switching)	ST7789VI	Transmissive	16-Bit, 8-Bit, Parallel	320	240 pixels	2.8 in	71.12 mm
Newhaven Display Intl NHD-2.8-25664UCY2	Yellow	Without Backlight	OLED - Passive Matrix	SSD1322		8-Bit, Parallel, SPI	64	256	2.8 in	71.12 mm	Black	0.25 mm	0.25 mm	20 mm	72 mm	0.27 mm	0.27 mm
Newhaven Display Intl NHD-2.8-240320AF-CSXP-FCTP	Blue, Green, Red	LED - White	TFT - Color, IPS (In-Plane Switching)	ST7789VI	Transmissive	16-Bit, 8-Bit, Parallel	240 pixels	320 pixels	2.8 in	71.12 mm								QVGA	Capacitive
Newhaven Display Intl NHD-2.8-25664UCB2	Blue	Without Backlight	OLED - Passive Matrix	SSD1322		Parallel/Serial	64	256	2.8 in	71.12 mm	Black	0.25 mm	0.25 mm	20 mm	72 mm	0.27 mm	0.27 mm
Newhaven Display Intl NHD-2.8-25664UMB3	Blue	Without Backlight	OLED - Passive Matrix	SSD1322		8-Bit, Parallel, SPI	64	256	2.8 in	71.12 mm	Black			20 mm	72 mm
Newhaven Display Intl NHD-2.8-240320AF-CSXP-FT	Blue, Green, Red	LED - White	TFT - Color, IPS (In-Plane Switching)	ST7789VI	Transmissive	16-Bit, 8-Bit, Parallel	320	240 pixels	2.8 in	71.12 mm									Resistive
Newhaven Display Intl NHD-2.8-25664UMY3	Yellow	Without Backlight	OLED - Passive Matrix	SSD1322		8-Bit, Parallel, SPI	64	256	2.8 in	71.12 mm	Black			20 mm	72 mm
