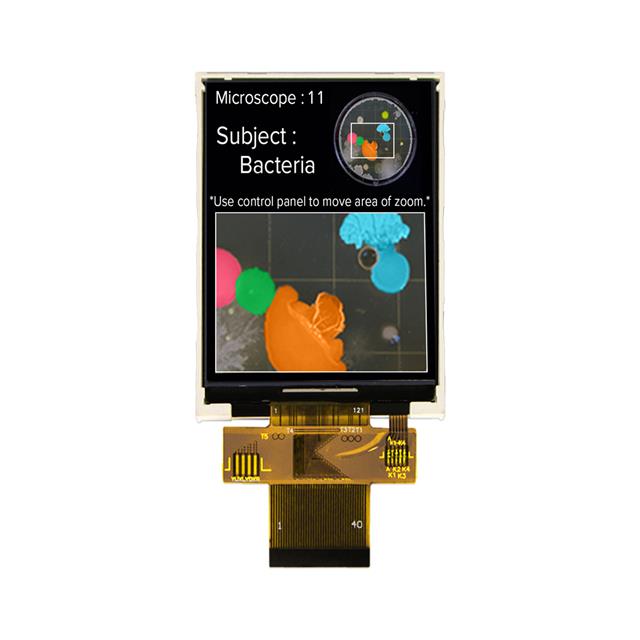

NHD-2.8-240320AF-CSXP-F

Active

Newhaven Display Intl

2.8" IPS TFT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NHD-2.8-240320AF-CSXP-F

Active

Newhaven Display Intl

2.8" IPS TFT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NHD-2.8-240320AF-CSXP-F	NHD-2.8 Series

Background Color	-	Black
Backlight	LED - White	LED - White, Without Backlight
Controller Type	ST7789VI	ST7789VI, SSD1322
Diagonal Screen Size	2.8 in	2.8 in
Diagonal Screen Size	71.12 mm	71.12 mm
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)	TFT - Color, IPS (In-Plane Switching), OLED - Passive Matrix
Dot Pitch	-	0.27 mm
Dot Pitch	-	0.27 mm
Dot Pixels	-	QVGA
Dot Pixels [x]	240 pixels	240 - 320 pixels
Dot Pixels [y]	320	64 - 320
Dot Size	-	0.25 mm
Dot Size	-	0.25 mm
Graphics Color	Green, Red, Blue	Green, Red, Blue, Yellow
Interface	8-Bit, Parallel, 16-Bit	8-Bit, Parallel, 16-Bit, SPI, Parallel/Serial
Touchscreen	-	Capacitive, Resistive
Viewing Area	-	20 mm
Viewing Area	-	72 mm

NHD-2.8 Series

2.8" IPS TFT

Part	Graphics Color	Backlight	Display Type	Controller Type	Display Mode	Interface	Dot Pixels [y]	Dot Pixels [x]	Diagonal Screen Size	Diagonal Screen Size	Background Color	Dot Size [y]	Dot Size [x]	Viewing Area [z]	Viewing Area [y]	Dot Pitch [x]	Dot Pitch [y]	Dot Pixels	Touchscreen
Newhaven Display Intl NHD-2.8-240320AF-CSXP-F	Blue, Green, Red	LED - White	TFT - Color, IPS (In-Plane Switching)	ST7789VI	Transmissive	16-Bit, 8-Bit, Parallel	320	240 pixels	2.8 in	71.12 mm
Newhaven Display Intl NHD-2.8-25664UCY2	Yellow	Without Backlight	OLED - Passive Matrix	SSD1322		8-Bit, Parallel, SPI	64	256	2.8 in	71.12 mm	Black	0.25 mm	0.25 mm	20 mm	72 mm	0.27 mm	0.27 mm
Newhaven Display Intl NHD-2.8-240320AF-CSXP-FCTP	Blue, Green, Red	LED - White	TFT - Color, IPS (In-Plane Switching)	ST7789VI	Transmissive	16-Bit, 8-Bit, Parallel	240 pixels	320 pixels	2.8 in	71.12 mm								QVGA	Capacitive
Newhaven Display Intl NHD-2.8-25664UCB2	Blue	Without Backlight	OLED - Passive Matrix	SSD1322		Parallel/Serial	64	256	2.8 in	71.12 mm	Black	0.25 mm	0.25 mm	20 mm	72 mm	0.27 mm	0.27 mm
Newhaven Display Intl NHD-2.8-25664UMB3	Blue	Without Backlight	OLED - Passive Matrix	SSD1322		8-Bit, Parallel, SPI	64	256	2.8 in	71.12 mm	Black			20 mm	72 mm
Newhaven Display Intl NHD-2.8-240320AF-CSXP-FT	Blue, Green, Red	LED - White	TFT - Color, IPS (In-Plane Switching)	ST7789VI	Transmissive	16-Bit, 8-Bit, Parallel	320	240 pixels	2.8 in	71.12 mm									Resistive
Newhaven Display Intl NHD-2.8-25664UMY3	Yellow	Without Backlight	OLED - Passive Matrix	SSD1322		8-Bit, Parallel, SPI	64	256	2.8 in	71.12 mm	Black			20 mm	72 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 28.54
		5	$ 27.09

Description

General part information

NHD-2.8 Series

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) Parallel, 8-Bit/16-Bit (RGB) 2.8" (71.12mm) 240 x 320

Documents

Technical documentation and resources
