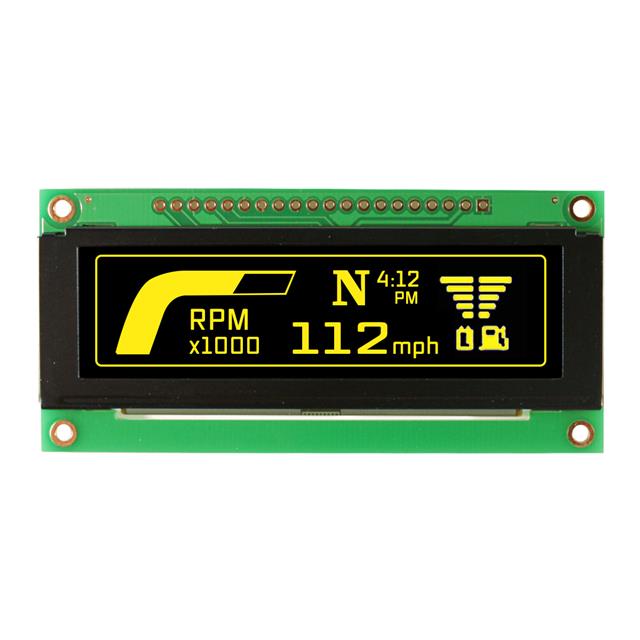

NHD-2.8-25664UCY2

Active

Newhaven Display Intl

LCD OLED GRAPHIC 256 X 64 YLW

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD OLED GRAPHIC 256 X 64 YLW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Yellow OLED - Passive Matrix Parallel, 8-Bit, SPI 2.8" (71.12mm) 256 x 64

Specification	NHD-2.8-25664UCY2	NHD-2.8 Series

Background Color	Black	Black
Backlight	Without Backlight	LED - White, Without Backlight
Controller Type	SSD1322	ST7789VI, SSD1322
Diagonal Screen Size	2.8 in	2.8 in
Diagonal Screen Size	71.12 mm	71.12 mm
Display Mode	-	Transmissive
Display Type	OLED - Passive Matrix	TFT - Color, IPS (In-Plane Switching), OLED - Passive Matrix
Dot Pitch [x]	0.27 mm	0.27 mm
Dot Pitch [y]	0.27 mm	0.27 mm
Dot Pixels	-	QVGA
Dot Pixels [x]	256	240 - 320 pixels
Dot Pixels [y]	64	64 - 320
Dot Size [x]	0.25 mm	0.25 mm
Dot Size [y]	0.25 mm	0.25 mm
Graphics Color	Yellow	Green, Red, Blue, Yellow
Interface	8-Bit, SPI, Parallel	8-Bit, Parallel, 16-Bit, SPI, Parallel/Serial
Touchscreen	-	Capacitive, Resistive
Viewing Area [y]	72 mm	72 mm
Viewing Area [z]	20 mm	20 mm

Part	Graphics Color	Backlight	Display Type	Controller Type	Display Mode	Interface	Dot Pixels [y]	Dot Pixels [x]	Diagonal Screen Size	Diagonal Screen Size	Background Color	Dot Size [y]	Dot Size [x]	Viewing Area [z]	Viewing Area [y]	Dot Pitch [x]	Dot Pitch [y]	Dot Pixels	Touchscreen
Newhaven Display Intl NHD-2.8-240320AF-CSXP-F	Blue, Green, Red	LED - White	TFT - Color, IPS (In-Plane Switching)	ST7789VI	Transmissive	16-Bit, 8-Bit, Parallel	320	240 pixels	2.8 in	71.12 mm
Newhaven Display Intl NHD-2.8-25664UCY2	Yellow	Without Backlight	OLED - Passive Matrix	SSD1322		8-Bit, Parallel, SPI	64	256	2.8 in	71.12 mm	Black	0.25 mm	0.25 mm	20 mm	72 mm	0.27 mm	0.27 mm
Newhaven Display Intl NHD-2.8-240320AF-CSXP-FCTP	Blue, Green, Red	LED - White	TFT - Color, IPS (In-Plane Switching)	ST7789VI	Transmissive	16-Bit, 8-Bit, Parallel	240 pixels	320 pixels	2.8 in	71.12 mm								QVGA	Capacitive
Newhaven Display Intl NHD-2.8-25664UCB2	Blue	Without Backlight	OLED - Passive Matrix	SSD1322		Parallel/Serial	64	256	2.8 in	71.12 mm	Black	0.25 mm	0.25 mm	20 mm	72 mm	0.27 mm	0.27 mm
Newhaven Display Intl NHD-2.8-25664UMB3	Blue	Without Backlight	OLED - Passive Matrix	SSD1322		8-Bit, Parallel, SPI	64	256	2.8 in	71.12 mm	Black			20 mm	72 mm
Newhaven Display Intl NHD-2.8-240320AF-CSXP-FT	Blue, Green, Red	LED - White	TFT - Color, IPS (In-Plane Switching)	ST7789VI	Transmissive	16-Bit, 8-Bit, Parallel	320	240 pixels	2.8 in	71.12 mm									Resistive
Newhaven Display Intl NHD-2.8-25664UMY3	Yellow	Without Backlight	OLED - Passive Matrix	SSD1322		8-Bit, Parallel, SPI	64	256	2.8 in	71.12 mm	Black			20 mm	72 mm
