Description

General part information

628-11W Series

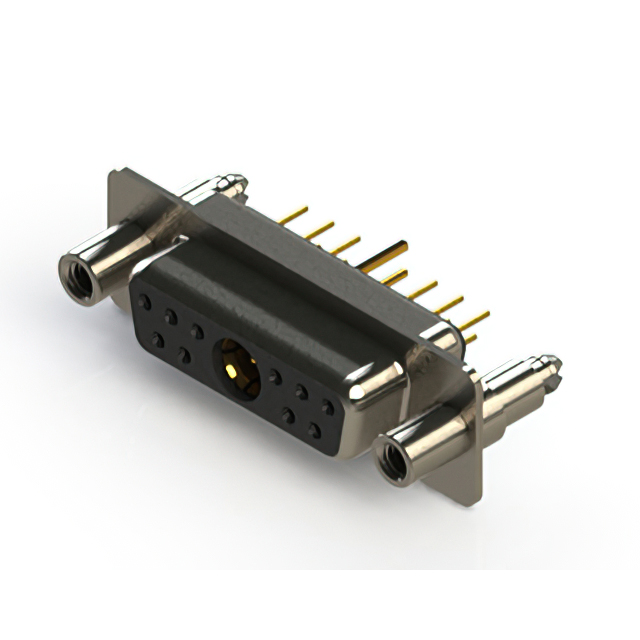

11 (10 + 1 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	628-11W1624-7T6

Color	Black
Connector Layout	DA, A
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock
Finish	Tin Plated
Flange Feature	Mating Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions (Special)	1
Number of Positions (Standard)	10
Number of Positions (Total)	11
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	11W1, 11C1
Position Types	Coax
Shell Material	Steel
Shell Size	2
Termination	Solder
Voltage Rating	125 V

628-11W Series

...

Part	Shell Material	Finish	Current Rating Options	Termination	Features	Number of Positions (Total)	Number of Positions (Normal)	Number of Positions (Power)	Mounting Type	Contact Finish	Number of Rows	Flange Feature	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Connector Type	Shell Size	Connector Layout	Part Code	Contact Type	Material Flammability Rating	Connector Style	Contact Material	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Color	Number of Positions (Standard)	Position Types	Number of Positions (Special)
EDAC Inc. 628-11W1224-4N5	Steel	Nickel Plated	40A 5A	Solder	Board Lock Shielded	11	10	1	Through Hole	Gold	2	Board Side (4-40)	0	Flash	Flash	Female Sockets Receptacle	2	A DA	11C1 11W1	Power Signal	UL94 V-0	Combo D-Sub	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 628-11W1224-1NC	Steel	Nickel Plated	10A 5A	Solder	Shielded	11	10	1	Through Hole	Gold	2	Board Side (M3) Mating Side (M3)	0	Flash	Flash	Female Sockets Receptacle	2	A DA	11C1 11W1	Power Signal	UL94 V-0	Combo D-Sub	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 628-11W1224-3NA	Steel	Nickel Plated	30A 5A	Solder	Shielded	11	10	1	Through Hole	Gold	2	Board Side (M3)	0	Flash	Flash	Female Sockets Receptacle	2	A DA	11C1 11W1	Power Signal	UL94 V-0	Combo D-Sub	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 628-11W1222-7N1	Steel	Nickel Plated		Solder Cup	Shielded	11			Free Hanging (In-Line)	Gold	2	Housing Shell (Unthreaded)	0	Flash	Flash	Female Sockets Receptacle	2	A DA	11C1 11W1	Coax Signal	UL94 V-0	Combo D-Sub	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black	10	Coax	1
EDAC Inc. 628-11W1224-4N3	Steel	Nickel Plated	40A 5A	Solder	Shielded	11	10	1	Through Hole	Gold	2	Board Side (4-40)	0	Flash	Flash	Female Sockets Receptacle	2	A DA	11C1 11W1	Power Signal	UL94 V-0	Combo D-Sub	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 628-11W1624-7T6	Steel	Tin Plated		Solder	Board Lock Shielded	11			Through Hole	Gold	2	Mating Side (4-40)	30 µin			Female Sockets Receptacle	2	A DA	11C1 11W1	Coax Signal	UL94 V-0	Combo D-Sub	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black	10	Coax	1
EDAC Inc. 628-11W1622-1TA	Steel	Tin Plated	10A 5A	Solder Cup	Shielded	11	10	1	Free Hanging (In-Line)	Gold	2	Board Side (M3)	30 µin			Female Sockets Receptacle	2	A DA	11C1 11W1	Power Signal	UL94 V-0	Combo D-Sub	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 628-11W1224-7TA	Steel	Tin Plated		Solder	Shielded	11			Through Hole	Gold	2	Board Side (M3)	0	Flash	Flash	Female Sockets Receptacle	2	A DA	11C1 11W1	Coax Signal	UL94 V-0	Combo D-Sub	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black	10	Coax	1
EDAC Inc. 628-11W1224-5T5	Steel	Tin Plated		Solder	Board Lock Shielded	11			Through Hole	Gold	2	Board Side (4-40)	0	Flash	Flash	Female Sockets Receptacle	2	A DA	11C1 11W1	Coax Signal	UL94 V-0	Combo D-Sub	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black	10	Coax	1
EDAC Inc. 628-11W1624-1TA	Steel	Tin Plated	10A 5A	Solder	Shielded	11	10	1	Through Hole	Gold	2	Board Side (M3)	30 µin			Female Sockets Receptacle	2	A DA	11C1 11W1	Power Signal	UL94 V-0	Combo D-Sub	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black
