628-11W1224-5T5

Active

EDAC Inc.

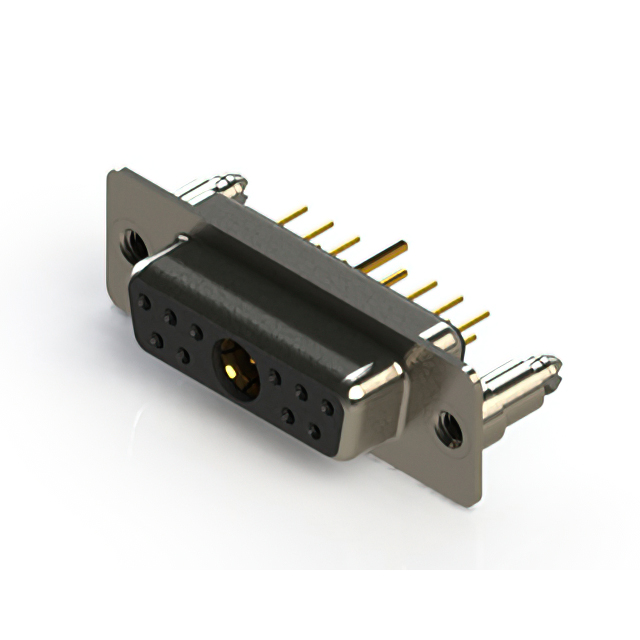

11P STRAIGHT 2 PLUGIN D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-11W1224-5T5

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions [custom]	11
Number of Positions [custom]	1
Number of Positions [custom]	10
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	11C1, 11W1
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	125 VDC

628-11W Series

...

Part	Connector Type	Dielectric Material	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish	Contact Finish Thickness	Termination	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Shell Material, Finish	Current Rating (Amps)	Contact Material	Number of Rows	Contact Type	Mounting Type	Voltage Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Features	Color	Material Flammability Rating	Current Rating (Amps)	Flange Feature [custom]	Flange Feature [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 628-11W1224-4N5	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold	Flash	Solder	Combo D-Sub	-55 °C	125 °C	4-40 Board Side	Nickel Plated Steel	5 A 40 A	Copper Alloy	2	Signal and Power	Through Hole	125 VDC	10	1	11	Board Lock Shielded	Black	UL94 V-0
EDAC Inc. 628-11W1224-1NC	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold	Flash	Solder	Combo D-Sub	-55 °C	125 °C		Nickel Plated Steel		Copper Alloy	2	Signal and Power	Through Hole	125 VDC	10	1	11	Shielded	Black	UL94 V-0	10A 5A	M3	M3
EDAC Inc. 628-11W1222-7N1	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold	Flash		Combo D-Sub	-55 °C	125 °C	Housing/Shell (Unthreaded)	Nickel Plated Steel		Copper Alloy	2	Coax Signal	Free Hanging (In-Line)	125 VDC	10			Shielded	Black	UL94 V-0				11	1
EDAC Inc. 628-11W1224-4N3	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold	Flash	Solder	Combo D-Sub	-55 °C	125 °C	4-40 Board Side	Nickel Plated Steel	5 A 40 A	Copper Alloy	2	Signal and Power	Through Hole	125 VDC	10	1	11	Shielded	Black	UL94 V-0
EDAC Inc. 628-11W1624-7T6	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold		Solder	Combo D-Sub	-55 °C	125 °C	4-40			Copper Alloy	2	Coax Signal	Through Hole	125 VDC	10			Board Lock Shielded	Black	UL94 V-0				11	1	0.76 Ám	30 Áin
EDAC Inc. 628-11W1622-1TA	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold			Combo D-Sub	-55 °C	125 °C	Board Side (M3)			Copper Alloy	2	Signal and Power	Free Hanging (In-Line)	125 VDC	10	1	11	Shielded	Black	UL94 V-0	10A 5A					0.76 Ám	30 Áin
EDAC Inc. 628-11W1224-5T5	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold	Flash	Solder	Combo D-Sub	-55 °C	125 °C	4-40 Board Side			Copper Alloy	2	Coax Signal	Through Hole	125 VDC	10			Board Lock Shielded	Black	UL94 V-0				11	1
EDAC Inc. 628-11W1624-1TA	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold		Solder	Combo D-Sub	-55 °C	125 °C	Board Side (M3)			Copper Alloy	2	Signal and Power	Through Hole	125 VDC	10	1	11	Shielded	Black	UL94 V-0	10A 5A					0.76 Ám	30 Áin
EDAC Inc. 628-11W1624-4T5	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold		Solder	Combo D-Sub	-55 °C	125 °C	4-40 Board Side		5 A 40 A	Copper Alloy	2	Signal and Power	Through Hole	125 VDC	10	1	11	Board Lock Shielded	Black	UL94 V-0						0.76 Ám	30 Áin
EDAC Inc. 628-11W1624-5T4	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold		Solder	Combo D-Sub	-55 °C	125 °C	4-40			Copper Alloy	2	Coax Signal	Through Hole	125 VDC	10			Shielded	Black	UL94 V-0				11	1	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 7.12
LCSC	Piece	1	$ 15.25
		200	$ 6.09
		500	$ 5.88
		1000	$ 5.78

Description

General part information

628-11W Series

11 (10 + 1 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
