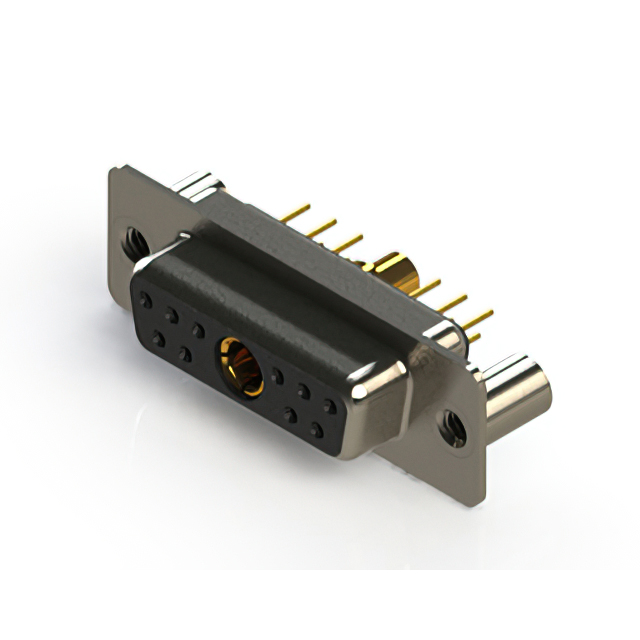

628-11W1224-4N3

Active

EDAC Inc.

CONN D-SUB RCPT 11POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-11W1224-4N3

Active

EDAC Inc.

CONN D-SUB RCPT 11POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-11W1224-4N3

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	11
Number of Positions [custom]	10
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	11C1, 11W1
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	125 VDC

628-11W Series

...

Part	Connector Type	Dielectric Material	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish	Contact Finish Thickness	Termination	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Shell Material, Finish	Current Rating (Amps)	Contact Material	Number of Rows	Contact Type	Mounting Type	Voltage Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Features	Color	Material Flammability Rating	Current Rating (Amps)	Flange Feature [custom]	Flange Feature [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 628-11W1224-4N5	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold	Flash	Solder	Combo D-Sub	-55 °C	125 °C	4-40 Board Side	Nickel Plated Steel	5 A 40 A	Copper Alloy	2	Signal and Power	Through Hole	125 VDC	10	1	11	Board Lock Shielded	Black	UL94 V-0
EDAC Inc. 628-11W1224-1NC	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold	Flash	Solder	Combo D-Sub	-55 °C	125 °C		Nickel Plated Steel		Copper Alloy	2	Signal and Power	Through Hole	125 VDC	10	1	11	Shielded	Black	UL94 V-0	10A 5A	M3	M3
EDAC Inc. 628-11W1222-7N1	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold	Flash		Combo D-Sub	-55 °C	125 °C	Housing/Shell (Unthreaded)	Nickel Plated Steel		Copper Alloy	2	Coax Signal	Free Hanging (In-Line)	125 VDC	10			Shielded	Black	UL94 V-0				11	1
EDAC Inc. 628-11W1224-4N3	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold	Flash	Solder	Combo D-Sub	-55 °C	125 °C	4-40 Board Side	Nickel Plated Steel	5 A 40 A	Copper Alloy	2	Signal and Power	Through Hole	125 VDC	10	1	11	Shielded	Black	UL94 V-0
EDAC Inc. 628-11W1624-7T6	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold		Solder	Combo D-Sub	-55 °C	125 °C	4-40			Copper Alloy	2	Coax Signal	Through Hole	125 VDC	10			Board Lock Shielded	Black	UL94 V-0				11	1	0.76 Ám	30 Áin
EDAC Inc. 628-11W1622-1TA	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold			Combo D-Sub	-55 °C	125 °C	Board Side (M3)			Copper Alloy	2	Signal and Power	Free Hanging (In-Line)	125 VDC	10	1	11	Shielded	Black	UL94 V-0	10A 5A					0.76 Ám	30 Áin
EDAC Inc. 628-11W1224-5T5	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold	Flash	Solder	Combo D-Sub	-55 °C	125 °C	4-40 Board Side			Copper Alloy	2	Coax Signal	Through Hole	125 VDC	10			Board Lock Shielded	Black	UL94 V-0				11	1
EDAC Inc. 628-11W1624-1TA	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold		Solder	Combo D-Sub	-55 °C	125 °C	Board Side (M3)			Copper Alloy	2	Signal and Power	Through Hole	125 VDC	10	1	11	Shielded	Black	UL94 V-0	10A 5A					0.76 Ám	30 Áin
EDAC Inc. 628-11W1624-4T5	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold		Solder	Combo D-Sub	-55 °C	125 °C	4-40 Board Side		5 A 40 A	Copper Alloy	2	Signal and Power	Through Hole	125 VDC	10	1	11	Board Lock Shielded	Black	UL94 V-0						0.76 Ám	30 Áin
EDAC Inc. 628-11W1624-5T4	Receptacle Female Sockets	Polyester Thermoplastic	11C1 11W1	2	Gold		Solder	Combo D-Sub	-55 °C	125 °C	4-40			Copper Alloy	2	Coax Signal	Through Hole	125 VDC	10			Shielded	Black	UL94 V-0				11	1	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 6.06

Description

General part information

628-11W Series

11 (10 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
