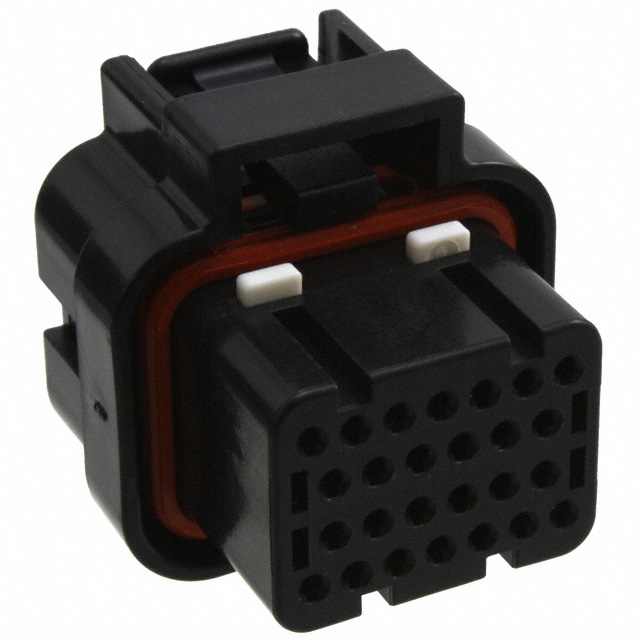

3-1437290-8
ActiveTE Connectivity Raychem Cable Protection
CONN HOUSING PL 26 POS 3MM CRIMP ST CABLE MOUNT BLACK TUBE
Deep-Dive with AI
Search across all available documentation for this part.
3-1437290-8
ActiveTE Connectivity Raychem Cable Protection
CONN HOUSING PL 26 POS 3MM CRIMP ST CABLE MOUNT BLACK TUBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-1437290-8 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyester, Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 26 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3 mm |
| Pitch [x] | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SUPERSEAL 1.0mm Series
26 Position Housing, Housing for Female Terminals, Wire-to-Board / Wire-to-Device, 3 mm [.118 in] Centerline, Sealable, Black, SUPERSEAL 1.0mm
