2-6447232-3
ActiveTE Connectivity Raychem Cable Protection

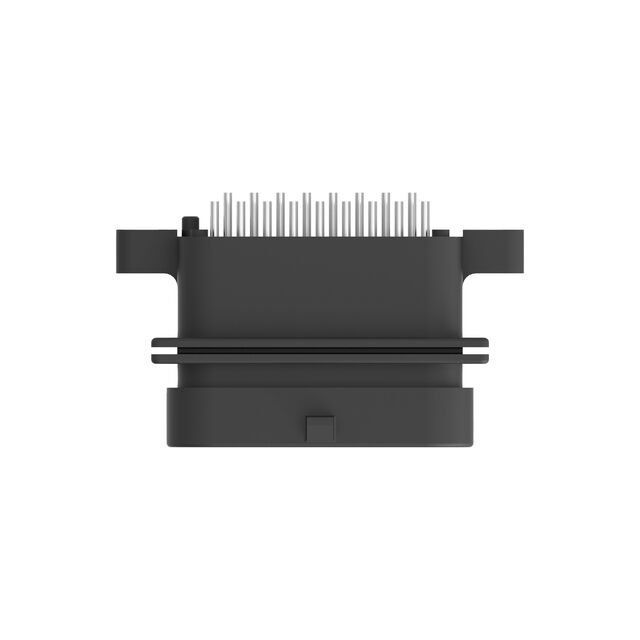

SUPER SEAL 34POS CAP ASSY V AU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-6447232-3 |
|---|---|
| Applications | Automotive |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.157 in |
| Contact Length - Post | 4 mm |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Features | Sealed, Mounting Flange |
| Insulation Height | 27.4 mm |
| Insulation Height | 1.079 in |
| Insulation Material | Polyester |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 20.96 | |
| 14 | $ 20.52 | |||
| 112 | $ 17.14 | |||
| 504 | $ 14.85 | |||
Description
General part information
SUPERSEAL 1.0mm Series
Vertical, Wire-to-Board, 34 Position, 4 Rows, 3mm [.118in] Centerline, Gold (Au), Sealable, Printed Circuit Board, SUPERSEAL 1.0mm
