TE Connectivity Raychem Cable Protection

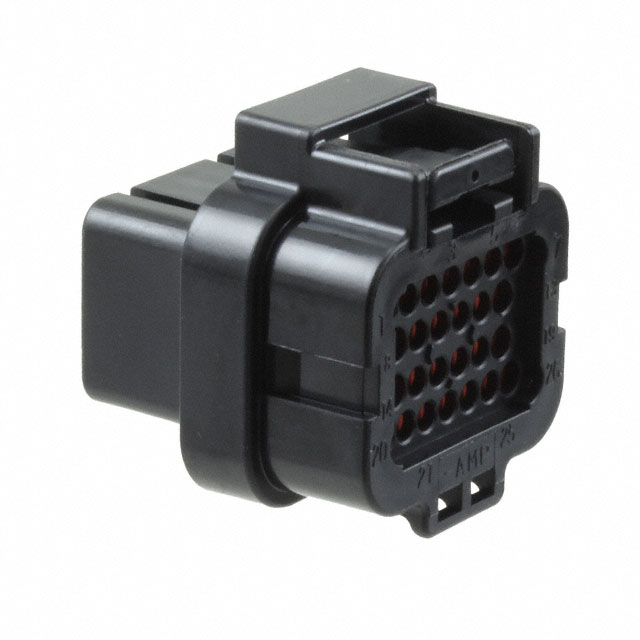

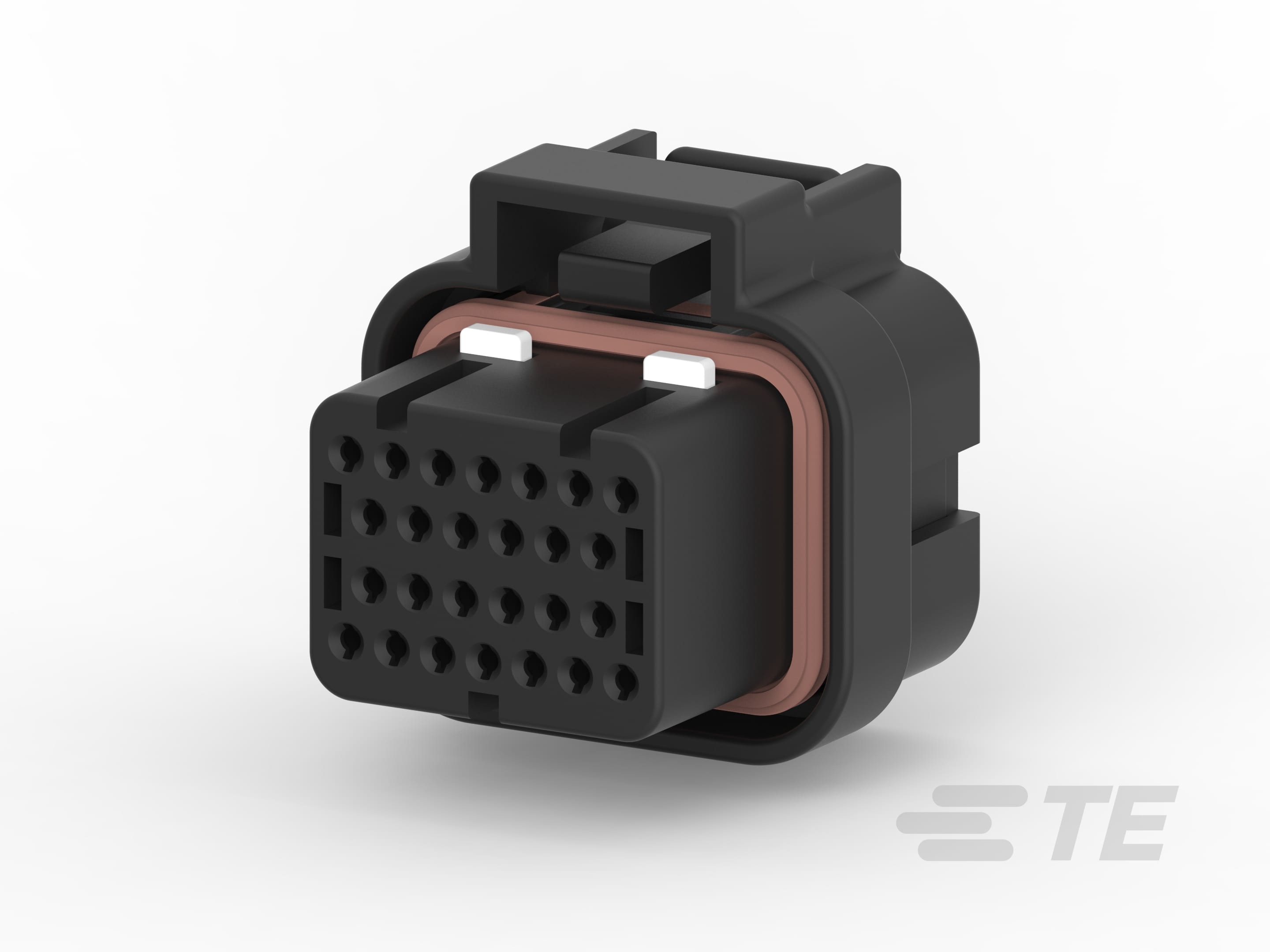

3900113-2621=PLUG HOUSING ASSY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-1437290-7

Active

TE Connectivity Raychem Cable Protection

3900113-2621=PLUG HOUSING ASSY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-1437290-7

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyester, Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	26
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3 mm
Pitch [x]	0.118 in

SUPERSEAL 1.0mm Series

Part	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish - Post	Mounting Type	Insulation Material	Contact Material	Voltage Rating	Pitch - Mating	Pitch - Mating	Style	Contact Type	Number of Positions	Termination	Contact Finish - Mating	Contact Shape	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Features	Number of Positions Loaded	Applications	Connector Type	Fastening Type	Contact Termination	Pin or Socket	Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Note	Color
TE Connectivity Raychem Cable Protection 2-6447232-3	Varies by Wire Gauge	27.4 mm	1.079 in	Tin	Through Hole	Polyester	Brass	250 VDC	0.118 in	3 mm	Board to Cable/Wire	Male Pin	34	Solder	Gold	Circular	0.157 in	4 mm	125 °C	-40 °C	Shrouded - 4 Wall	Mounting Flange Sealed	All	Automotive	Receptacle	Locking Ramp
TE Connectivity Raychem Cable Protection 1-1437284-0																											Crimp	Socket	Stamped	Tin
TE Connectivity Raychem Cable Protection 6473427-1	Varies by Wire Gauge	27.4 mm	1.079 in	Tin	Through Hole Right Angle	Polyester	Brass	250 VDC	0.118 in	3 mm	Board to Cable/Wire	Male Pin	60	Solder	Gold	Circular	0.157 in	4 mm	125 °C	-40 °C	Shrouded - 4 Wall	Mounting Flange Sealed	All	Automotive	Receptacle	Locking Ramp
TE Connectivity Raychem Cable Protection 3-1447221-4																											Crimp	Socket		Gold	16 µin	0.41 µm	20 AWG
TE Connectivity Raychem Cable Protection 1437284-9																											Crimp	Socket	Stamped	Gold				17.5 AWG	20 AWG
TE Connectivity Raychem Cable Protection 3-1437290-7					Free Hanging (In-Line)	Polyester Thermoplastic						Female Socket	26						125 °C	-40 °C					Plug	Latch Lock	Crimp									3 mm	0.118 in	Contacts Not Included	Black
TE Connectivity Raychem Cable Protection 1437284-1
TE Connectivity Raychem Cable Protection 9-6447232-4
TE Connectivity Raychem Cable Protection 4-1437290-0					Free Hanging (In-Line)	Polyester Thermoplastic						Female Socket	34						125 °C	-40 °C					Plug	Latch Lock	Crimp									3 mm	0.118 in	Contacts Not Included	Black
TE Connectivity Raychem Cable Protection 3-1437290-8					Free Hanging (In-Line)	Polyester Thermoplastic						Female Socket	26						125 °C	-40 °C					Plug	Latch Lock	Crimp									3 mm	0.118 in	Contacts Not Included	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 10.87
		20	$ 9.83
		40	$ 9.57
		60	$ 9.20
		100	$ 8.53
		260	$ 8.48
		500	$ 8.16
		1000	$ 7.28

Description

General part information

SUPERSEAL 1.0mm Series

26 Rectangular Connectors - Housings Plug Black 0.118" (3.00mm)

Documents

Technical documentation and resources
