346-058-521-201

Active

EDAC Inc.

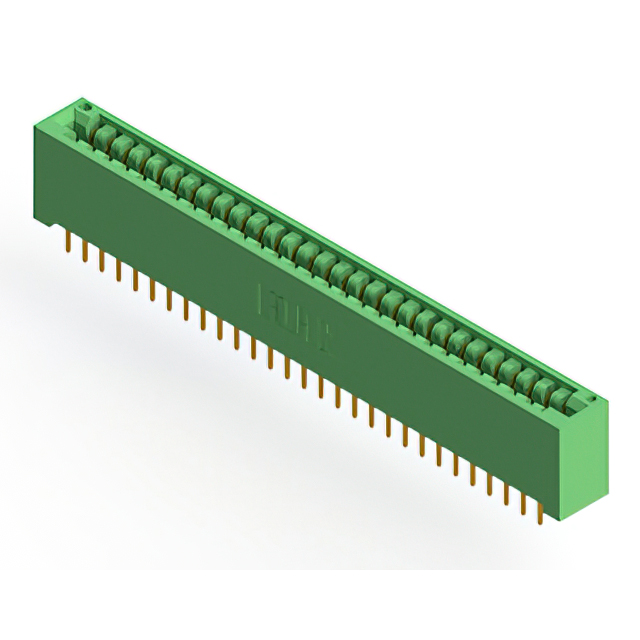

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

346-058-521-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-058-521-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	58
Number of Positions/Bay/Row	29
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

346-058 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Read Out	Mounting Type	Contact Finish	Color	Card Type	Number of Positions/Bay/Row	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Number of Positions	Gender	Contact Material	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Pitch [x]	Pitch [x]	Number of Rows	Features
EDAC Inc. 346-058-559-212	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole Right Angle	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder Wire Wrap	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	0.125 in	3.18 mm	2
EDAC Inc. 346-058-521-201	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder				0.125 in	3.18 mm	2
EDAC Inc. 346-058-500-858	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder Eyelet(s)		4-40 Threaded Insert Top Mount Opening		0.125 in	3.18 mm	2	Card Guides
EDAC Inc. 346-058-522-201	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder				0.125 in	3.18 mm	2
EDAC Inc. 346-058-526-803	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	0.125 in	3.18 mm	2
EDAC Inc. 346-058-560-202	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Board Edge Straddle Mount	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	0.125 in	3.18 mm	2	Card Extender
EDAC Inc. 346-058-558-258	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole Right Angle	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder Wire Wrap		4-40 Flush Mount Threaded Insert Top Opening		0.125 in	3.18 mm	2	Card Guides
EDAC Inc. 346-058-526-208	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder		4-40 Flush Mount Threaded Insert Top Opening		0.125 in	3.18 mm	2
EDAC Inc. 346-058-521-804	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder	3.96 mm	Top Mount Opening Unthreaded	0.156 in	0.125 in	3.18 mm	2
EDAC Inc. 346-058-560-208	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Board Edge Straddle Mount	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder		4-40 Flush Mount Threaded Insert Top Opening		0.125 in	3.18 mm	2	Card Extender
