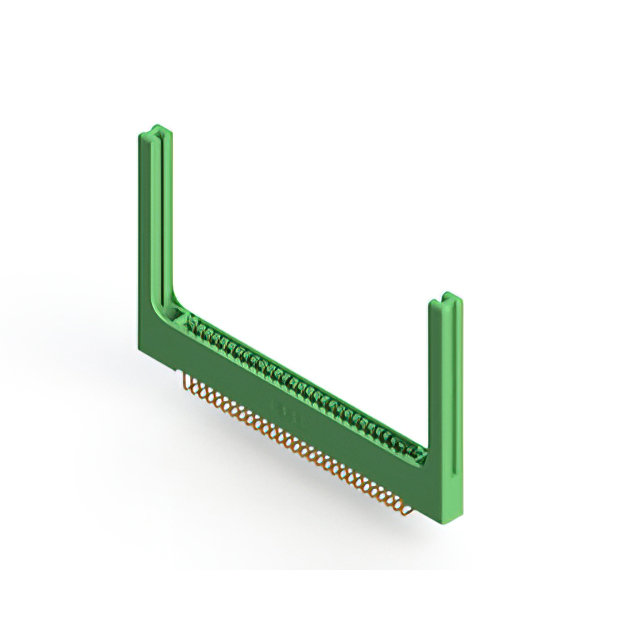

Connectors, Interconnects

346-058-558-258

Active

EDAC Inc.

CONN EDGE DUAL FMALE 58POS 0.125

Connectors, Interconnects

346-058-558-258

Active

EDAC Inc.

CONN EDGE DUAL FMALE 58POS 0.125

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-058-558-258

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	29, 58
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.125 in
Read Out	Dual
Termination	Wire Wrap, Solder
Termination Rows	2 rows

346-058 Series

...

Part	Number of Positions	Number of Rows	Contact Type	Contact Finish Thickness	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Gender	Card Thickness (Min)	Card Thickness (Max)	Read Out	Contact Finish	Contact Material	Card Type	Mounting Type	Pitch	Color	Material - Insulation	Termination Rows	Flange Feature Diameter	Flange Feature	Features
EDAC Inc. 346-058-500-201	29 58	2	Cantilever	10 Ąin	Solder Eyelet(s)	-40 °C	105 °C	Female	0.054 in	0.07 in	Dual	Gold	Copper Alloy	Dual Edge Non Specified	Through Hole	0.125 in	Green	Polyester Thermoplastic	2 rows
EDAC Inc. 346-058-559-212	29 58	2	Cantilever	10 Ąin	Solder Wire Wrap	-40 °C	105 °C	Female	0.054 in	0.07 in	Dual	Gold	Copper Alloy	Dual Edge Non Specified	Right Angle Through Hole	0.125 in	Green	Polyester Thermoplastic	2 rows	0.128 in	Flush Mount Side Opening Unthreaded
EDAC Inc. 346-058-559-803	29 58	2	Cantilever	10 Ąin	Solder Wire Wrap	-40 °C	105 °C	Female	0.054 in	0.07 in	Dual	Gold	Copper Alloy	Dual Edge Non Specified	Right Angle Through Hole	0.125 in	Green	Polyester Thermoplastic	2 rows	0.116 in	Floating Bobbin Top Mount Opening
EDAC Inc. 346-058-500-858	29 58	2	Cantilever	10 Ąin	Solder Eyelet(s)	-40 °C	105 °C	Female	0.054 in	0.07 in	Dual	Gold	Copper Alloy	Dual Edge Non Specified	Through Hole	0.125 in	Green	Polyester Thermoplastic	2 rows		4-40 Threaded Insert Top Mount Opening	Card Guides
EDAC Inc. 346-058-522-201	29 58	2	Cantilever	10 Ąin	Solder	-40 °C	105 °C	Female	0.054 in	0.07 in	Dual	Gold	Copper Alloy	Dual Edge Non Specified	Through Hole	0.125 in	Green	Polyester Thermoplastic	2 rows
EDAC Inc. 346-058-500-207	29 58	2	Cantilever	10 Ąin	Solder Eyelet(s)	-40 °C	105 °C	Female	0.054 in	0.07 in	Dual	Gold	Copper Alloy	Dual Edge Non Specified	Through Hole	0.125 in	Green	Polyester Thermoplastic	2 rows		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 346-058-526-803	29 58	2	Cantilever	10 Ąin	Solder	-40 °C	105 °C	Female	0.054 in	0.07 in	Dual	Gold	Copper Alloy	Dual Edge Non Specified	Through Hole	0.125 in	Green	Polyester Thermoplastic	2 rows	0.116 in	Floating Bobbin Top Mount Opening
EDAC Inc. 346-058-555-204	29 58	2	Cantilever	10 Ąin	Solder Eyelet(s)	-40 °C	105 °C	Female	0.054 in	0.07 in	Dual	Gold	Copper Alloy	Dual Edge Non Specified	Board Edge Straddle Mount	0.125 in	Green	Polyester Thermoplastic	2 rows	0.156 in	Flush Mount Top Opening Unthreaded	Card Extender
EDAC Inc. 346-058-560-202	29 58	2	Cantilever	10 Ąin	Solder	-40 °C	105 °C	Female	0.054 in	0.07 in	Dual	Gold	Copper Alloy	Dual Edge Non Specified	Board Edge Straddle Mount	0.125 in	Green	Polyester Thermoplastic	2 rows	0.128 in	Flush Mount Top Opening Unthreaded	Card Extender
EDAC Inc. 346-058-558-258	29 58	2	Cantilever	10 Ąin	Solder Wire Wrap	-40 °C	105 °C	Female	0.054 in	0.07 in	Dual	Gold	Copper Alloy	Dual Edge Non Specified	Right Angle Through Hole	0.125 in	Green	Polyester Thermoplastic	2 rows		4-40 Flush Mount Threaded Insert Top Opening	Card Guides
