346-058-559-212

Active

EDAC Inc.

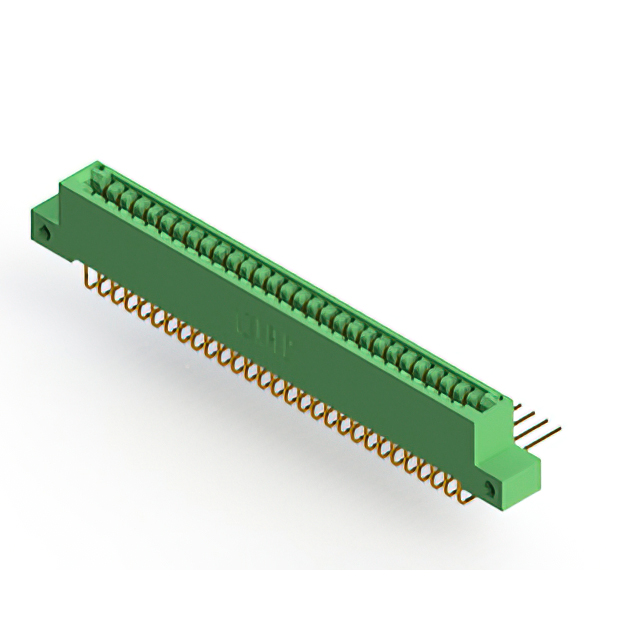

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN

346-058-559-212

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-058-559-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	58
Number of Positions/Bay/Row	29
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Wire Wrap, Solder
Termination Rows	2

346-058 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Read Out	Mounting Type	Contact Finish	Color	Card Type	Number of Positions/Bay/Row	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Number of Positions	Gender	Contact Material	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Pitch [x]	Pitch [x]	Number of Rows	Features
EDAC Inc. 346-058-559-212	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole Right Angle	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder Wire Wrap	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	0.125 in	3.18 mm	2
EDAC Inc. 346-058-521-201	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder				0.125 in	3.18 mm	2
EDAC Inc. 346-058-500-858	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder Eyelet(s)		4-40 Threaded Insert Top Mount Opening		0.125 in	3.18 mm	2	Card Guides
EDAC Inc. 346-058-522-201	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder				0.125 in	3.18 mm	2
EDAC Inc. 346-058-526-803	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	0.125 in	3.18 mm	2
EDAC Inc. 346-058-560-202	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Board Edge Straddle Mount	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	0.125 in	3.18 mm	2	Card Extender
EDAC Inc. 346-058-558-258	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole Right Angle	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder Wire Wrap		4-40 Flush Mount Threaded Insert Top Opening		0.125 in	3.18 mm	2	Card Guides
EDAC Inc. 346-058-526-208	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder		4-40 Flush Mount Threaded Insert Top Opening		0.125 in	3.18 mm	2
EDAC Inc. 346-058-521-804	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Through Hole	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder	3.96 mm	Top Mount Opening Unthreaded	0.156 in	0.125 in	3.18 mm	2
EDAC Inc. 346-058-560-208	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Dual	Board Edge Straddle Mount	Gold	Green	Non Specified - Dual Edge	29	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	58	Female	Copper Alloy	Solder		4-40 Flush Mount Threaded Insert Top Opening		0.125 in	3.18 mm	2	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.13
Newark	Each	1	$ 13.57
		100	$ 8.88
		250	$ 7.80
		500	$ 7.30
		1000	$ 6.15

Description

General part information

346-058 Series

58 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
