M52-5150545

Active

Harwin Inc.

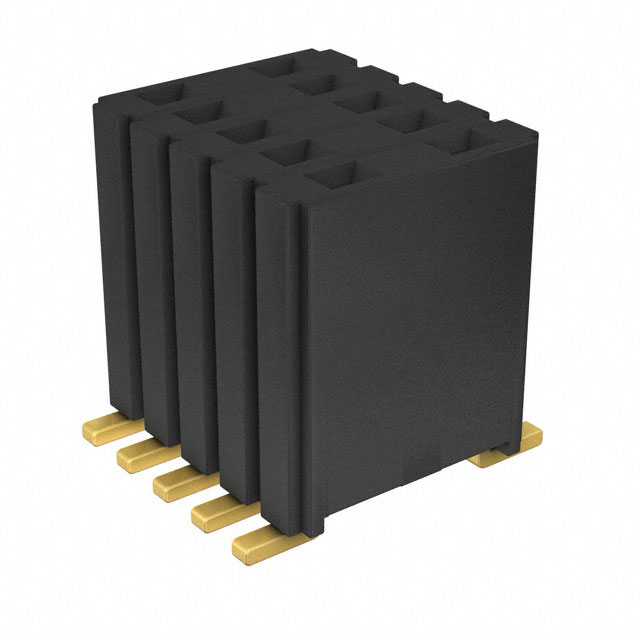

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 10 CONTACTS, SURFACE MOUNT, ARCHER M52 SERIES

Search across all available documentation for this part.

Active

Harwin Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 10 CONTACTS, SURFACE MOUNT, ARCHER M52 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	M52-5150545

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.69 mm
Insulation Height	0.224 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	8.5 mm, 9.77 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Insulation Material	Termination	Connector Type	Contact Material	Number of Positions	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Fastening Type	Applications	Insulation Color	Contact Finish - Mating	Mated Stacking Heights	Contact Shape	Mounting Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]
Harwin Inc. M52-5150445	Nylon 6T Polyamide (PA6T)	Solder	Receptacle	Phosphor Bronze	8	2	0.05 in	1.27 mm	5.69 mm	0.224 in	Push-Pull	General Purpose Medical Telecommunications	Black	Gold	8.5 mm 9.77 mm	Square	Surface Mount	All	2.54 mm	0.1 in	Female Socket	UL94 V-0	-40 °C	105 ░C
Harwin Inc. M52-5150545	Nylon 6T Polyamide (PA6T)	Solder	Receptacle	Phosphor Bronze	10	2	0.05 in	1.27 mm	5.69 mm	0.224 in	Push-Pull	General Purpose Medical Telecommunications	Black	Gold	8.5 mm 9.77 mm	Square	Surface Mount	All	2.54 mm	0.1 in	Female Socket	UL94 V-0	-40 °C	105 ░C
Harwin Inc. M52-5151045	Nylon 6T Polyamide (PA6T)	Solder	Receptacle	Phosphor Bronze	20	2	0.05 in	1.27 mm	5.69 mm	0.224 in	Push-Pull	General Purpose Medical Telecommunications	Black	Gold	8.5 mm 9.77 mm	Square	Surface Mount	All	2.54 mm	0.1 in	Female Socket	UL94 V-0	-40 °C	105 ░C
Harwin Inc. M52-5151245	Nylon 6T Polyamide (PA6T)	Solder	Receptacle	Phosphor Bronze	24	2	0.05 in	1.27 mm	5.69 mm	0.224 in	Push-Pull	General Purpose Medical Telecommunications	Black	Gold	8.5 mm 9.77 mm	Square	Surface Mount	All	2.54 mm	0.1 in	Female Socket	UL94 V-0	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
