M52-5151245

Obsolete

Harwin Inc.

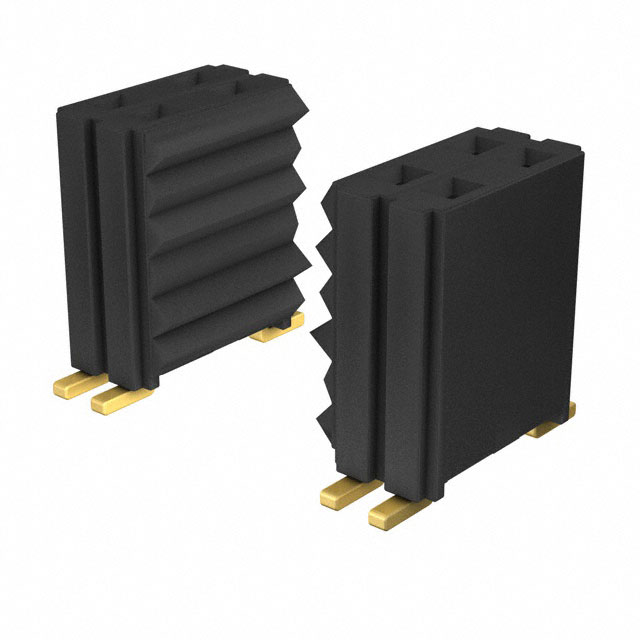

CONN RCPT 24POS 0.05 GOLD SMD

Search across all available documentation for this part.

Obsolete

Harwin Inc.

CONN RCPT 24POS 0.05 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	M52-5151245

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.69 mm
Insulation Height	0.224 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	8.5 mm, 9.77 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Insulation Material	Termination	Connector Type	Contact Material	Number of Positions	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Fastening Type	Applications	Insulation Color	Contact Finish - Mating	Mated Stacking Heights	Contact Shape	Mounting Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]
Harwin Inc. M52-5150445	Nylon 6T Polyamide (PA6T)	Solder	Receptacle	Phosphor Bronze	8	2	0.05 in	1.27 mm	5.69 mm	0.224 in	Push-Pull	General Purpose Medical Telecommunications	Black	Gold	8.5 mm 9.77 mm	Square	Surface Mount	All	2.54 mm	0.1 in	Female Socket	UL94 V-0	-40 °C	105 ░C
Harwin Inc. M52-5150545	Nylon 6T Polyamide (PA6T)	Solder	Receptacle	Phosphor Bronze	10	2	0.05 in	1.27 mm	5.69 mm	0.224 in	Push-Pull	General Purpose Medical Telecommunications	Black	Gold	8.5 mm 9.77 mm	Square	Surface Mount	All	2.54 mm	0.1 in	Female Socket	UL94 V-0	-40 °C	105 ░C
Harwin Inc. M52-5151045	Nylon 6T Polyamide (PA6T)	Solder	Receptacle	Phosphor Bronze	20	2	0.05 in	1.27 mm	5.69 mm	0.224 in	Push-Pull	General Purpose Medical Telecommunications	Black	Gold	8.5 mm 9.77 mm	Square	Surface Mount	All	2.54 mm	0.1 in	Female Socket	UL94 V-0	-40 °C	105 ░C
Harwin Inc. M52-5151245	Nylon 6T Polyamide (PA6T)	Solder	Receptacle	Phosphor Bronze	24	2	0.05 in	1.27 mm	5.69 mm	0.224 in	Push-Pull	General Purpose Medical Telecommunications	Black	Gold	8.5 mm 9.77 mm	Square	Surface Mount	All	2.54 mm	0.1 in	Female Socket	UL94 V-0	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
