M52-5151045
ActiveHarwin Inc.

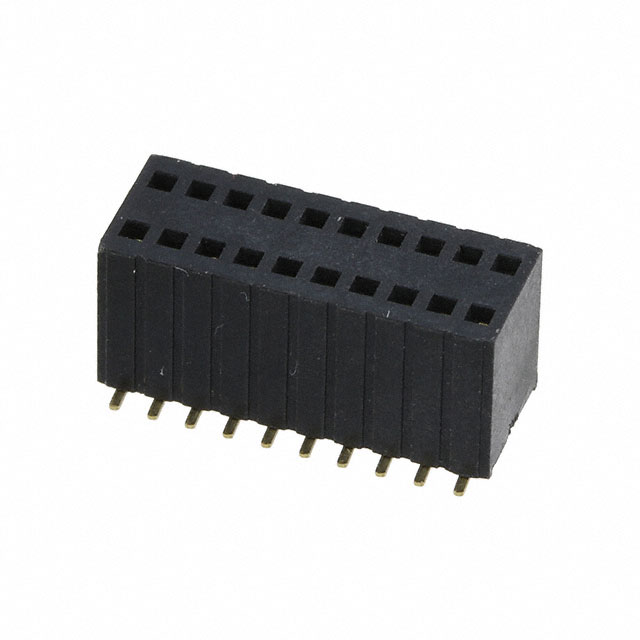

BOARD-TO-BOARD CONNECTOR, VERTICAL, ARCHER M52 SERIES, SURFACE MOUNT, RECEPTACLE, 20, 1.27 MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M52-5151045
ActiveHarwin Inc.
BOARD-TO-BOARD CONNECTOR, VERTICAL, ARCHER M52 SERIES, SURFACE MOUNT, RECEPTACLE, 20, 1.27 MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M52-5151045 |
|---|---|
| Applications | General Purpose, Medical, Telecommunications |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 5.69 mm |
| Insulation Height | 0.224 in |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 8.5 mm, 9.77 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
M52-515 Series
| Part | Insulation Material | Termination | Connector Type | Contact Material | Number of Positions | Number of Rows | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Fastening Type | Applications | Insulation Color | Contact Finish - Mating | Mated Stacking Heights | Contact Shape | Mounting Type | Number of Positions Loaded | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Nylon 6T Polyamide (PA6T) | Solder | Receptacle | Phosphor Bronze | 8 | 2 | 0.05 in | 1.27 mm | 5.69 mm | 0.224 in | Push-Pull | General Purpose Medical Telecommunications | Black | Gold | 8.5 mm 9.77 mm | Square | Surface Mount | All | 2.54 mm | 0.1 in | Female Socket | UL94 V-0 | -40 °C | 105 ░C |
Harwin Inc. | Nylon 6T Polyamide (PA6T) | Solder | Receptacle | Phosphor Bronze | 10 | 2 | 0.05 in | 1.27 mm | 5.69 mm | 0.224 in | Push-Pull | General Purpose Medical Telecommunications | Black | Gold | 8.5 mm 9.77 mm | Square | Surface Mount | All | 2.54 mm | 0.1 in | Female Socket | UL94 V-0 | -40 °C | 105 ░C |
Harwin Inc. | Nylon 6T Polyamide (PA6T) | Solder | Receptacle | Phosphor Bronze | 20 | 2 | 0.05 in | 1.27 mm | 5.69 mm | 0.224 in | Push-Pull | General Purpose Medical Telecommunications | Black | Gold | 8.5 mm 9.77 mm | Square | Surface Mount | All | 2.54 mm | 0.1 in | Female Socket | UL94 V-0 | -40 °C | 105 ░C |
Harwin Inc. | Nylon 6T Polyamide (PA6T) | Solder | Receptacle | Phosphor Bronze | 24 | 2 | 0.05 in | 1.27 mm | 5.69 mm | 0.224 in | Push-Pull | General Purpose Medical Telecommunications | Black | Gold | 8.5 mm 9.77 mm | Square | Surface Mount | All | 2.54 mm | 0.1 in | Female Socket | UL94 V-0 | -40 °C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M52-515 Series
20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
