NHD-12864WG-BTFH-V#N

Active

Newhaven Display Intl

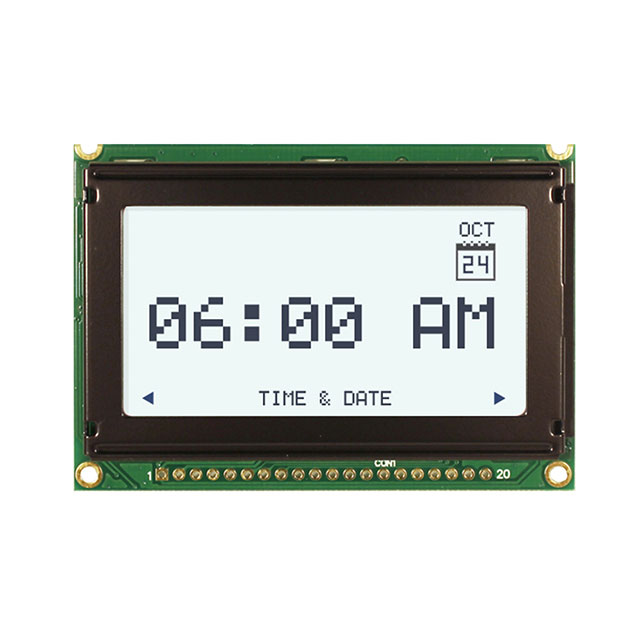

LCD MOD GRAPH 128X64 WH TRANSFL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LCD Safe Handling Procedure +1

NHD-12864WG-BTFH-V#N

Active

Newhaven Display Intl

LCD MOD GRAPH 128X64 WH TRANSFL

Deep-Dive with AI

DocumentsDatasheet LCD Safe Handling Procedure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-12864WG-BTFH-V#N

Backlight	LED - White
Controller Type	KS0108
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.43 mm
Dot Pitch [y]	0.43 mm
Dot Pixels [x]	128
Dot Pixels [y]	64
Dot Size [x]	0.39 mm
Dot Size [y]	0.39 mm
Interface	Parallel, 8-Bit
Viewing Area [x]	60 mm
Viewing Area [y]	31.26 mm

NHD-12864 Series

Part	Interface	Display Mode	Dot Size [custom]	Dot Size [custom]	Display Type	Dot Pitch [x]	Dot Pitch [y]	Backlight	Dot Pixels [y]	Dot Pixels [x]	Viewing Area [x]	Viewing Area [y]	Dot Size [x]	Dot Size [y]	Controller Type	Graphics Color	Background Color	Background Color	Viewing Area [custom]	Viewing Area [custom]	Dot Size [z]
Newhaven Display Intl NHD-12864AZ-NSW-BBW	Parallel 8-Bit	Transmissive	0.48 mm	0.48 mm	STN - Super-Twisted Nematic	0.52 mm	0.52 mm	LED - White	64	128	72 mm	40 mm
Newhaven Display Intl NHD-12864WG-BTGH-T#N	Parallel 8-Bit	Transflective			STN - Super-Twisted Nematic	0.43 mm	0.43 mm	LED - White	64	128	60 mm	31.26 mm	0.39 mm	0.39 mm	KS0108
Newhaven Display Intl NHD-12864WG-FTGH-VZ#	Parallel 8-Bit	Transflective	0.48 mm	0.48 mm	STN - Super-Twisted Nematic	0.52 mm	0.52 mm	LED - White	64	128	72 mm	40 mm			T6963C	Blue	Gray
Newhaven Display Intl NHD-12864AZ-FL-GBW	Parallel 8-Bit	Transflective	0.48 mm	0.48 mm	STN - Super-Twisted Nematic	0.52 mm	0.52 mm		64	128	72 mm	40 mm			KS0108
Newhaven Display Intl NHD-12864WG-BTMI-V#N	Parallel 8-Bit	Transmissive			STN - Super-Twisted Nematic	0.43 mm	0.43 mm	LED - White	64	128	60 mm	31.26 mm	0.39 mm	0.39 mm	KS0108
Newhaven Display Intl NHD-12864WG-FTMI-VZ#	Parallel 8-Bit	Transmissive	0.48 mm	0.48 mm	STN - Super-Twisted Nematic	0.52 mm	0.52 mm	LED - White	64	128	72 mm	40 mm			T6963C	Blue White	Blue	White
Newhaven Display Intl NHD-12864MZ-FSW-GBW-L	Parallel 8-Bit	Transflective			STN - Super-Twisted Nematic	0.39 mm	0.49 mm	LED - White	64	128			0.35 mm	0.45 mm	KS0108				54 mm	36 mm
Newhaven Display Intl NHD-12864WG-BTFH-V#N	Parallel 8-Bit	Transflective			FSTN - Film Super-Twisted Nematic	0.43 mm	0.43 mm	LED - White	64	128	60 mm	31.26 mm	0.39 mm	0.39 mm	KS0108
Newhaven Display Intl NHD-12864WX-T1TFH#	Parallel/Serial	Transflective			FSTN - Film Super-Twisted Nematic	0.2 mm	0.2 mm	LED - White	64	128	29.58 mm	17.98 mm	0.18 mm	0.23 mm		Black	White
Newhaven Display Intl NHD-12864WG-CTFH-V#N	Parallel 8-Bit	Transflective			FSTN - Film Super-Twisted Nematic	0.44 mm	0.6 mm	LED - White	64	128	62 mm	44 mm		0.42 mm	KS0108						0.58 mm
