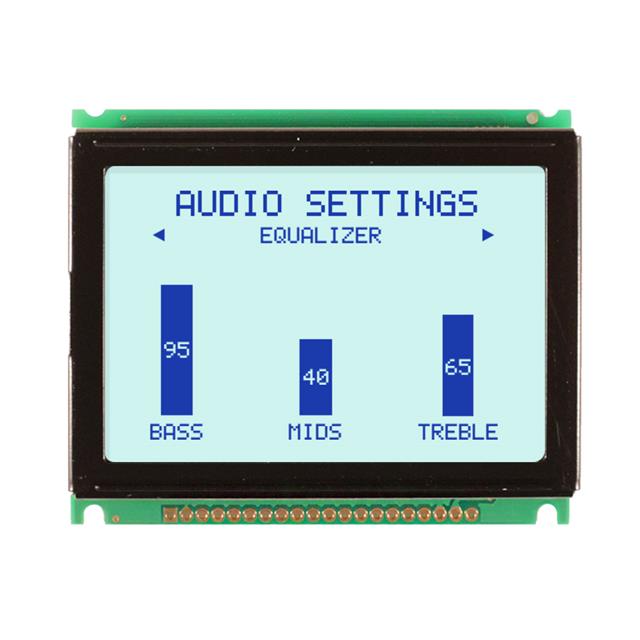

NHD-12864MZ-FSW-GBW-L
ActiveNewhaven Display Intl
LCD MOD GRAPH 128X64 WH TRANSFL
Deep-Dive with AI
Search across all available documentation for this part.
NHD-12864MZ-FSW-GBW-L
ActiveNewhaven Display Intl
LCD MOD GRAPH 128X64 WH TRANSFL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-12864MZ-FSW-GBW-L |
|---|---|
| Backlight | LED - White |
| Controller Type | KS0108 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch [x] | 0.39 mm |
| Dot Pitch [y] | 0.49 mm |
| Dot Pixels [x] | 128 |
| Dot Pixels [y] | 64 |
| Dot Size [x] | 0.35 mm |
| Dot Size [y] | 0.45 mm |
| Interface | Parallel, 8-Bit |
| Viewing Area [custom] | 54 mm |
| Viewing Area [custom] | 36 mm |
NHD-12864 Series
| Part | Interface | Display Mode | Dot Size [custom] | Dot Size [custom] | Display Type | Dot Pitch [x] | Dot Pitch [y] | Backlight | Dot Pixels [y] | Dot Pixels [x] | Viewing Area [x] | Viewing Area [y] | Dot Size [x] | Dot Size [y] | Controller Type | Graphics Color | Background Color | Background Color | Viewing Area [custom] | Viewing Area [custom] | Dot Size [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Newhaven Display Intl | Parallel 8-Bit | Transmissive | 0.48 mm | 0.48 mm | STN - Super-Twisted Nematic | 0.52 mm | 0.52 mm | LED - White | 64 | 128 | 72 mm | 40 mm | |||||||||
Newhaven Display Intl | Parallel 8-Bit | Transflective | STN - Super-Twisted Nematic | 0.43 mm | 0.43 mm | LED - White | 64 | 128 | 60 mm | 31.26 mm | 0.39 mm | 0.39 mm | KS0108 | ||||||||
Newhaven Display Intl | Parallel 8-Bit | Transflective | 0.48 mm | 0.48 mm | STN - Super-Twisted Nematic | 0.52 mm | 0.52 mm | LED - White | 64 | 128 | 72 mm | 40 mm | T6963C | Blue | Gray | ||||||
Newhaven Display Intl | Parallel 8-Bit | Transflective | 0.48 mm | 0.48 mm | STN - Super-Twisted Nematic | 0.52 mm | 0.52 mm | 64 | 128 | 72 mm | 40 mm | KS0108 | |||||||||
Newhaven Display Intl | Parallel 8-Bit | Transmissive | STN - Super-Twisted Nematic | 0.43 mm | 0.43 mm | LED - White | 64 | 128 | 60 mm | 31.26 mm | 0.39 mm | 0.39 mm | KS0108 | ||||||||
Newhaven Display Intl | Parallel 8-Bit | Transmissive | 0.48 mm | 0.48 mm | STN - Super-Twisted Nematic | 0.52 mm | 0.52 mm | LED - White | 64 | 128 | 72 mm | 40 mm | T6963C | Blue White | Blue | White | |||||
Newhaven Display Intl | Parallel 8-Bit | Transflective | STN - Super-Twisted Nematic | 0.39 mm | 0.49 mm | LED - White | 64 | 128 | 0.35 mm | 0.45 mm | KS0108 | 54 mm | 36 mm | ||||||||
Newhaven Display Intl | Parallel 8-Bit | Transflective | FSTN - Film Super-Twisted Nematic | 0.43 mm | 0.43 mm | LED - White | 64 | 128 | 60 mm | 31.26 mm | 0.39 mm | 0.39 mm | KS0108 | ||||||||
Newhaven Display Intl | Parallel/Serial | Transflective | FSTN - Film Super-Twisted Nematic | 0.2 mm | 0.2 mm | LED - White | 64 | 128 | 29.58 mm | 17.98 mm | 0.18 mm | 0.23 mm | Black | White | |||||||
Newhaven Display Intl | Parallel 8-Bit | Transflective | FSTN - Film Super-Twisted Nematic | 0.44 mm | 0.6 mm | LED - White | 64 | 128 | 62 mm | 44 mm | 0.42 mm | KS0108 | 0.58 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 25.26 | |
| 5 | $ 23.74 | |||
| 10 | $ 22.23 | |||
| 50 | $ 20.97 | |||
| 100 | $ 19.96 | |||
| 250 | $ 18.95 | |||
| 500 | $ 18.19 | |||
Description
General part information
NHD-12864 Series
Graphic LCD Display Module Transflective STN - Super-Twisted Nematic Parallel, 8-Bit 128 x 64
