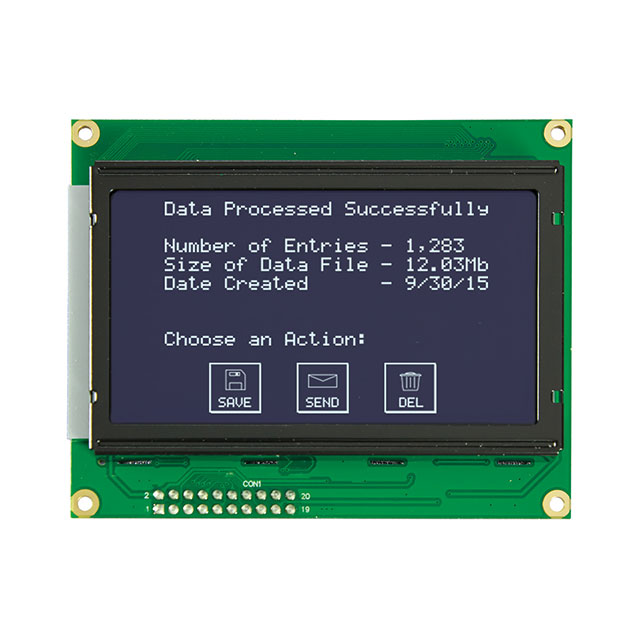

Specification	NHD-12864WG-FTTI-VZ#000

Background Color	Black
Background Color (Inverted)	White
Backlight Color	White
Backlight Type	LED
Controller Type	T6963C
Display Mode	Transmissive
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pitch Height	0.52 mm
Dot Pitch Width	0.52 mm
Dot Pixels (Horizontal)	128 pixels
Dot Pixels (Vertical)	64 pixels
Dot Size Height	0.48 mm
Dot Size Width	0.48 mm
Graphics Color	White, Black - Inverted
Interface	Parallel
Interface Data Width	8 Bit
Viewing Area Height	40 mm
Viewing Area Width	72 mm

NHD-12864 Series

Part	Dot Pitch Width	Dot Pitch Height	Dot Size Width	Dot Size Height	Display Mode	Interface Data Width	Interface	Display Type	Dot Pixels (Horizontal)	Dot Pixels (Vertical)	Backlight Type	Backlight Color	Viewing Area Height	Viewing Area Width	Controller Type	Graphics Color	Background Color	Background Color (Inverted)
Newhaven Display Intl NHD-12864AZ-NSW-BBW	0.52 mm	0.52 mm	0.48 mm	0.48 mm	Transmissive	8 Bit	Parallel	STN - Super-Twisted Nematic	128 pixels	64 pixels	LED	White	40 mm	72 mm
Newhaven Display Intl NHD-12864WG-BTGH-T#N	0.43 mm	0.43 mm	0.39 mm	0.39 mm	Transflective	8 Bit	Parallel	STN - Super-Twisted Nematic	128 pixels	64 pixels	LED	White	31.26 mm	60 mm	KS0108
Newhaven Display Intl NHD-12864WG-BTGH-TN#
Newhaven Display Intl NHD-12864WG-FTGH-VZ#	0.52 mm	0.52 mm	0.48 mm	0.48 mm	Transflective	8 Bit	Parallel	STN - Super-Twisted Nematic	128 pixels	64 pixels	LED	White	40 mm	72 mm	T6963C	Blue Gray - Inverted	Gray	Blue
Newhaven Display Intl NHD-12864AZ-FL-GBW	0.52 mm	0.52 mm	0.48 mm	0.48 mm	Transflective	8 Bit	Parallel	STN - Super-Twisted Nematic	128 pixels	64 pixels	LED	Green Yellow	40 mm	72 mm	KS0108
Newhaven Display Intl NHD-12864WG-BTMI-V#N	0.43 mm	0.43 mm	0.39 mm	0.39 mm	Transmissive	8 Bit	Parallel	STN - Super-Twisted Nematic	128 pixels	64 pixels	LED	White	31.26 mm	60 mm	KS0108
Newhaven Display Intl NHD-12864WG-FTMI-VZ#	0.52 mm	0.52 mm	0.48 mm	0.48 mm	Transmissive	8 Bit	Parallel	STN - Super-Twisted Nematic	128 pixels	64 pixels	LED	White	40 mm	72 mm	T6963C	Blue - Inverted White	Blue	White
Newhaven Display Intl NHD-12864WG-FTTI-VZ#000	0.52 mm	0.52 mm	0.48 mm	0.48 mm	Transmissive	8 Bit	Parallel	FSTN - Film Super-Twisted Nematic	128 pixels	64 pixels	LED	White	40 mm	72 mm	T6963C	Black - Inverted White	Black	White
Newhaven Display Intl NHD-12864MZ-FSW-GBW-L	0.39 mm	0.49 mm	0.35 mm	0.45 mm	Transflective	8 Bit	Parallel	STN - Super-Twisted Nematic	128 pixels	64 pixels	LED	White	36 mm	54 mm	KS0108
Newhaven Display Intl NHD-12864WG-BTFH-V#N	0.43 mm	0.43 mm	0.39 mm	0.39 mm	Transflective	8 Bit	Parallel	FSTN - Film Super-Twisted Nematic	128 pixels	64 pixels	LED	White	31.26 mm	60 mm	KS0108
