628-17W2624-3TC

Active

EDAC Inc.

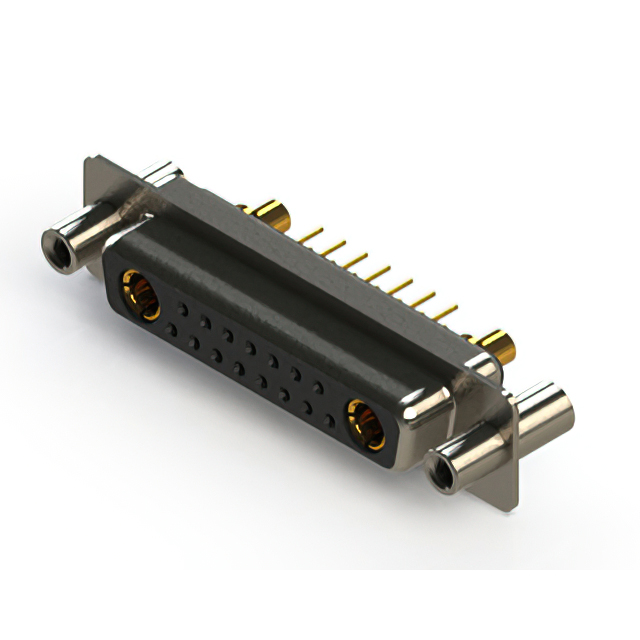

CONN D-SUB RCPT 17POS VERT SLDR

628-17W2624-3TC

Active

EDAC Inc.

CONN D-SUB RCPT 17POS VERT SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

628-17W Series

17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	628-17W2624-3TC

Color	Black
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	30A, 5A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Finish	Tin Plated
Flange Feature	Board Side (M3), Mating Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions (Normal)	15
Number of Positions (Power)	2
Number of Positions (Total)	17
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	17W2
Shell Material	Steel
Shell Size	3
Termination	Solder
Voltage Rating	125 V

628-17W Series

...

Part	Flange Feature	Contact Finish Thickness	Mounting Type	Contact Finish	Finish	Shell Material	Features	Connector Style	Number of Rows	Shell Size	Part Code	Connector Layout	Current Rating Options	Contact Type	Termination	Material Flammability Rating	Number of Positions (Power)	Number of Positions (Total)	Number of Positions (Normal)	Connector Type	Contact Material	Voltage Rating	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Color	Contact Finish Thickness (string set options)	Contact Finish Thickness	Number of Positions (Special)	Position Types	Number of Positions (Standard)
EDAC Inc. 628-17W5624-4TD	Board Side (M3)	30 µin	Through Hole	Gold	Tin Plated	Steel	Board Lock Shielded	Combo D-Sub	2	4	17W5	C DC	40A 5A	Power Signal	Solder	UL94 V-0	5	17	12	Female Sockets Receptacle	Copper Alloy	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black
EDAC Inc. 628-17W2222-2TA	Board Side (M3)	0	Free Hanging (In-Line)	Gold	Tin Plated	Steel	Shielded	Combo D-Sub	2	3	17W2	B DB	20A 5A	Power Signal	Solder Cup	UL94 V-0	2	17	15	Female Sockets Receptacle	Copper Alloy	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Flash	Flash
EDAC Inc. 628-17W5224-7T6	Mating Side (4-40)	0	Through Hole	Gold	Tin Plated	Steel	Board Lock Shielded	Combo D-Sub	2	4	17W5	C DC		Coax Signal	Solder	UL94 V-0		17		Female Sockets Receptacle	Copper Alloy	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Flash	Flash	5	Coax	12
EDAC Inc. 628-17W5224-7T5	Board Side (4-40)	0	Through Hole	Gold	Tin Plated	Steel	Board Lock Shielded	Combo D-Sub	2	4	17W5	C DC		Coax Signal	Solder	UL94 V-0		17		Female Sockets Receptacle	Copper Alloy	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Flash	Flash	5	Coax	12
EDAC Inc. 628-17W5624-7T1	Housing Shell (Unthreaded)	30 µin	Through Hole	Gold	Tin Plated	Steel	Shielded	Combo D-Sub	2	4	17W5	C DC		Coax Signal	Solder	UL94 V-0		17		Female Sockets Receptacle	Copper Alloy	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black			5	Coax	12
EDAC Inc. 628-17W5224-1TA	Board Side (M3)	0	Through Hole	Gold	Tin Plated	Steel	Shielded	Combo D-Sub	2	4	17W5	C DC	10A 5A	Power Signal	Solder	UL94 V-0	5	17	12	Female Sockets Receptacle	Copper Alloy	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Flash	Flash
EDAC Inc. 628-17W2224-7T3	Board Side (4-40)	0	Through Hole	Gold	Tin Plated	Steel	Shielded	Combo D-Sub	2	3	17W2	B DB		Coax Signal	Solder	UL94 V-0		17		Female Sockets Receptacle	Copper Alloy	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Flash	Flash	2	Coax	15
EDAC Inc. 628-17W2224-7N3	Board Side (4-40)	0	Through Hole	Gold	Nickel Plated	Steel	Shielded	Combo D-Sub	2	3	17W2	B DB		Coax Signal	Solder	UL94 V-0		17		Female Sockets Receptacle	Copper Alloy	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Flash	Flash	2	Coax	15
EDAC Inc. 628-17W5224-5TA	Board Side (M3)	0	Through Hole	Gold	Tin Plated	Steel	Shielded	Combo D-Sub	2	4	17W5	C DC		Coax Signal	Solder	UL94 V-0		17		Female Sockets Receptacle	Copper Alloy	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black	Flash	Flash	5	Coax	12
EDAC Inc. 628-17W2624-3TC	Board Side (M3) Mating Side (M3)	30 µin	Through Hole	Gold	Tin Plated	Steel	Shielded	Combo D-Sub	2	3	17W2	B DB	30A 5A	Power Signal	Solder	UL94 V-0	2	17	15	Female Sockets Receptacle	Copper Alloy	125 V	Polyester Thermoplastic	125 °C	-55 °C	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

628-17W2624-3TC | Datasheet
