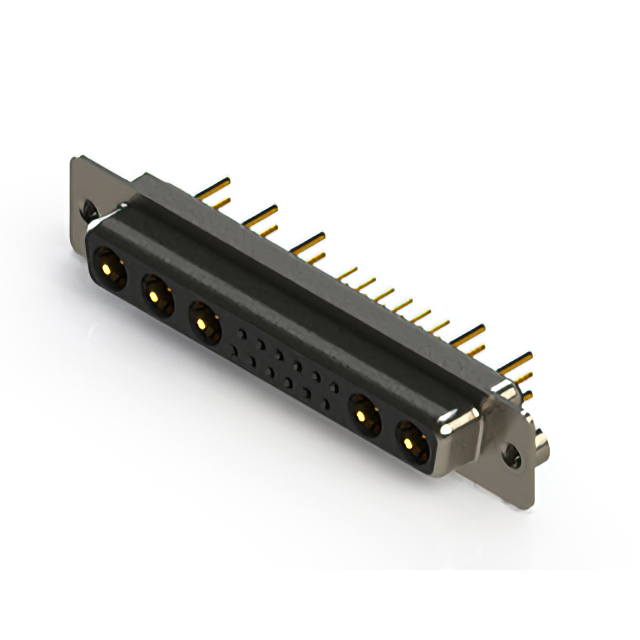

628-17W5224-5TA

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DC-17W5, RECEPTACLE, 17 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

628-17W5224-5TA

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DC-17W5, RECEPTACLE, 17 CONTACTS

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-17W5224-5TA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions [custom]	12
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C), 17W5
Termination	Solder
Voltage Rating	125 VDC

628-17W Series

...

Part	Shell Size, Connector Layout	Number of Rows	Contact Finish	Flange Feature	Dielectric Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Termination	Contact Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Material Flammability Rating	Connector Style	Number of Positions [custom]	Number of Positions [custom]	Voltage Rating	Current Rating (Amps)	Number of Positions [custom]	Contact Finish Thickness	Number of Positions [custom]	Current Rating (Amps)	Shell Material, Finish	Number of Positions [custom]	Number of Positions [custom]	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 628-17W5624-4TD	17W5 4 (DC C)	2	Gold	Board Side (M3)	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Board Lock Shielded	Black	Solder	Signal and Power	Copper Alloy	0.76 Ám	30 Áin	Through Hole	UL94 V-0	Combo D-Sub	5	12	125 VDC	5 A 40 A
EDAC Inc. 628-17W2222-2TA	17W2 3 (DB B)	2	Gold	Board Side (M3)	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black		Signal and Power	Copper Alloy			Free Hanging (In-Line)	UL94 V-0	Combo D-Sub	2		125 VDC	5 A 20 A	15	Flash
EDAC Inc. 628-17W5224-7T6	17W5 4 (DC C)	2	Gold	4-40	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Board Lock Shielded	Black	Solder	Coax Signal	Copper Alloy			Through Hole	UL94 V-0	Combo D-Sub			125 VDC		12	Flash	5
EDAC Inc. 628-17W5624-7T1	17W5 4 (DC C)	2	Gold	Housing/Shell (Unthreaded)	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black	Solder	Coax Signal	Copper Alloy	0.76 Ám	30 Áin	Through Hole	UL94 V-0	Combo D-Sub			125 VDC		12		5
EDAC Inc. 628-17W5224-1TA	17W5 4 (DC C)	2	Gold	Board Side (M3)	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black	Solder	Signal and Power	Copper Alloy			Through Hole	UL94 V-0	Combo D-Sub	5	12	125 VDC			Flash		10A 5A
EDAC Inc. 628-17W2224-7N3	17W2 3 (DB B)	2	Gold	4-40 Board Side	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black	Solder	Coax Signal	Copper Alloy			Through Hole	UL94 V-0	Combo D-Sub			125 VDC		15	Flash			Nickel Plated Steel	2	17
EDAC Inc. 628-17W5224-5TA	17W5 4 (DC C)	2	Gold	Board Side (M3)	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black	Solder	Coax Signal	Copper Alloy			Through Hole	UL94 V-0	Combo D-Sub			125 VDC		12	Flash	5
EDAC Inc. 628-17W2624-3TC	17W2 3 (DB B)	2	Gold		Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black	Solder	Signal and Power	Copper Alloy	0.76 Ám	30 Áin	Through Hole	UL94 V-0	Combo D-Sub	2		125 VDC	5 A 30 A	15							M3	M3
EDAC Inc. 628-17W5222-4N2	17W5 4 (DC C)	2	Gold	4-40 Board Side	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black		Signal and Power	Copper Alloy			Free Hanging (In-Line)	UL94 V-0	Combo D-Sub	5	12	125 VDC	5 A 40 A		Flash			Nickel Plated Steel
EDAC Inc. 628-17W2222-3T2	17W2 3 (DB B)	2	Gold	4-40 Board Side	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black		Signal and Power	Copper Alloy			Free Hanging (In-Line)	UL94 V-0	Combo D-Sub	2		125 VDC	5 A 30 A	15	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 12.32
Newark	Each	1	$ 15.30
		250	$ 14.02
		500	$ 12.94
		1000	$ 12.47
		2500	$ 11.02

Description

General part information

628-17W Series

17 (12 + 5 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
