628-17W5624-4TD
ActiveEDAC Inc.

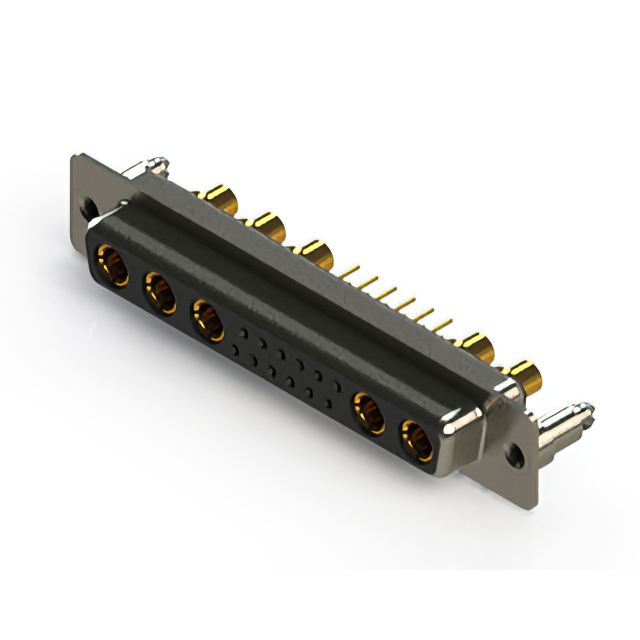

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DC-17W5, RECEPTACLE, 17 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
628-17W5624-4TD
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DC-17W5, RECEPTACLE, 17 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-17W5624-4TD |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded, Board Lock |
| Flange Feature | Board Side (M3) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 5 |
| Number of Positions [custom] | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 4 (DC, C), 17W5 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
628-17W Series
...
| Part | Shell Size, Connector Layout | Number of Rows | Contact Finish | Flange Feature | Dielectric Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Color | Termination | Contact Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Material Flammability Rating | Connector Style | Number of Positions [custom] | Number of Positions [custom] | Voltage Rating | Current Rating (Amps) | Number of Positions [custom] | Contact Finish Thickness | Number of Positions [custom] | Current Rating (Amps) | Shell Material, Finish | Number of Positions [custom] | Number of Positions [custom] | Flange Feature [custom] | Flange Feature [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 17W5 4 (DC C) | 2 | Gold | Board Side (M3) | Polyester Thermoplastic | Receptacle Female Sockets | -55 °C | 125 °C | Board Lock Shielded | Black | Solder | Signal and Power | Copper Alloy | 0.76 Ám | 30 Áin | Through Hole | UL94 V-0 | Combo D-Sub | 5 | 12 | 125 VDC | 5 A 40 A | |||||||||
EDAC Inc. | 17W2 3 (DB B) | 2 | Gold | Board Side (M3) | Polyester Thermoplastic | Receptacle Female Sockets | -55 °C | 125 °C | Shielded | Black | Signal and Power | Copper Alloy | Free Hanging (In-Line) | UL94 V-0 | Combo D-Sub | 2 | 125 VDC | 5 A 20 A | 15 | Flash | |||||||||||
EDAC Inc. | 17W5 4 (DC C) | 2 | Gold | 4-40 | Polyester Thermoplastic | Receptacle Female Sockets | -55 °C | 125 °C | Board Lock Shielded | Black | Solder | Coax Signal | Copper Alloy | Through Hole | UL94 V-0 | Combo D-Sub | 125 VDC | 12 | Flash | 5 | |||||||||||
EDAC Inc. | 17W5 4 (DC C) | 2 | Gold | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Receptacle Female Sockets | -55 °C | 125 °C | Shielded | Black | Solder | Coax Signal | Copper Alloy | 0.76 Ám | 30 Áin | Through Hole | UL94 V-0 | Combo D-Sub | 125 VDC | 12 | 5 | ||||||||||
EDAC Inc. | 17W5 4 (DC C) | 2 | Gold | Board Side (M3) | Polyester Thermoplastic | Receptacle Female Sockets | -55 °C | 125 °C | Shielded | Black | Solder | Signal and Power | Copper Alloy | Through Hole | UL94 V-0 | Combo D-Sub | 5 | 12 | 125 VDC | Flash | 10A 5A | ||||||||||
EDAC Inc. | 17W2 3 (DB B) | 2 | Gold | 4-40 Board Side | Polyester Thermoplastic | Receptacle Female Sockets | -55 °C | 125 °C | Shielded | Black | Solder | Coax Signal | Copper Alloy | Through Hole | UL94 V-0 | Combo D-Sub | 125 VDC | 15 | Flash | Nickel Plated Steel | 2 | 17 | |||||||||
EDAC Inc. | 17W5 4 (DC C) | 2 | Gold | Board Side (M3) | Polyester Thermoplastic | Receptacle Female Sockets | -55 °C | 125 °C | Shielded | Black | Solder | Coax Signal | Copper Alloy | Through Hole | UL94 V-0 | Combo D-Sub | 125 VDC | 12 | Flash | 5 | |||||||||||
EDAC Inc. | 17W2 3 (DB B) | 2 | Gold | Polyester Thermoplastic | Receptacle Female Sockets | -55 °C | 125 °C | Shielded | Black | Solder | Signal and Power | Copper Alloy | 0.76 Ám | 30 Áin | Through Hole | UL94 V-0 | Combo D-Sub | 2 | 125 VDC | 5 A 30 A | 15 | M3 | M3 | ||||||||
EDAC Inc. | 17W5 4 (DC C) | 2 | Gold | 4-40 Board Side | Polyester Thermoplastic | Receptacle Female Sockets | -55 °C | 125 °C | Shielded | Black | Signal and Power | Copper Alloy | Free Hanging (In-Line) | UL94 V-0 | Combo D-Sub | 5 | 12 | 125 VDC | 5 A 40 A | Flash | Nickel Plated Steel | ||||||||||
EDAC Inc. | 17W2 3 (DB B) | 2 | Gold | 4-40 Board Side | Polyester Thermoplastic | Receptacle Female Sockets | -55 °C | 125 °C | Shielded | Black | Signal and Power | Copper Alloy | Free Hanging (In-Line) | UL94 V-0 | Combo D-Sub | 2 | 125 VDC | 5 A 30 A | 15 | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
628-17W Series
17 (12 + 5 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
