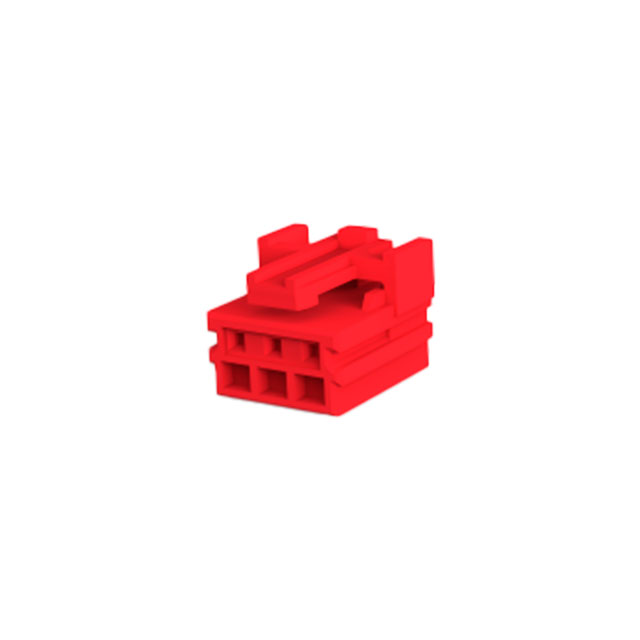

1-1971030-3
ActiveTE Connectivity Raychem Cable Protection
HEADERS & WIRE HOUSINGS 3POS PLUG HSG FOR GIC 2.0 EV SERIES
Deep-Dive with AI
Search across all available documentation for this part.
1-1971030-3
ActiveTE Connectivity Raychem Cable Protection
HEADERS & WIRE HOUSINGS 3POS PLUG HSG FOR GIC 2.0 EV SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1971030-3 |
|---|---|
| Color | Red |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
GRACE INERTIA 2.0 Series
Headers & Wire Housings GRACE INERTIA CONN 2.0 REC CONTACT
