4-2232829-9

Active

TE Connectivity Raychem Cable Protection

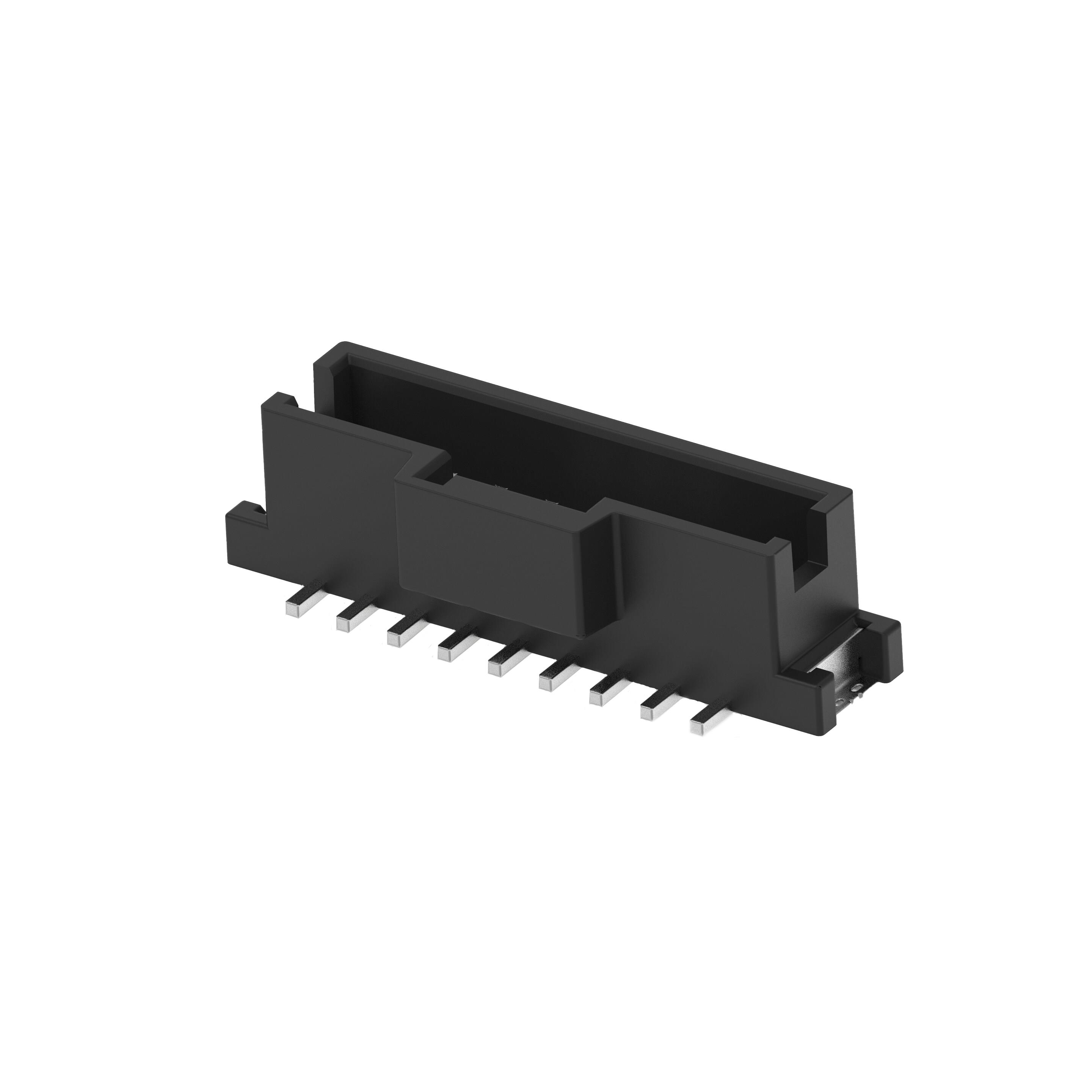

SGI2.0 HEADER ASSEMBLY SMT 9P,KEY B,BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSGI2.0, SGI 1.50, SGI 1.25 connectors SGI 2.0 Connector System +3

4-2232829-9

Active

TE Connectivity Raychem Cable Protection

SGI2.0 HEADER ASSEMBLY SMT 9P,KEY B,BLK

Deep-Dive with AI

DocumentsSGI2.0, SGI 1.50, SGI 1.25 connectors SGI 2.0 Connector System +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4-2232829-9

null

GRACE INERTIA 2.0 Series

Headers & Wire Housings GRACE INERTIA CONN 2.0 REC CONTACT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Contact Type	Mounting Type	Color	Insulation Material	Contact Termination	Connector Type	Shrouding	Applications	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Insulation Color	Current Rating (Amps)	Style	Contact Length - Post	Contact Length - Post	Voltage Rating	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Termination	Contact Material	Note
TE Connectivity Raychem Cable Protection 1-2232979-7	-40 °C	105 ░C	Latch Holder	7	1	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Natural	Thermoplastic	Crimp	Plug
TE Connectivity Raychem Cable Protection 4-2232829-9
TE Connectivity Raychem Cable Protection 1971032-5	-30 ░C	105 ░C	Latch Holder		1			Male Pin	Through Hole		Polyamide (PA66) Nylon 6/6 Glass Filled		Header	Shrouded - 4 Wall	General Purpose	Square	All	UL94 V-0	Natural	Varies by Wire Gauge	Board to Cable/Wire	0.102 in	2.6 mm	50 V	Tin	0.079 in	2 mm	6.5 mm	0.256 in	Solder	Brass
TE Connectivity Raychem Cable Protection 1-2232979-5	-40 °C	105 ░C	Latch Holder		1	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Natural	Thermoplastic	Crimp	Plug
TE Connectivity Raychem Cable Protection 2-2232979-0	-40 °C	105 ░C	Latch Holder	10	1	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Natural	Thermoplastic	Crimp	Plug
TE Connectivity Raychem Cable Protection 1-2232979-4	-40 °C	105 ░C	Latch Holder	4	1	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Natural	Thermoplastic	Crimp	Plug
TE Connectivity Raychem Cable Protection 1971032-6	-30 ░C	105 ░C	Latch Holder	6	1			Male Pin	Through Hole		Polyamide (PA66) Nylon 6/6 Glass Filled		Header	Shrouded - 4 Wall	General Purpose	Square	All	UL94 V-0	Natural	Varies by Wire Gauge	Board to Cable/Wire	0.102 in	2.6 mm	50 V	Tin	0.079 in	2 mm	6.5 mm	0.256 in	Solder	Brass
TE Connectivity Raychem Cable Protection 1-1971032-6	-30 ░C	105 ░C	Latch Holder	6	1			Male Pin	Through Hole		Polyamide (PA66) Nylon 6/6 Glass Filled		Header	Shrouded - 4 Wall	General Purpose	Square	All	UL94 V-0	Red	Varies by Wire Gauge	Board to Cable/Wire	0.102 in	2.6 mm	50 V	Tin	0.079 in	2 mm	6.5 mm	0.256 in	Solder	Brass
TE Connectivity Raychem Cable Protection 1-1971030-3	-30 ░C	105 ░C	Latch Holder		1	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Red	Polyamide (PA66) Nylon 6/6 Glass Filled	Crimp	Plug																			Contacts Not Included
TE Connectivity Raychem Cable Protection 4-2232829-4
