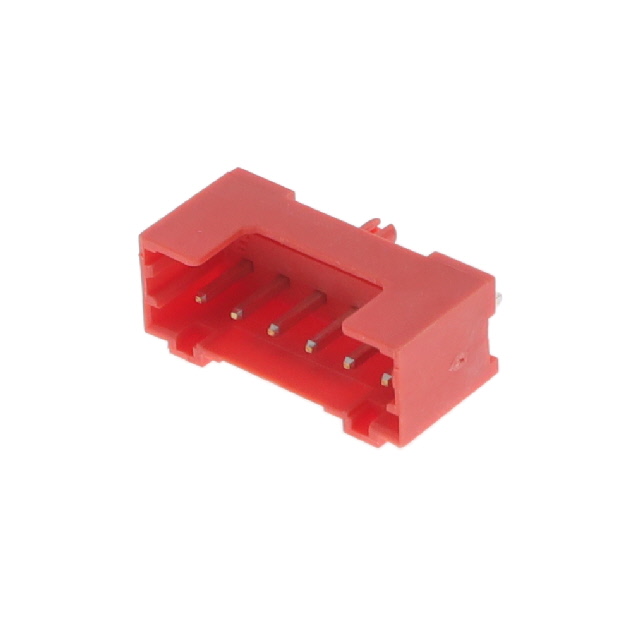

1-1971032-6

Active

TE Connectivity Raychem Cable Protection

6POS HEADER ASSEMBLY FOR GIC 2.0

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-1971032-6

Active

TE Connectivity Raychem Cable Protection

6POS HEADER ASSEMBLY FOR GIC 2.0

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1971032-6

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Insulation Color	Red
Insulation Height	6.5 mm
Insulation Height	0.256 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

GRACE INERTIA 2.0 Series

Headers & Wire Housings GRACE INERTIA CONN 2.0 REC CONTACT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Contact Type	Mounting Type	Color	Insulation Material	Contact Termination	Connector Type	Shrouding	Applications	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Insulation Color	Current Rating (Amps)	Style	Contact Length - Post	Contact Length - Post	Voltage Rating	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Termination	Contact Material	Note
TE Connectivity Raychem Cable Protection 1-2232979-7	-40 °C	105 ░C	Latch Holder	7	1	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Natural	Thermoplastic	Crimp	Plug
TE Connectivity Raychem Cable Protection 4-2232829-9
TE Connectivity Raychem Cable Protection 1971032-5	-30 ░C	105 ░C	Latch Holder		1			Male Pin	Through Hole		Polyamide (PA66) Nylon 6/6 Glass Filled		Header	Shrouded - 4 Wall	General Purpose	Square	All	UL94 V-0	Natural	Varies by Wire Gauge	Board to Cable/Wire	0.102 in	2.6 mm	50 V	Tin	0.079 in	2 mm	6.5 mm	0.256 in	Solder	Brass
TE Connectivity Raychem Cable Protection 1-2232979-5	-40 °C	105 ░C	Latch Holder		1	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Natural	Thermoplastic	Crimp	Plug
TE Connectivity Raychem Cable Protection 2-2232979-0	-40 °C	105 ░C	Latch Holder	10	1	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Natural	Thermoplastic	Crimp	Plug
TE Connectivity Raychem Cable Protection 1-2232979-4	-40 °C	105 ░C	Latch Holder	4	1	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Natural	Thermoplastic	Crimp	Plug
TE Connectivity Raychem Cable Protection 1971032-6	-30 ░C	105 ░C	Latch Holder	6	1			Male Pin	Through Hole		Polyamide (PA66) Nylon 6/6 Glass Filled		Header	Shrouded - 4 Wall	General Purpose	Square	All	UL94 V-0	Natural	Varies by Wire Gauge	Board to Cable/Wire	0.102 in	2.6 mm	50 V	Tin	0.079 in	2 mm	6.5 mm	0.256 in	Solder	Brass
TE Connectivity Raychem Cable Protection 1-1971032-6	-30 ░C	105 ░C	Latch Holder	6	1			Male Pin	Through Hole		Polyamide (PA66) Nylon 6/6 Glass Filled		Header	Shrouded - 4 Wall	General Purpose	Square	All	UL94 V-0	Red	Varies by Wire Gauge	Board to Cable/Wire	0.102 in	2.6 mm	50 V	Tin	0.079 in	2 mm	6.5 mm	0.256 in	Solder	Brass
TE Connectivity Raychem Cable Protection 1-1971030-3	-30 ░C	105 ░C	Latch Holder		1	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Red	Polyamide (PA66) Nylon 6/6 Glass Filled	Crimp	Plug																			Contacts Not Included
TE Connectivity Raychem Cable Protection 4-2232829-4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 0.37
		10	$ 0.34
		200	$ 0.29
		600	$ 0.25

Description

General part information

GRACE INERTIA 2.0 Series

Headers & Wire Housings GRACE INERTIA CONN 2.0 REC CONTACT
