EDSP10SGLNNTR04
ActiveTE Connectivity Raychem Cable Protection

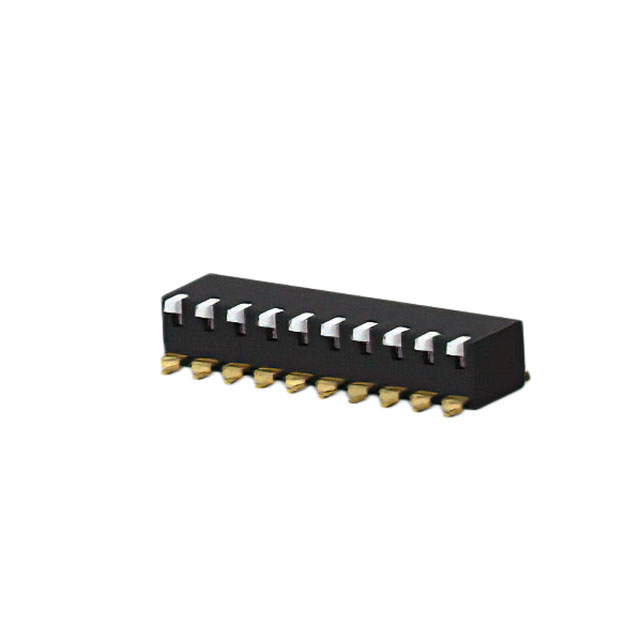

E STACK PIANO 10P G LONG T&R PD ON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EDSP10SGLNNTR04 |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Piano |
| Body Material | Nylon, Polyamide (PA) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 2000 Steps |
| Height Above Board [z] | 5 mm |
| Height Above Board [z] | 0.197 in |
| Length | 25.3 mm |
| Length | 0.996 in |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.02 | |
| 10 | $ 3.86 | |||
| 25 | $ 3.52 | |||
| 100 | $ 3.05 | |||
| 250 | $ 2.77 | |||
| Digi-Reel® | 1 | $ 4.02 | ||
| 10 | $ 3.86 | |||
| 25 | $ 3.52 | |||
| 100 | $ 3.05 | |||
| 250 | $ 2.77 | |||
| Tape & Reel (TR) | 700 | $ 2.03 | ||
Description
General part information
ALCOSWITCH DIP EDSP Series
DIP Switch, Gold Flash Contact Plating, Black, High Temperature Nylon, 10 Switch, -20 – 85 °C, Piano (Side Actuated), ALCOSWITCH DIP EDSP
