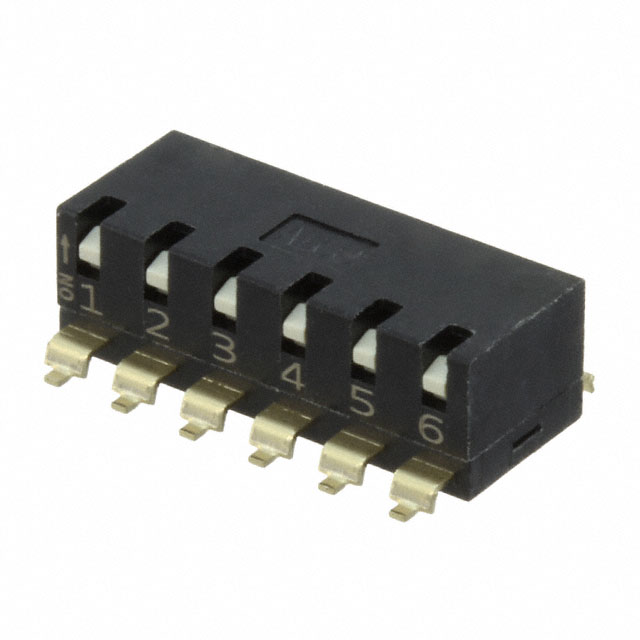

EDSP06SGRNNTU04

Active

TE Connectivity Raychem Cable Protection

SWITCH DIP OFF ON SPST 6 SHORT PIANO 0.025A 24VDC GULL WING 2000CYCLES 2.54MM SMD TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSWITCHES_CORE_PROGRAM_CATALOG ENG_CD_2319764_A.pdf

EDSP06SGRNNTU04

Active

TE Connectivity Raychem Cable Protection

SWITCH DIP OFF ON SPST 6 SHORT PIANO 0.025A 24VDC GULL WING 2000CYCLES 2.54MM SMD TUBE

Deep-Dive with AI

DocumentsSWITCHES_CORE_PROGRAM_CATALOG ENG_CD_2319764_A.pdf

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDSP06SGRNNTU04

Actuator Level	Flush, Recessed
Actuator Type	Piano
Body Material	Nylon, Polyamide (PA)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board [z]	5 mm
Height Above Board [z]	0.197 in
Length [x]	0.596 "
Length [x]	15.14 mm
Mechanical Life	2000 Cycles
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

ALCOSWITCH DIP EDSP Series

Part	Mechanical Life	Length	Length	Actuator Level	Circuit	Current Rating (Amps)	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Electrical Life	Termination Style	Contact Finish	Voltage Rating	Body Material	Contact Material	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection EDSP10SGLNNTR04	2000 Cycles	25.3 mm	0.996 in	Raised	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	10	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy
TE Connectivity Raychem Cable Protection EDSP06SGRNNTU04	2000 Cycles			Flush Recessed	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	6	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy	0.596 "	15.14 mm
TE Connectivity Raychem Cable Protection EDSP10SGRNNTU04	2000 Cycles	25.3 mm	0.996 in	Flush Recessed	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	10	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy
TE Connectivity Raychem Cable Protection EDSP10SGRFNTU04	2000 Cycles	25.3 mm	0.996 in	Flush Recessed	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	10	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy
TE Connectivity Raychem Cable Protection EDSP10SGRFSTU04	2000 Cycles	25.3 mm	0.996 in	Flush Recessed	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	10	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy
TE Connectivity Raychem Cable Protection EDSP10SGLFNTU04	2000 Cycles	25.3 mm	0.996 in	Raised	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	10	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy
TE Connectivity Raychem Cable Protection EDSP10SGRFSTR04	2000 Cycles	25.3 mm	0.996 in	Flush Recessed	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	10	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.28
		10	$ 0.27
Digikey	Tube	1	$ 1.90
		10	$ 1.79
		31	$ 1.63
		124	$ 1.41
		279	$ 1.37

Description

General part information

ALCOSWITCH DIP EDSP Series

DIP Switch, Gold Flash Contact Plating, Black, High Temperature Nylon, 6 Switch, -20 – 85 °C, Piano (Side Actuated), ALCOSWITCH DIP EDSP

Documents

Technical documentation and resources

SWITCHES_CORE_PROGRAM_CATALOG

Datasheets & Catalog Pages

ENG_CD_2319764_A.pdf

Product Drawings
