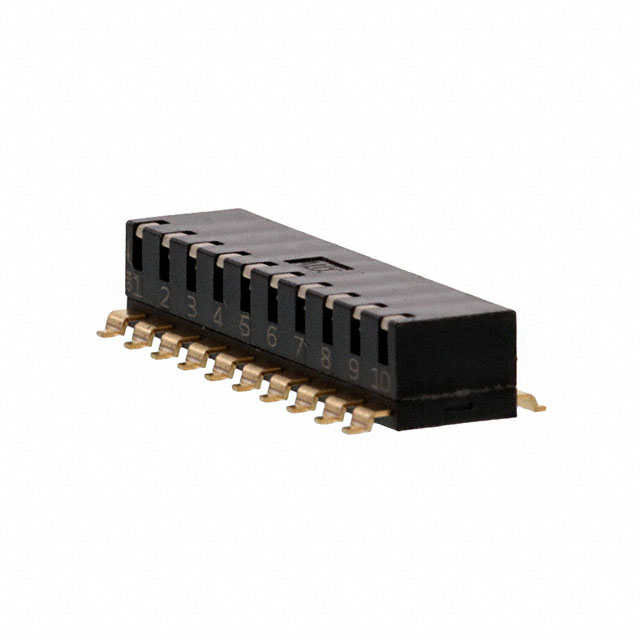

EDSP10SGRNNTU04

Active

TE Connectivity Raychem Cable Protection

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EDSP10SGRNNTU04

Active

TE Connectivity Raychem Cable Protection

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDSP10SGRNNTU04

Actuator Level	Flush, Recessed
Actuator Type	Piano
Body Material	Nylon, Polyamide (PA)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board [z]	5 mm
Height Above Board [z]	0.197 in
Length	25.3 mm
Length	0.996 in
Mechanical Life	2000 Cycles
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

ALCOSWITCH DIP EDSP Series

Part	Mechanical Life	Length	Length	Actuator Level	Circuit	Current Rating (Amps)	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Electrical Life	Termination Style	Contact Finish	Voltage Rating	Body Material	Contact Material	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection EDSP10SGLNNTR04	2000 Cycles	25.3 mm	0.996 in	Raised	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	10	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy
TE Connectivity Raychem Cable Protection EDSP06SGRNNTU04	2000 Cycles			Flush Recessed	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	6	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy	0.596 "	15.14 mm
TE Connectivity Raychem Cable Protection EDSP10SGRNNTU04	2000 Cycles	25.3 mm	0.996 in	Flush Recessed	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	10	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy
TE Connectivity Raychem Cable Protection EDSP10SGRFNTU04	2000 Cycles	25.3 mm	0.996 in	Flush Recessed	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	10	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy
TE Connectivity Raychem Cable Protection EDSP10SGRFSTU04	2000 Cycles	25.3 mm	0.996 in	Flush Recessed	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	10	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy
TE Connectivity Raychem Cable Protection EDSP10SGLFNTU04	2000 Cycles	25.3 mm	0.996 in	Raised	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	10	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy
TE Connectivity Raychem Cable Protection EDSP10SGRFSTR04	2000 Cycles	25.3 mm	0.996 in	Flush Recessed	SPST	25 mA	Surface Mount Right Angle	5 mm	0.197 in	10	0.1 in	Full	2.54 mm	85 °C	-20 C	Piano	2000 Steps	Gull Wing	Gold	24 VDC	Nylon Polyamide (PA)	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.24
		18	$ 2.11
		36	$ 1.92
		108	$ 1.66
		252	$ 1.61

Description

General part information

ALCOSWITCH DIP EDSP Series

Dip Switch SPST 10 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC
