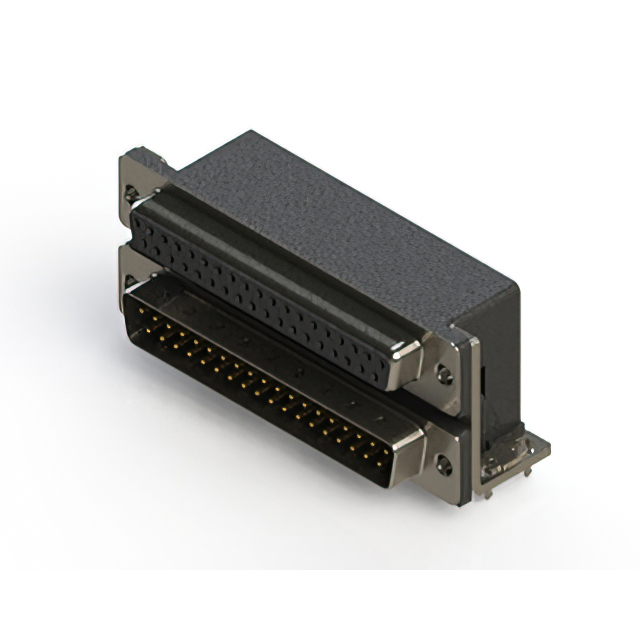

Specification	664-037-264-034

Backset Spacing	0.318 in
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Female Socket, Receptacle, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Brass, Phosphor Bronze
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37 pos
Number of Positions	37
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

664-037 Series

...

Part	Number of Rows	Connector Style	Shell Material	Finish	Mounting Type	Flange Feature	Contact Finish Thickness	Shell Size, Connector Layout	Termination	Current Rating (Per Contact)	Features	Contact Type	Connector Type	Contact Finish	Number of Positions	Number of Positions	Material Flammability Rating	Backset Spacing	Color	Dielectric Material	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 664-037-664-059	2	D-Sub - Stacked	Steel	Nickel Plated	Right Angle Through Hole	Female Screwlock (4-40) Mating Side	30 µin	4 (DC C)	Solder	3 A	Grounding Indents Mounting Brackets Shielded	Signal	Female Socket Male Pins Plug Receptacle	Gold	37 pos	37	UL94 V-0	0.318 in	Black	Polyester Thermoplastic	Brass Phosphor Bronze	-55 °C	85 °C
EDAC Inc. 664-037-264-044	2	D-Sub - Stacked	Steel	Nickel Plated	Right Angle Through Hole	Housing Shell (Unthreaded)	0	4 (DC C)	Solder	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Signal	Female Socket Male Pins Plug Receptacle	Gold	37 pos	37	UL94 V-0	0.318 in	Black	Polyester Thermoplastic	Brass Phosphor Bronze	-55 °C	85 °C	Flash	Flash
EDAC Inc. 664-037-664-056	2	D-Sub - Stacked	Steel	Nickel Plated	Right Angle Through Hole	Female Screwlock (4-40) Mating Side	30 µin	4 (DC C)	Solder	3 A	Grounding Indents Mounting Brackets Shielded	Signal	Female Socket Male Pins Plug Receptacle	Gold	37 pos	37	UL94 V-0	0.318 in	Black	Polyester Thermoplastic	Brass Phosphor Bronze	-55 °C	85 °C
EDAC Inc. 664-037-264-034	2	D-Sub - Stacked	Steel	Nickel Plated	Right Angle Through Hole	Housing Shell (Unthreaded)	0	4 (DC C)	Solder	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Signal	Female Socket Male Pins Plug Receptacle	Gold	37 pos	37	UL94 V-0	0.318 in	Black	Polyester Thermoplastic	Brass Phosphor Bronze	-55 °C	85 °C	Flash	Flash
EDAC Inc. 664-037-664-032	2	D-Sub - Stacked	Steel	Nickel Plated	Right Angle Through Hole	Housing Shell (4-40)	30 µin	4 (DC C)	Solder	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Signal	Female Socket Male Pins Plug Receptacle	Gold	37 pos	37	UL94 V-0	0.318 in	Black	Polyester Thermoplastic	Brass Phosphor Bronze	-55 °C	85 °C
EDAC Inc. 664-037-364-054	2	D-Sub - Stacked	Steel	Nickel Plated	Right Angle Through Hole	Housing Shell (Unthreaded)	15 µin	4 (DC C)	Solder	3 A	Grounding Indents Mounting Brackets Shielded	Signal	Female Socket Male Pins Plug Receptacle	Gold	37 pos	37	UL94 V-0	0.318 in	Black	Polyester Thermoplastic	Brass Phosphor Bronze	-55 °C	85 °C
EDAC Inc. 664-037-264-008	2	D-Sub - Stacked	Steel	Nickel Plated	Right Angle Through Hole	Housing Shell (4-40)	0	4 (DC C)	Solder	3 A	Grounding Indents Shielded	Signal	Female Socket Male Pins Plug Receptacle	Gold	37 pos	37	UL94 V-0	0.318 in	Black	Polyester Thermoplastic	Brass Phosphor Bronze	-55 °C	85 °C	Flash	Flash
EDAC Inc. 664-037-264-039	2	D-Sub - Stacked	Steel	Nickel Plated	Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0	4 (DC C)	Solder	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Signal	Female Socket Male Pins Plug Receptacle	Gold	37 pos	37	UL94 V-0	0.318 in	Black	Polyester Thermoplastic	Brass Phosphor Bronze	-55 °C	85 °C	Flash	Flash
EDAC Inc. 664-037-364-042	2	D-Sub - Stacked	Steel	Nickel Plated	Right Angle Through Hole	Housing Shell (4-40)	15 µin	4 (DC C)	Solder	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Signal	Female Socket Male Pins Plug Receptacle	Gold	37 pos	37	UL94 V-0	0.318 in	Black	Polyester Thermoplastic	Brass Phosphor Bronze	-55 °C	85 °C
EDAC Inc. 664-037-264-038	2	D-Sub - Stacked	Steel	Nickel Plated	Right Angle Through Hole	Housing Shell (4-40)	0	4 (DC C)	Solder	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Signal	Female Socket Male Pins Plug Receptacle	Gold	37 pos	37	UL94 V-0	0.318 in	Black	Polyester Thermoplastic	Brass Phosphor Bronze	-55 °C	85 °C	Flash	Flash
