664-037-264-008

Active

EDAC Inc.

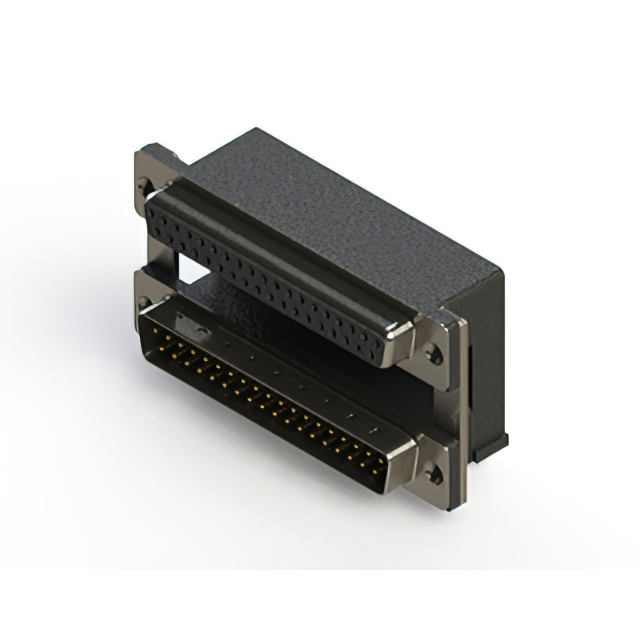

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

664-037-264-008

Active

EDAC Inc.

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	664-037-264-008

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins, Receptacle, Female Socket
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass, Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

664-037 Series

...

Part	Shell Material, Finish	Connector Style	Features	Dielectric Material	Flange Feature	Color	Contact Finish	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Backset Spacing	Backset Spacing	Termination	Shell Size, Connector Layout	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Current Rating (Amps)	Number of Rows	Mounting Type	Number of Positions	Connector Type	Contact Finish Thickness
EDAC Inc. 664-037-664-059	Nickel Plated Steel	D-Sub - Stacked	Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	Female Screwlock (4-40) Mating Side	Black	Gold	Brass Phosphor Bronze	85 °C	-55 °C	8.08 mm	0.318 "	Solder	4	UL94 V-0	0.76 Ám	30 Áin	Signal	3 A	2	Through Hole Right Angle	37	Plug Male Pins Receptacle Female Socket
EDAC Inc. 664-037-264-044	Nickel Plated Steel	D-Sub - Stacked	Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	Housing/Shell (Unthreaded)	Black	Gold	Brass Phosphor Bronze	85 °C	-55 °C	8.08 mm	0.318 "	Solder	4	UL94 V-0			Signal	3 A	2	Through Hole Right Angle	37	Plug Male Pins Receptacle Female Socket	Flash
EDAC Inc. 664-037-664-056	Nickel Plated Steel	D-Sub - Stacked	Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	Female Screwlock (4-40) Mating Side	Black	Gold	Brass Phosphor Bronze	85 °C	-55 °C	8.08 mm	0.318 "	Solder	4	UL94 V-0	0.76 Ám	30 Áin	Signal	3 A	2	Through Hole Right Angle	37	Plug Male Pins Receptacle Female Socket
EDAC Inc. 664-037-264-034	Nickel Plated Steel	D-Sub - Stacked	Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	Housing/Shell (Unthreaded)	Black	Gold	Brass Phosphor Bronze	85 °C	-55 °C	8.08 mm	0.318 "	Solder	4	UL94 V-0			Signal	3 A	2	Through Hole Right Angle	37	Plug Male Pins Receptacle Female Socket	Flash
EDAC Inc. 664-037-664-032	Nickel Plated Steel	D-Sub - Stacked	Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	Housing/Shell (4-40)	Black	Gold	Brass Phosphor Bronze	85 °C	-55 °C	8.08 mm	0.318 "	Solder	4	UL94 V-0	0.76 Ám	30 Áin	Signal	3 A	2	Through Hole Right Angle	37	Plug Male Pins Receptacle Female Socket
EDAC Inc. 664-037-364-054	Nickel Plated Steel	D-Sub - Stacked	Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	Housing/Shell (Unthreaded)	Black	Gold	Brass Phosphor Bronze	85 °C	-55 °C	8.08 mm	0.318 "	Solder	4	UL94 V-0	0.38 µm	15 µin	Signal	3 A	2	Through Hole Right Angle	37	Plug Male Pins Receptacle Female Socket
EDAC Inc. 664-037-264-008	Nickel Plated Steel	D-Sub - Stacked	Grounding Indents Shielded	Polyester Thermoplastic	Housing/Shell (4-40)	Black	Gold	Brass Phosphor Bronze	85 °C	-55 °C	8.08 mm	0.318 "	Solder	4	UL94 V-0			Signal	3 A	2	Through Hole Right Angle	37	Plug Male Pins Receptacle Female Socket	Flash
EDAC Inc. 664-037-264-039	Nickel Plated Steel	D-Sub - Stacked	Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	Female Screwlock (4-40) Mating Side	Black	Gold	Brass Phosphor Bronze	85 °C	-55 °C	8.08 mm	0.318 "	Solder	4	UL94 V-0			Signal	3 A	2	Through Hole Right Angle	37	Plug Male Pins Receptacle Female Socket	Flash
EDAC Inc. 664-037-364-042	Nickel Plated Steel	D-Sub - Stacked	Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	Housing/Shell (4-40)	Black	Gold	Brass Phosphor Bronze	85 °C	-55 °C	8.08 mm	0.318 "	Solder	4	UL94 V-0	0.38 µm	15 µin	Signal	3 A	2	Through Hole Right Angle	37	Plug Male Pins Receptacle Female Socket
EDAC Inc. 664-037-264-038	Nickel Plated Steel	D-Sub - Stacked	Board Lock Grounding Indents Mounting Brackets Shielded	Polyester Thermoplastic	Housing/Shell (4-40)	Black	Gold	Brass Phosphor Bronze	85 °C	-55 °C	8.08 mm	0.318 "	Solder	4	UL94 V-0			Signal	3 A	2	Through Hole Right Angle	37	Plug Male Pins Receptacle Female Socket	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 13.23
Newark	Each	1	$ 12.20
		100	$ 9.76
		250	$ 8.88
		500	$ 8.13
		1000	$ 6.88

Description

General part information

664-037 Series

37, 37 Position D-Sub - Stacked Receptacle, Female Socket ; Plug, Male Pins Connector
