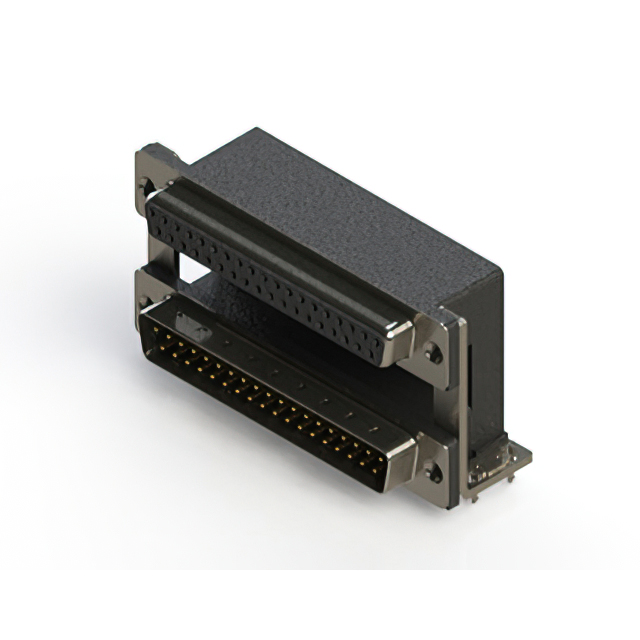

664-037-264-038
ActiveEDAC Inc.
664 SERIES RIGHT ANGLE DUAL D-SU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
664-037-264-038
ActiveEDAC Inc.
664 SERIES RIGHT ANGLE DUAL D-SU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 664-037-264-038 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins, Receptacle, Female Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass, Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Board Lock, Mounting Brackets, Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
664-037 Series
...
| Part | Shell Material, Finish | Connector Style | Features | Dielectric Material | Flange Feature | Color | Contact Finish | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Backset Spacing | Backset Spacing | Termination | Shell Size, Connector Layout | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Current Rating (Amps) | Number of Rows | Mounting Type | Number of Positions | Connector Type | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Nickel Plated Steel | D-Sub - Stacked | Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | Female Screwlock (4-40) Mating Side | Black | Gold | Brass Phosphor Bronze | 85 °C | -55 °C | 8.08 mm | 0.318 " | Solder | 4 | UL94 V-0 | 0.76 Ám | 30 Áin | Signal | 3 A | 2 | Through Hole Right Angle | 37 | Plug Male Pins Receptacle Female Socket | |
EDAC Inc. | Nickel Plated Steel | D-Sub - Stacked | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | Housing/Shell (Unthreaded) | Black | Gold | Brass Phosphor Bronze | 85 °C | -55 °C | 8.08 mm | 0.318 " | Solder | 4 | UL94 V-0 | Signal | 3 A | 2 | Through Hole Right Angle | 37 | Plug Male Pins Receptacle Female Socket | Flash | ||
EDAC Inc. | Nickel Plated Steel | D-Sub - Stacked | Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | Female Screwlock (4-40) Mating Side | Black | Gold | Brass Phosphor Bronze | 85 °C | -55 °C | 8.08 mm | 0.318 " | Solder | 4 | UL94 V-0 | 0.76 Ám | 30 Áin | Signal | 3 A | 2 | Through Hole Right Angle | 37 | Plug Male Pins Receptacle Female Socket | |
EDAC Inc. | Nickel Plated Steel | D-Sub - Stacked | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | Housing/Shell (Unthreaded) | Black | Gold | Brass Phosphor Bronze | 85 °C | -55 °C | 8.08 mm | 0.318 " | Solder | 4 | UL94 V-0 | Signal | 3 A | 2 | Through Hole Right Angle | 37 | Plug Male Pins Receptacle Female Socket | Flash | ||
EDAC Inc. | Nickel Plated Steel | D-Sub - Stacked | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | Housing/Shell (4-40) | Black | Gold | Brass Phosphor Bronze | 85 °C | -55 °C | 8.08 mm | 0.318 " | Solder | 4 | UL94 V-0 | 0.76 Ám | 30 Áin | Signal | 3 A | 2 | Through Hole Right Angle | 37 | Plug Male Pins Receptacle Female Socket | |
EDAC Inc. | Nickel Plated Steel | D-Sub - Stacked | Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | Housing/Shell (Unthreaded) | Black | Gold | Brass Phosphor Bronze | 85 °C | -55 °C | 8.08 mm | 0.318 " | Solder | 4 | UL94 V-0 | 0.38 µm | 15 µin | Signal | 3 A | 2 | Through Hole Right Angle | 37 | Plug Male Pins Receptacle Female Socket | |
EDAC Inc. | Nickel Plated Steel | D-Sub - Stacked | Grounding Indents Shielded | Polyester Thermoplastic | Housing/Shell (4-40) | Black | Gold | Brass Phosphor Bronze | 85 °C | -55 °C | 8.08 mm | 0.318 " | Solder | 4 | UL94 V-0 | Signal | 3 A | 2 | Through Hole Right Angle | 37 | Plug Male Pins Receptacle Female Socket | Flash | ||
EDAC Inc. | Nickel Plated Steel | D-Sub - Stacked | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | Female Screwlock (4-40) Mating Side | Black | Gold | Brass Phosphor Bronze | 85 °C | -55 °C | 8.08 mm | 0.318 " | Solder | 4 | UL94 V-0 | Signal | 3 A | 2 | Through Hole Right Angle | 37 | Plug Male Pins Receptacle Female Socket | Flash | ||
EDAC Inc. | Nickel Plated Steel | D-Sub - Stacked | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | Housing/Shell (4-40) | Black | Gold | Brass Phosphor Bronze | 85 °C | -55 °C | 8.08 mm | 0.318 " | Solder | 4 | UL94 V-0 | 0.38 µm | 15 µin | Signal | 3 A | 2 | Through Hole Right Angle | 37 | Plug Male Pins Receptacle Female Socket | |
EDAC Inc. | Nickel Plated Steel | D-Sub - Stacked | Board Lock Grounding Indents Mounting Brackets Shielded | Polyester Thermoplastic | Housing/Shell (4-40) | Black | Gold | Brass Phosphor Bronze | 85 °C | -55 °C | 8.08 mm | 0.318 " | Solder | 4 | UL94 V-0 | Signal | 3 A | 2 | Through Hole Right Angle | 37 | Plug Male Pins Receptacle Female Socket | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 25 | $ 13.23 | |
Description
General part information
664-037 Series
37, 37 Position D-Sub - Stacked Receptacle, Female Socket ; Plug, Male Pins Connector
