BYR29X-800PQ

Active

WeEn Semiconductors

DIODE GEN PURP 800V 8A TO220FP

Search across all available documentation for this part.

Active

WeEn Semiconductors

DIODE GEN PURP 800V 8A TO220FP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6000	$ 0.33

General part information

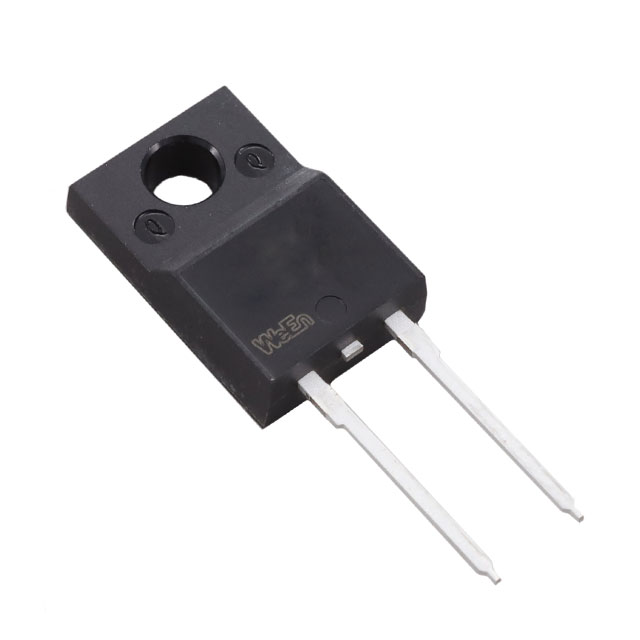

Diode 800 V 8A Through Hole TO-220FP

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	BYR29X-800PQ	BYR29 Series

Current - Average Rectified (Io)	8 A	8 A
Current - Reverse Leakage @ Vr	10 µA	10 µA
Mounting Type	Through Hole	Through Hole
Operating Temperature - Junction	-	150 °C
Operating Temperature - Junction [Max]	175 °C	175 °C
Package / Case	TO-220-2 Full Pack, Isolated Tab	TO-220-2, TO-220-2 Full Pack, Isolated Tab
Reverse Recovery Time (trr)	55 ns	55 - 75 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	TO-220FP	TO-220AC, TO-220FP
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	800 V	600 - 800 V
Voltage - Forward (Vf) (Max) @ If	1.7 V	1.5 - 8 V

DIODE GEN PURP 600V 8A TO220AC

Part	Operating Temperature - Junction	Reverse Recovery Time (trr)	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Reverse Leakage @ Vr	Mounting Type	Supplier Device Package	Operating Temperature - Junction [Max]
WeEn Semiconductors BYR29-600,127	150 °C	75 ns	TO-220-2	600 V	200 mA, 500 ns	8 A	1.5 V, 8 A	Standard	10 µA	Through Hole	TO-220AC
WeEn Semiconductors BYR29X-600,127	150 °C	75 ns	TO-220-2 Full Pack, Isolated Tab	600 V	200 mA, 500 ns	8 A	1.7 V	Standard	10 µA	Through Hole	TO-220FP
WeEn Semiconductors BYR29-800,127	150 °C	75 ns	TO-220-2	800 V	200 mA, 500 ns	8 A	1.5 V, 8 A	Standard	10 µA	Through Hole	TO-220AC
WeEn Semiconductors BYR29X-800,127	150 °C	75 ns	TO-220-2 Full Pack, Isolated Tab	800 V	200 mA, 500 ns	8 A	1.7 V	Standard	10 µA	Through Hole	TO-220FP
WeEn Semiconductors BYR29X-800PQ		55 ns	TO-220-2 Full Pack, Isolated Tab	800 V	200 mA, 500 ns	8 A	1.7 V	Standard	10 µA	Through Hole	TO-220FP	175 °C
