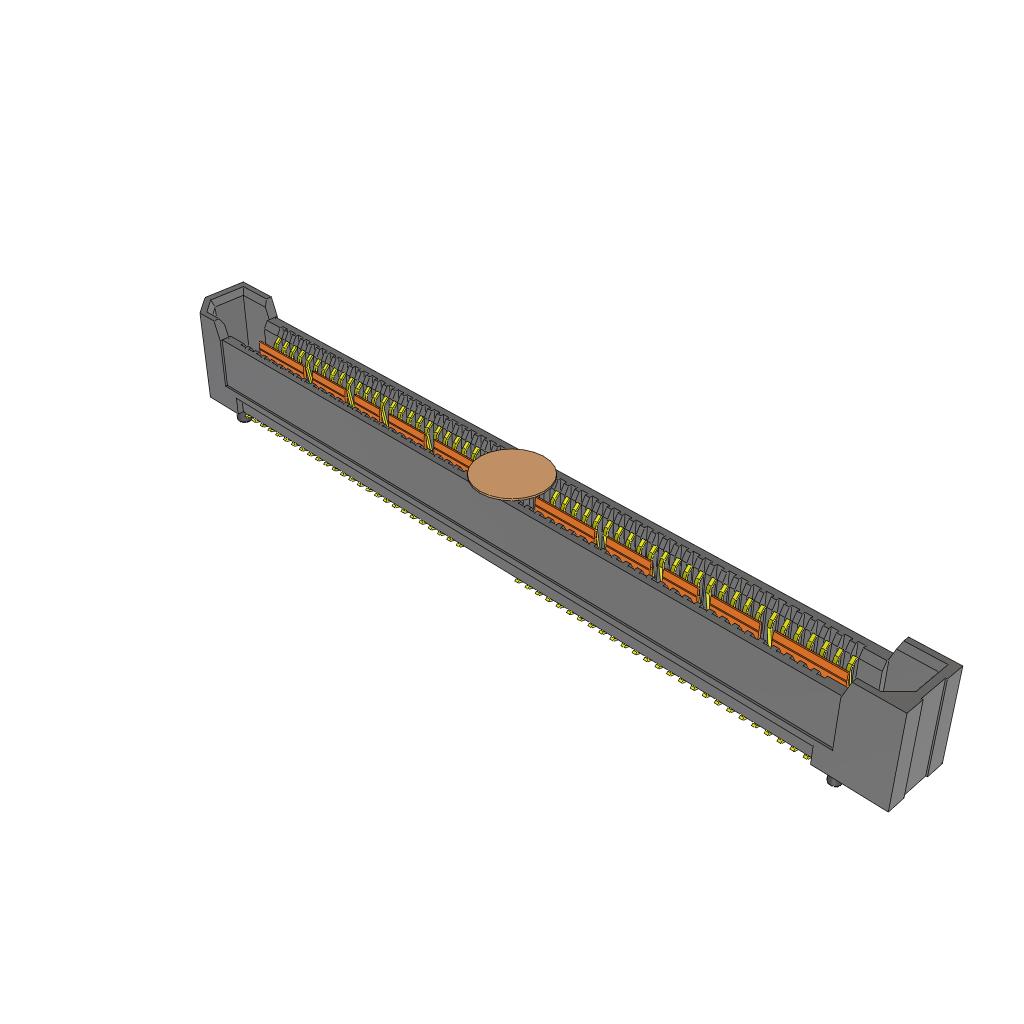

QRF8-052-05.0-L-D-A-GP-K-TR

Active

Samtec Inc.

.8MM Q RATE SOCKET WITH EDGE RAT

Deep-Dive with AI

DocumentsQRF8 Series Other Related Documents 03 QRF8 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QRF8-052-05.0-L-D-A-GP-K-TR

Connector Type	Female Sockets, Array
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Ground Bus (Plane), Pick and Place
Height Above Board [z]	5 mm
Height Above Board [z]	0.197 in
Mated Stacking Heights	12 mm, 7 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	104
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

QRF8-052 Series

Board to Board & Mezzanine Connectors 0.80 mm Q Rate Slim Body Ground Plane Socket

Part	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Mated Stacking Heights	Height Above Board	Height Above Board	Number of Rows	Mounting Type	Height Above Board [z]	Height Above Board [z]	Features
Samtec Inc. QRF8-052-07.0-L-D-A	104	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	Array Female Sockets	7 mm 10 mm 12 mm	0.276 in	7.01 mm	2	Surface Mount
Samtec Inc. QRF8-052-05.0-L-D-A-GP-TR	104	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	Array Female Sockets	7 mm 10 mm 12 mm			2	Surface Mount	5 mm	0.197 in
Samtec Inc. QRF8-052-07.0-S-D-A-GP	104	0.8 mm	0.031 in			Gold	Array Female Sockets	7 mm 10 mm 12 mm	0.276 in	7.01 mm	2	Surface Mount
Samtec Inc. QRF8-052-05.0-L-D-A-GP-K-TR	104	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	Array Female Sockets	7 mm 10 mm 12 mm			2	Surface Mount	5 mm	0.197 in	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRF8-052-07.0-L-D-A-GP-K	104	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	Array Female Sockets	7 mm 10 mm 12 mm	0.276 in	7.01 mm	2	Surface Mount			Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRF8-052-05.0-S-D-A-GP-K	104	0.8 mm	0.031 in			Gold	Array Female Sockets	7 mm 10 mm 12 mm			2	Surface Mount	5 mm	0.197 in	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRF8-052-01-S-RA-GP-K	104	0.8 mm	0.031 in			Gold	Array Female Sockets				2	Surface Mount Right Angle			Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRF8-052-07.0-S-D-A-K	104	0.8 mm	0.031 in			Gold	Array Female Sockets	7 mm 10 mm 12 mm	0.276 in	7.01 mm	2	Surface Mount			Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRF8-052-07.0-L-D-A-K	104	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	Array Female Sockets	7 mm 10 mm 12 mm	0.276 in	7.01 mm	2	Surface Mount			Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRF8-052-01-L-RA-GP	104	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	Array Female Sockets				2	Surface Mount Right Angle
