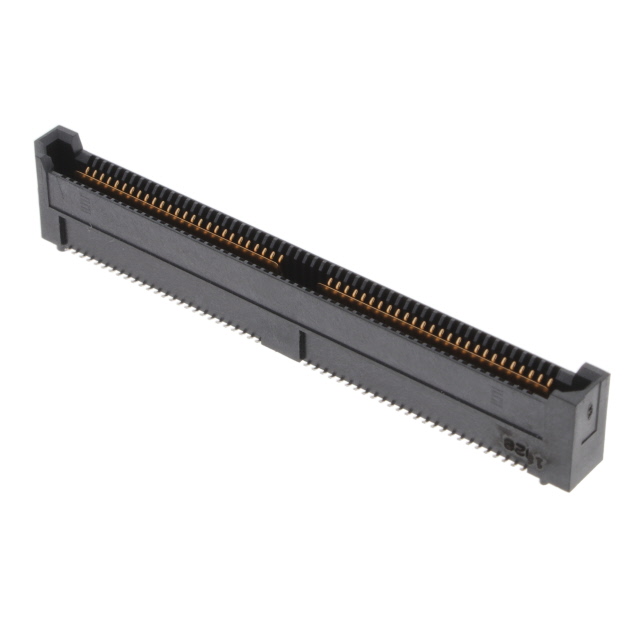

QRF8-052-07.0-L-D-A-K
ActiveSamtec Inc.
CONN ARRAY RCPT 104POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
QRF8-052-07.0-L-D-A-K
ActiveSamtec Inc.
CONN ARRAY RCPT 104POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QRF8-052-07.0-L-D-A-K |
|---|---|
| Connector Type | Female Sockets, Array |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Board Guide, Ground Bus (Plane), Pick and Place |
| Height Above Board | 0.276 in |
| Height Above Board | 7.01 mm |
| Mated Stacking Heights | 12 mm, 7 mm, 10 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 104 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 48 | $ 15.02 | |
| 96 | $ 14.66 | |||
| 144 | $ 13.71 | |||
Description
General part information
QRF8-052 Series
Board to Board & Mezzanine Connectors 0.80 mm Q Rate Slim Body Ground Plane Socket
