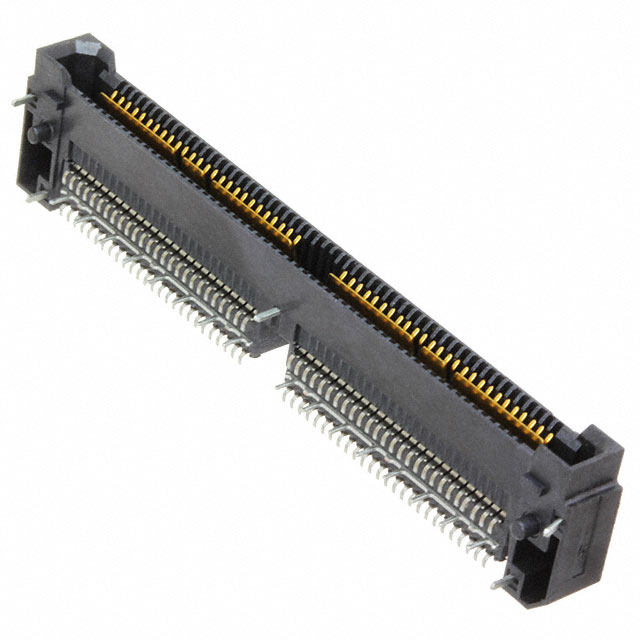

QRF8-052-01-L-RA-GP

Active

Samtec Inc.

CONN ARRAY RCP 104P R/A SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQRF8 Series Other Related Documents 03 QRF8 Datasheet +2

QRF8-052-01-L-RA-GP

Active

Samtec Inc.

CONN ARRAY RCP 104P R/A SMD GOLD

Deep-Dive with AI

DocumentsQRF8 Series Other Related Documents 03 QRF8 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QRF8-052-01-L-RA-GP

Connector Type	Female Sockets, Array
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Mounting Type	Surface Mount, Right Angle
Number of Positions	104
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

QRF8-052 Series

Board to Board & Mezzanine Connectors 0.80 mm Q Rate Slim Body Ground Plane Socket

Part	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Mated Stacking Heights	Height Above Board	Height Above Board	Number of Rows	Mounting Type	Height Above Board [z]	Height Above Board [z]	Features
Samtec Inc. QRF8-052-07.0-L-D-A	104	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	Array Female Sockets	7 mm 10 mm 12 mm	0.276 in	7.01 mm	2	Surface Mount
Samtec Inc. QRF8-052-05.0-L-D-A-GP-TR	104	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	Array Female Sockets	7 mm 10 mm 12 mm			2	Surface Mount	5 mm	0.197 in
Samtec Inc. QRF8-052-07.0-S-D-A-GP	104	0.8 mm	0.031 in			Gold	Array Female Sockets	7 mm 10 mm 12 mm	0.276 in	7.01 mm	2	Surface Mount
Samtec Inc. QRF8-052-05.0-L-D-A-GP-K-TR	104	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	Array Female Sockets	7 mm 10 mm 12 mm			2	Surface Mount	5 mm	0.197 in	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRF8-052-07.0-L-D-A-GP-K	104	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	Array Female Sockets	7 mm 10 mm 12 mm	0.276 in	7.01 mm	2	Surface Mount			Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRF8-052-05.0-S-D-A-GP-K	104	0.8 mm	0.031 in			Gold	Array Female Sockets	7 mm 10 mm 12 mm			2	Surface Mount	5 mm	0.197 in	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRF8-052-01-S-RA-GP-K	104	0.8 mm	0.031 in			Gold	Array Female Sockets				2	Surface Mount Right Angle			Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRF8-052-07.0-S-D-A-K	104	0.8 mm	0.031 in			Gold	Array Female Sockets	7 mm 10 mm 12 mm	0.276 in	7.01 mm	2	Surface Mount			Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRF8-052-07.0-L-D-A-K	104	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	Array Female Sockets	7 mm 10 mm 12 mm	0.276 in	7.01 mm	2	Surface Mount			Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QRF8-052-01-L-RA-GP	104	0.8 mm	0.031 in	10 Áin	0.25 Ám	Gold	Array Female Sockets				2	Surface Mount Right Angle
