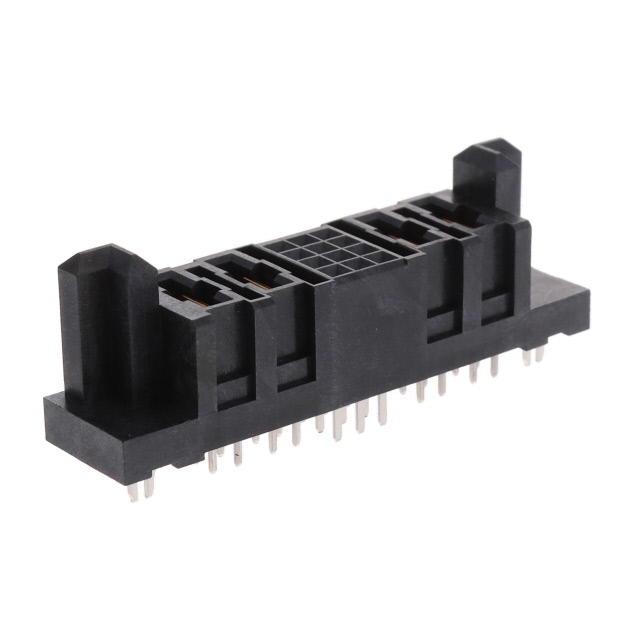

PESC-02-12-02-01-S-VT-LC
ActiveSamtec Inc.
.100" POWERSTRIP/40 A SIGNAL/PO
Deep-Dive with AI
Search across all available documentation for this part.
PESC-02-12-02-01-S-VT-LC
ActiveSamtec Inc.
.100" POWERSTRIP/40 A SIGNAL/PO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PESC-02-12-02-01-S-VT-LC |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Post | 0.097 in |
| Contact Length - Post | 2.47 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.497 in |
| Insulation Height | 12.62 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 4 |
| Number of Positions [x] | 12 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.70 | |
| 10 | $ 15.47 | |||
| 25 | $ 14.23 | |||
| 50 | $ 12.37 | |||
| 100 | $ 11.81 | |||
Description
General part information
PESC-02 Series
16 (12 + 4 Power) Position Receptacle Connector Through Hole Gold
