PESC-02-12-02-01-L-RA-SD

Active

Samtec Inc.

.100" POWERSTRIP/40 A SIGNAL/PO

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PESC-02-12-02-01-L-RA-SD

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.097 in
Contact Length - Post	2.47 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Threaded Insert
Insulation Color	Black
Insulation Height	0.472 in
Insulation Height	12 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	4
Number of Positions [x]	12
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Termination	Solder

PESC-02 Series

Part	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Connector Type	Contact Finish - Post	Contact Type	Contact Length - Post	Contact Length - Post	Contact Material	Insulation Height	Insulation Height	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Mounting Type	Contact Shape	Termination	Fastening Type	Number of Positions Loaded	Features	Number of Positions [x]	Number of Positions [custom]
Samtec Inc. PESC-02-40-02-01-S-VT-LC	Gold	30 Áin	0.76 Ám	Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.497 in	12.62 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	44	Through Hole	Square	Solder	Push-Pull	All
Samtec Inc. PESC-02-40-02-01-T-RA-SD				Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.472 in	12 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	44	Through Hole Right Angle	Square	Solder	Push-Pull	All	Threaded Insert
Samtec Inc. PESC-02-12-02-01-L-VT	Gold	10 çin	0.25 çm	Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.497 in	12.62 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C		Through Hole	Square	Solder	Push-Pull	All		12	4
Samtec Inc. PESC-02-40-02-01-L-VT	Gold	10 çin	0.25 çm	Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.497 in	12.62 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	44	Through Hole	Square	Solder	Push-Pull	All
Samtec Inc. PESC-02-12-02-01-L-RA-SD	Gold	10 çin	0.25 çm	Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.472 in	12 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C		Through Hole Right Angle	Square	Solder	Push-Pull	All	Threaded Insert	12	4
Samtec Inc. PESC-02-12-02-01-S-VT-LC	Gold	30 Áin	0.76 Ám	Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.497 in	12.62 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C		Through Hole	Square	Solder	Push-Pull	All		12	4
Samtec Inc. PESC-02-40-02-01-S-VT	Gold	30 Áin	0.76 Ám	Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.497 in	12.62 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	44	Through Hole	Square	Solder	Push-Pull	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	24	$ 17.19

Description

General part information

PESC-02 Series

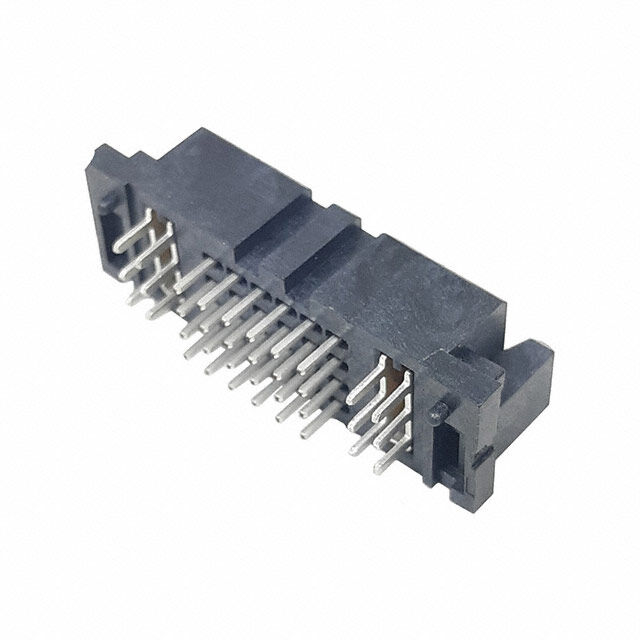

16 (12 + 4 Power) Position Receptacle Connector Through Hole, Right Angle Gold

Documents

Technical documentation and resources

No documents available
