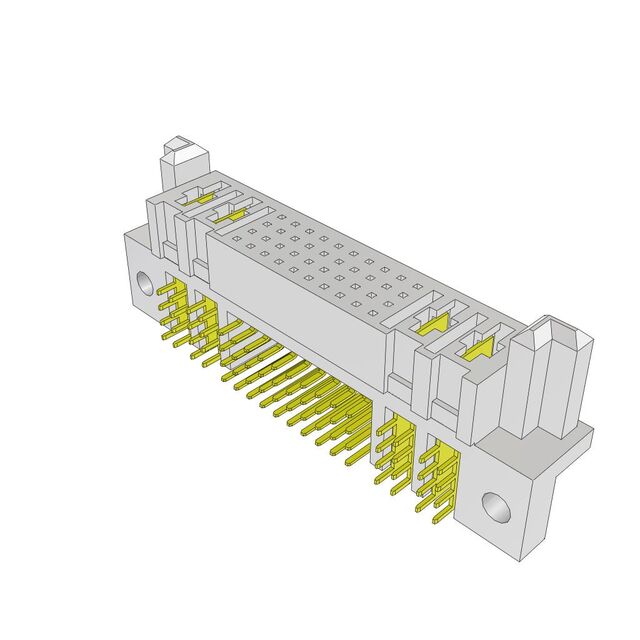

PESC-02-40-02-01-T-RA-SD

Active

Samtec Inc.

CONN RCPT 44POSTIN PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPESC Datasheet .100" PowerStrip™/40 A Signal/Power Combo Socket Strip +2

PESC-02-40-02-01-T-RA-SD

Active

Samtec Inc.

CONN RCPT 44POSTIN PCB R/A

Deep-Dive with AI

DocumentsPESC Datasheet .100" PowerStrip™/40 A Signal/Power Combo Socket Strip +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PESC-02-40-02-01-T-RA-SD

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.097 in
Contact Length - Post	2.47 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Threaded Insert
Insulation Color	Black
Insulation Height	0.472 in
Insulation Height	12 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Positions	44
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Termination	Solder

PESC-02 Series

Part	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Connector Type	Contact Finish - Post	Contact Type	Contact Length - Post	Contact Length - Post	Contact Material	Insulation Height	Insulation Height	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Mounting Type	Contact Shape	Termination	Fastening Type	Number of Positions Loaded	Features	Number of Positions [x]	Number of Positions [custom]
Samtec Inc. PESC-02-40-02-01-S-VT-LC	Gold	30 Áin	0.76 Ám	Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.497 in	12.62 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	44	Through Hole	Square	Solder	Push-Pull	All
Samtec Inc. PESC-02-40-02-01-T-RA-SD				Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.472 in	12 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	44	Through Hole Right Angle	Square	Solder	Push-Pull	All	Threaded Insert
Samtec Inc. PESC-02-12-02-01-L-VT	Gold	10 çin	0.25 çm	Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.497 in	12.62 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C		Through Hole	Square	Solder	Push-Pull	All		12	4
Samtec Inc. PESC-02-40-02-01-L-VT	Gold	10 çin	0.25 çm	Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.497 in	12.62 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	44	Through Hole	Square	Solder	Push-Pull	All
Samtec Inc. PESC-02-12-02-01-L-RA-SD	Gold	10 çin	0.25 çm	Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.472 in	12 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C		Through Hole Right Angle	Square	Solder	Push-Pull	All	Threaded Insert	12	4
Samtec Inc. PESC-02-12-02-01-S-VT-LC	Gold	30 Áin	0.76 Ám	Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.497 in	12.62 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C		Through Hole	Square	Solder	Push-Pull	All		12	4
Samtec Inc. PESC-02-40-02-01-S-VT	Gold	30 Áin	0.76 Ám	Black	Receptacle	Tin	Female Socket	0.097 in	2.47 mm	Copper Alloy	0.497 in	12.62 mm	Liquid Crystal Polymer (LCP)	105 ░C	-55 °C	44	Through Hole	Square	Solder	Push-Pull	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.88
		10	$ 13.42
		25	$ 11.95
		50	$ 9.75
		100	$ 9.30
